85g 12v 12000rpm 10w planetary brushless dc motor

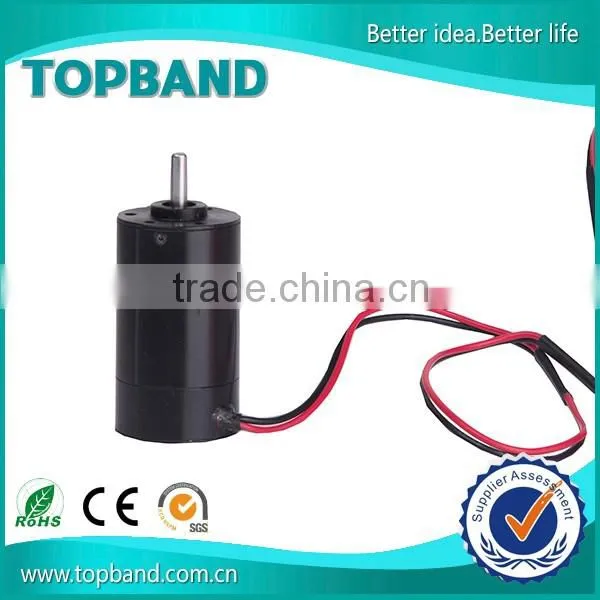

12v brushless dc motor picture
Brief description
1.Low noise, high speed, long lifetime
2.High efficiency: (Low current consumption and low staring voltage)
3.Reliability (Operates more quietly and low inductance)
4.Our company is the first listed company in intellectual control in China
5.We can offer custom-tailor service

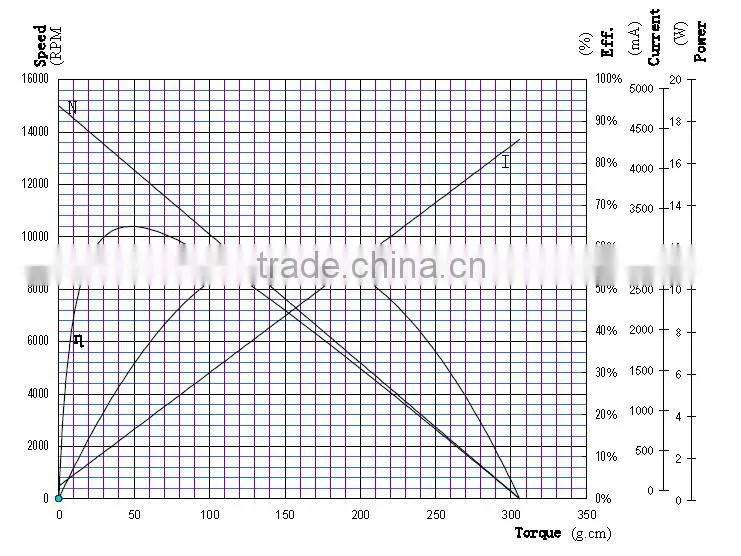

12v brushless dc motor data
| CB2234 | UNIT | ’001 |
| RATED VOLTAGE | V/DC | 12 |
| RATED SPEED | RPM | 12000 |
| NO LOAD SPEED | RPM | 15000 |
| NO LOAD CURRENT | mA | 180 |
| RATED CURRENT | mA | 1000 |
| RATED TORQUE | mN.m | 6 |
| RATED POWER | W | 7.5 |
| MAX EFFICIENCY | % | 70 |
| RESISTANCE PHASE TO PHASE | OHM | 2.8 |
| TORQUE CONSTANT | mN.m/A | 7.6 |
| SPEED CONSTANT | rpm/V | 1250 |
| WEIGHT | G | 85 |
Application Show
Certification Show

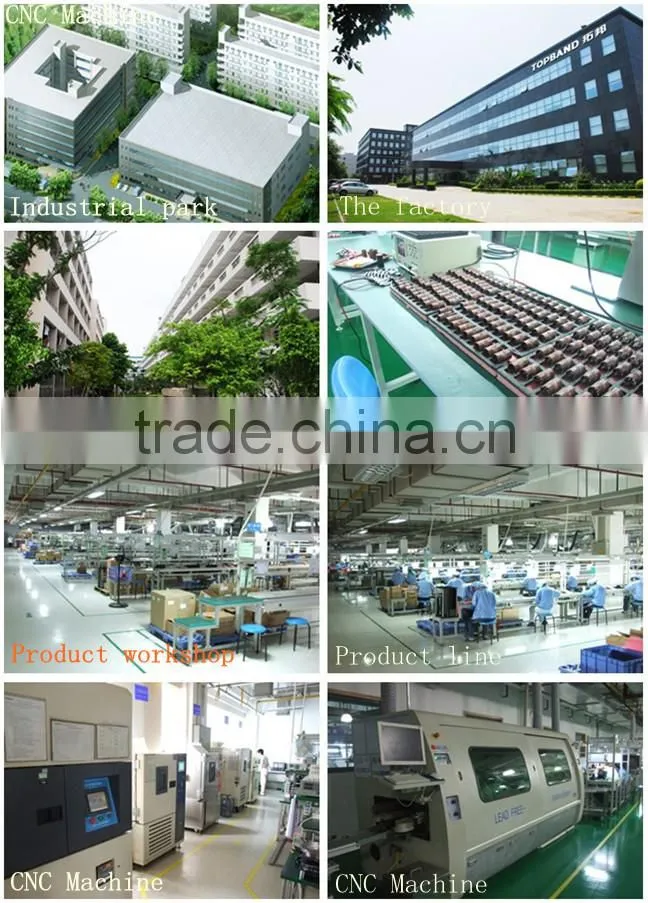

Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,Which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor RC brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
Packing&Shipping
Contact us
Telephone:86-755-27651888-6225
Fax: 86-755-29826901
Website:
Your satisfaction is our ultimate goal!
