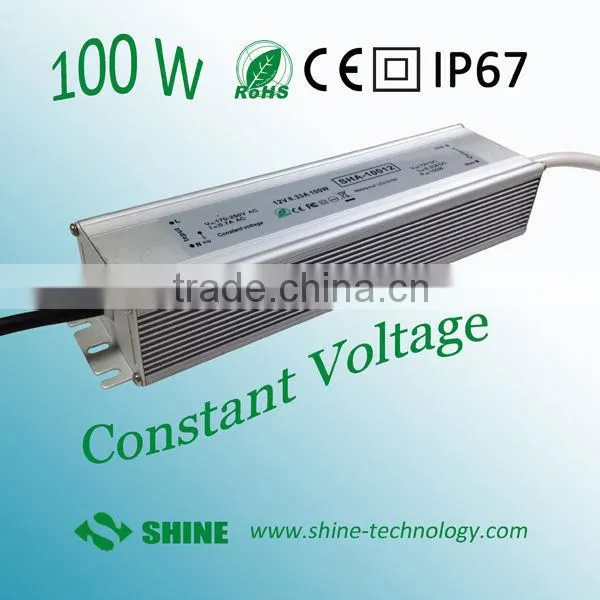

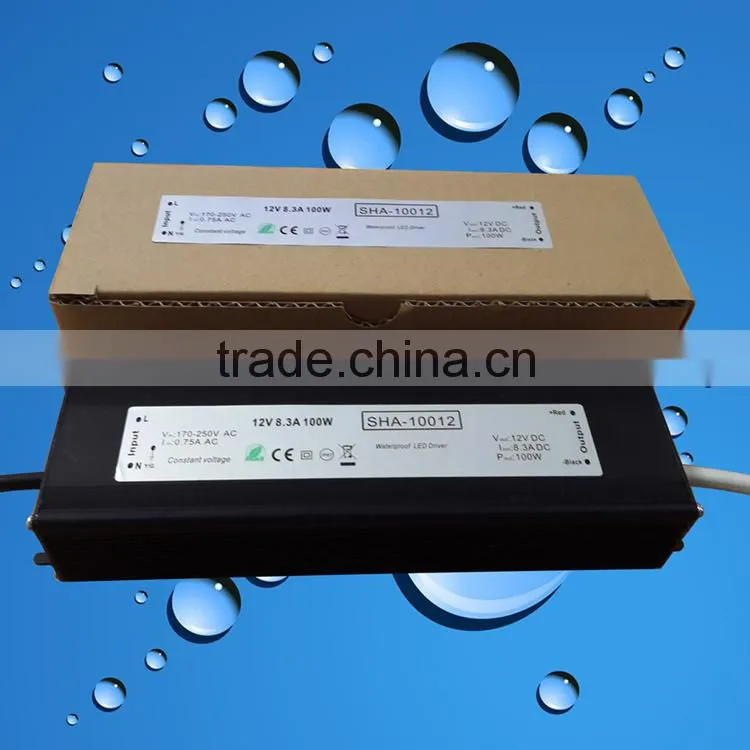

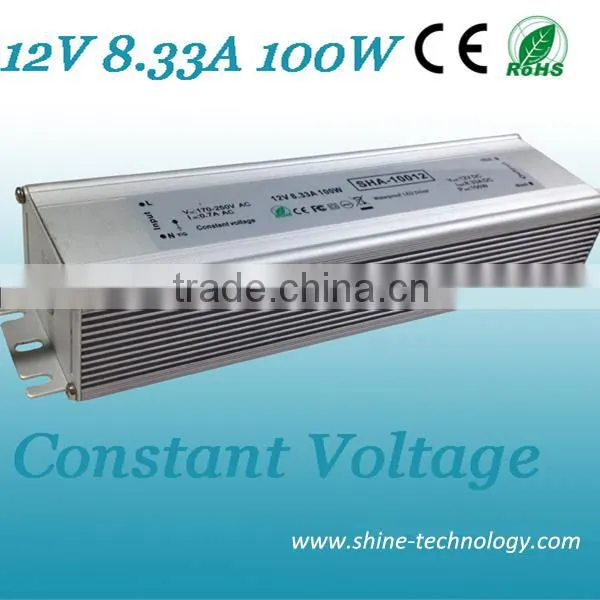

Single output IP67 waterproof LED lighting power supply 100W 12V DC 8.3A
TM: cn1500189133 Skype:y151008
LED lighting power supply
Output 12V/24V 100W
Input 170-265VAC
Waterproof IP67
CE(EMC LVD), RoHS
Constant Voltage Design
Class 2 power unit
Withstand Voltage I/P-O/P: 3kVAC
Protection:Short circuit,Overload,Over voltage,Over temperature
Safety: EN60950
EMC Emission: EN55022 EN61000-3-2 EN61000-3-3
EMC Immunity: EN61000-4-2,3,4,5,6,8,11 EN55024
IP67 design for indoor or outdoor installations
100% full load burn-in test
3 years warranty
Model |
SHA-10012 |
SHA-10024 |
|
Output |
DC Voltage |
12V |
24V |
Rated Current |
8.3A |
4.15A |
|
Current Range |
0~8.3A |
0~4.15A |
|
Rated Power |
100W |
100W |
|
Ripple&Noise |
120Vp-p |
150Vp-p |
|
Set up,Rise time |
500ms, 20ms / 230VAC |
||
Input |
Voltage Range |
170~265VAC 47~62Hz |
|
Efficiency |
85% |
87% |
|
Ac Current |
0.75A/230VAC |
||
Leakage Current |
0.25mA / 240VAC |
||
Inrush Current |
Cold Start <50A at 230VAC |
||
Protection |
Over Current |
110~140% rated output power |
|
Protection Type |
Hiccup mode, recovers automatically after fault condition is removed |
||
Over Voltage |
Hiccup mode, recovers automatically after fault condition is removed |
||
Environment |
Working Temp&Humidity |
-30-60°C 20-90% RH |
|
Storage Temp&Humidity |
-40-80°C 10-90%RH |
||
Safety&EMC |
Safety Standards |
IP67 Approved ,Design Refer to: EN60950 |
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||
Isolation Resistance |
I/P-O/P:>100M Ohms / 500VDC |
||
EMC Emission |
Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3 |
||
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A |
||
Others |
Dimension |
200*45*35(L*W*H) |
|
Packing |
0.49kg, 20pcs/Ctn |
||
| About us |
|
Established in 2003, Shine Technology Limited is a professional manufacturer for waterproof led power supplies, led panel lights and led bulbs. Based on long-term experience in LED field, we have become one of most famous and leading exporter of LED products in China. Further more, due to our committed workforce and strict quality control processes, our products boast both high quality and superior design technology.
Our company’s growing very fast year by year, we now have 6 production lines, with more than 150 workers.
All our products comply with CE and RoHS, selling very well in Europe, North America, Austria, Japan and other Asia countries. Adhering to the ideals of "Sincerity, Mutual Benefit, Constant Innovation and Top Quality", we proudly invite all interested companies to contact us for further information about our company or products. We look forward to forming a strategic partnership with your company in the near future.
|
Certificates
Trade terms
1. T/T West Union, 30% deposit 70% balance before shipment is available for the order upto US$30,000.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
Our services
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. with experienced R&D engineers and strong ability to do ODM projects.
Quality control
1.Assembling: following schedule for quality and lead time. Every order's progress is shown to all related person in software and board every day.
2.Aging test: 48 hours aging test to confirm all quality is OK.
3.Warehouse and shipping:files for item No.,quantity,color temperature,voltage, label, packing etc .All with signature of responsible persons.
Delivery details
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements
Q: 1. Do you accept OEM for the switching power supply?
A: Yes. we do.
Q: 2 .What certification you have for the switching power supply?
A: We have CE, ROHS.
Q: 3.How to Contact Us ?
A: Send your inquiry Details in the below, Click "Send" Now!
