P12 Outdoor Led Wall Display/screen, True Color Outdoor Waterproof LED Billboard

P12 Outdoor Led Wall Display/screen, True Color Outdoor Waterproof LED Billboard thumbnail-1
P12 Outdoor Led Wall Display/screen, True Color Outdoor Waterproof LED Billboard photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
PH20
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number PH20
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 20mm
Screen Dimension Customized size

Specification:

Model

P10 Outdoor LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

10

2

Pixel Composition

1R1G1B

3

LED Encapsulation Type

DIP346

4

LED Chip Sizes

12+13+13(RGB) Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

10000

6

Module Size(MM)

160mm x 160mm (320 x 160 or 320 x 320 is optional)

7

Module Resolution(Dots)

16 x 16 (32 x 16 or 32 x 32 )

8

Cabinet Size(MM)

960 x 960

9

Cabinet Resolution(Dots)

160 x 96

10

Maximum Brightness

12000cd/sqm

11

Before Dot to Dot Correction

8500cd/sqm

12

After Dot to Dot Correction

7500cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

8m - 100m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

Static Constant Current

21

Contrast

3000:1

22

Colors

281 Trillion Billion

23

Gray scale per colors

65536 level

24

Video Frame Frequency

More than 60HZ

25

Refresh Rate

More than 3000 HZ

26

Lifetime

100000 Hours

27

Maximum Power Consumption

800 w

28

Average Power Consumption

400 w

29

Cabinet Weight(without Steel Structure)

30 Kg

30

Compatible Signals(with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

31

Working Voltage

100-240V/AC 50/60HZ

32

Environment Temperature

-20 deg / +60 deg

33

Storage Temperature

–40 deg / +60 deg

34

IP Protection Rate

Front IP68, Rear IP65

35

Screen Surface Evenness

Less than 0.5mm

36

Working Humidity

10-99 percent

37

Storage Humidity

10-99 percent

38

Malfunction Dot Rate

Less than 0.0001

39

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

40

Wind Resistance

Level 12

41

Shock Resistance

Level 8





System connection:

 P12 outdoor led wall display/screen, true color outdoor waterproof LED billboard

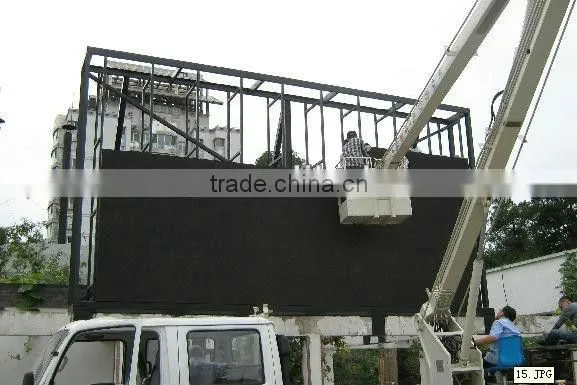

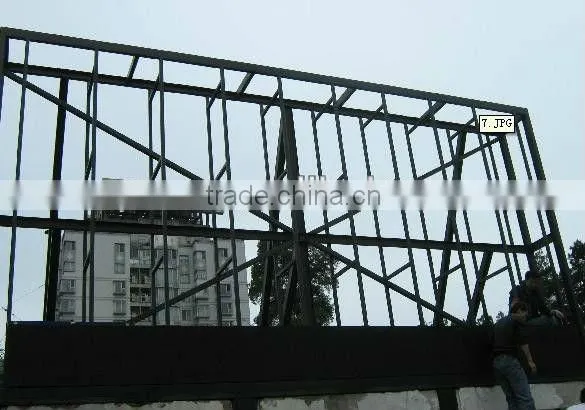

Project Name: Outdoor LED display in Russia;


Product Model: PH10MM DIP;


Project Area: Russia;


Screen Size: 16 sqm;



Time: 2011





P12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboard

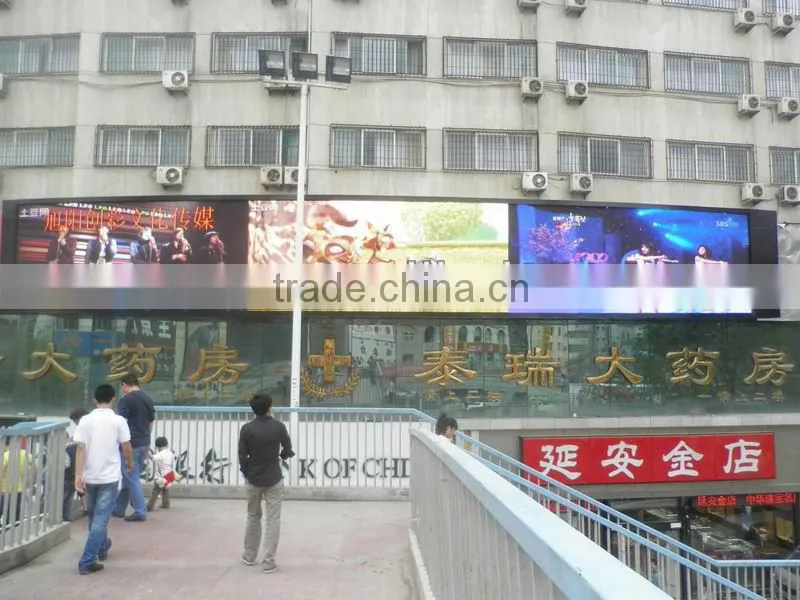

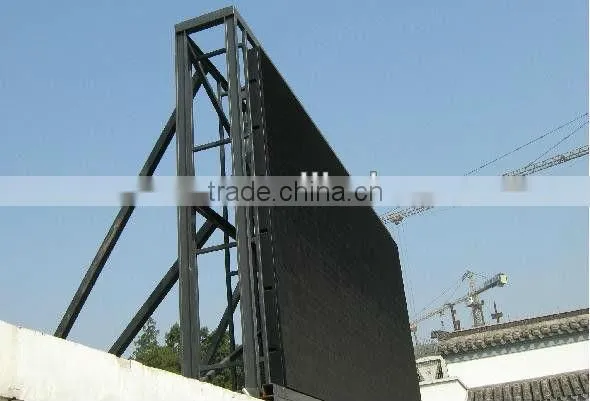

Project Name: Outdoor LED display in Indonesia;


Product Model: PH10MM DIP;


Project Area: Indonesia;


Screen Size: 16 sqm;



Time: 2010







P12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboard

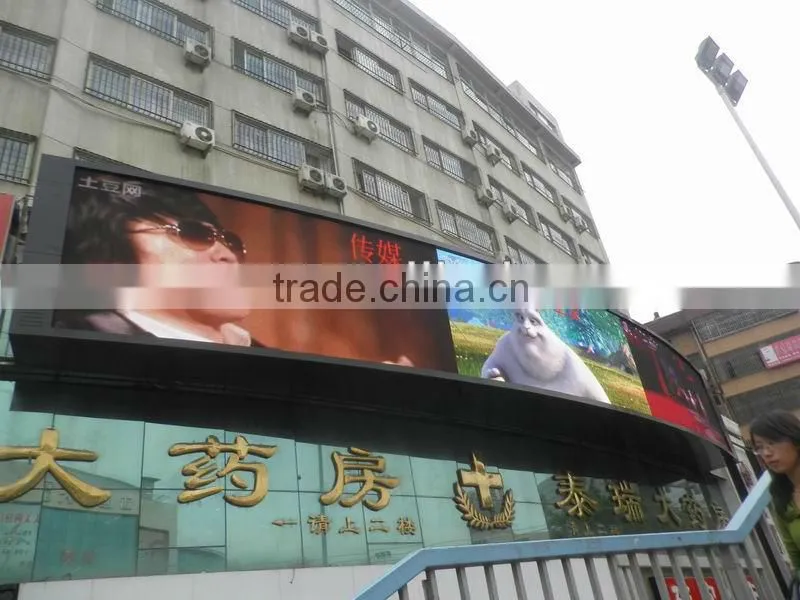

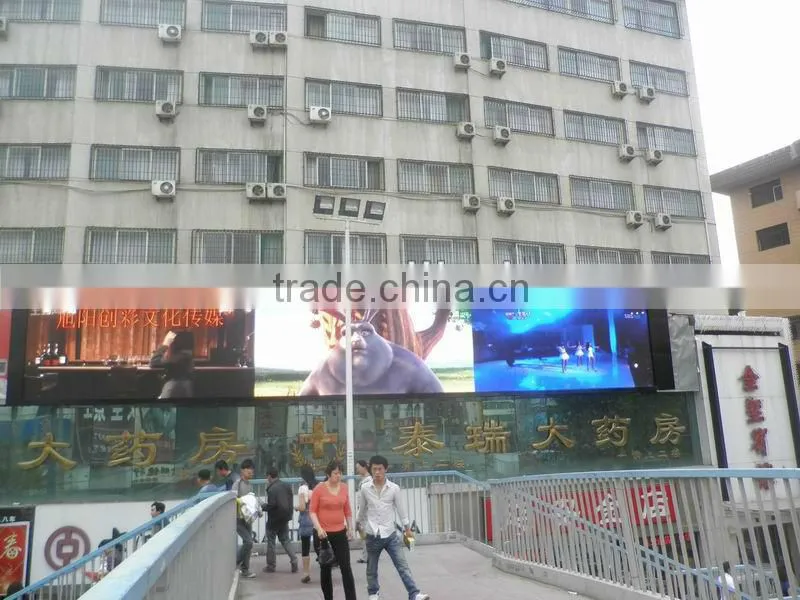

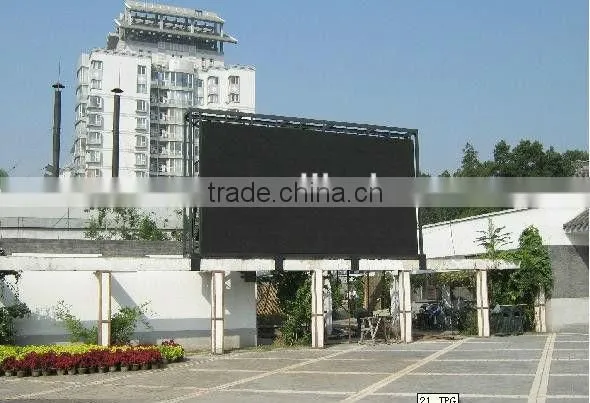

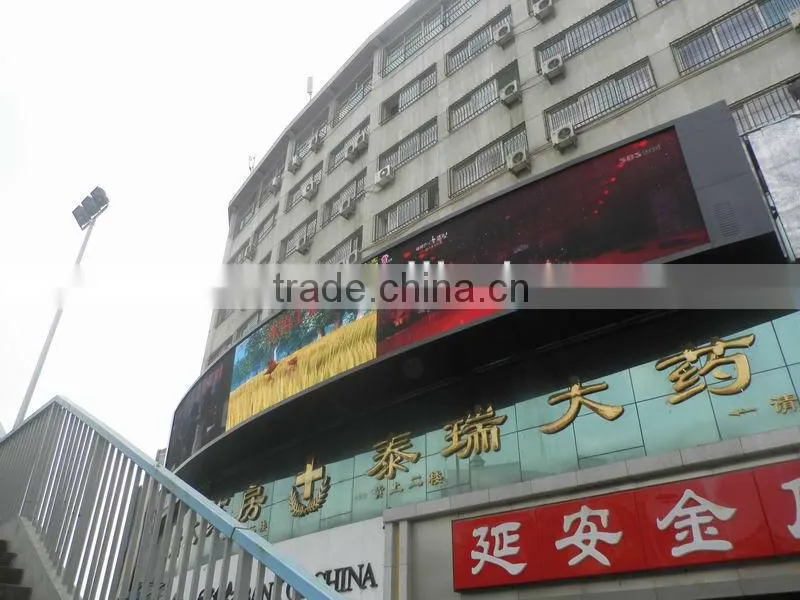

P20mm outdoor led wall display screen for advertising

Project Name: HongKong outdoor LED Display;
Product Name: P20
Pixel Pitch: 20 mm
Screen Size: 20 Sq.m
Installation Address: HongKong

Installation Time: May, 2008.



P12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboardP12 outdoor led wall display/screen, true color outdoor waterproof LED billboard







Packaging



P12 outdoor led wall display/screen, true color outdoor waterproof LED billboard





More types

P12 outdoor led wall display/screen, true color outdoor waterproof LED billboard







Remarks







If you need some samples, please visit our Aliexpress store and buy them online.
