Car Shell Bale And Cutting Machine
1. Product Name:
Car Shell Bale And Cutting Machine
2. Application: Car Shell Bale And Cutting Machine is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, , so as to reduce the cost of transportation & smelting, to speed up furnace charging.
3. Specifications:
No. |
TECHNICAL SPECIFICATIONS |
REMARK |
|||||
1 |
Cutting Cylinder |
Type |
YG560/400-690 |
Nominal Force |
6300kN |
630 ton |
|
Stroke |
690mm |
Quantity |
1pcs |
||||
2 |
Holding Cylinder |
Type |
YG180/120-550 |
Nominal Force |
630kN×2 |
126 ton |
|
Stroke |
550mm |
Quantity |
2pcs |
||||
3 |
Left Cylinder |
Type |
YG200/140-500 |
Nominal Force |
800kN×3 |
240 ton |
|
Stroke |
500mm |
Quantity |
3pcs |
||||
4 |
Right Cylinder |
Type |
YG180/120-490 |
Nominal Force |
630kN×3 |
190 ton |
|
Stroke |
490mm |
Quantity |
3pcs |
||||
5 |
Pushing Cylinder |
Type |
YG240/180-5550 |
Nominal Force |
1200kN |
120 ton |
|
Stroke |
5550mm |
Quantity |
1pcs |
||||
6 |
Chamber size(open) |
5000×2000×800 mm |
|
||||
7 |
Chamber size(closed) |
5000×650×550 mm |
|
||||
8 |
Bale size |
|
650×(300~550)mm |
|
|||
|
300~1000 mm(for customer options) |
|
|||||
9 |
Cutting frequency |
2~3 times/min |
|
||||
10 |
Size of material can be cut (mm) |
Square steel:125×125 Angle Iron:180×180×15 (3 pcs) Round steel:Φ140 I steel:320×132×11.5 Steel plate:50×600 Channel steel:320×90×10 |
|
||||
11 |
Thickness of material can be compressed |
≤4mm |
|
||||
4. Quality: This metal baler shear apply to ISO9001: 2000 standard or CE standard.
5. Service:
1) One year guarantee and lifelong maintenance;
2) If you have any question, please call us directly or send us email.

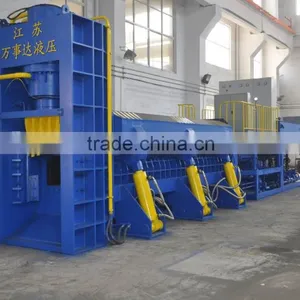

6. Product Show:
7. Producing Flow Chart:
