PCB Connector Fakra for GSM

PCB Connector Fakra for GSM thumbnail-1
PCB Connector Fakra for GSM photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AC
Model Number:
AC-FAKRA-D-PCB
Contact Supplier Request Quote Chat Now
Foshan Sanshui Asian Creation Communications Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AC
Model Number AC-FAKRA-D-PCB

PCB connector Fakra for GSM









Future:

• 11 different mechanical and color codes

• Plastic housing with locking feature and audible clicking noise

• Minimum of 100 mating cycles

• Frequency range of DC - 4 GHz

• Usable on multiple coaxial cables such as RG-58, RF-174, RG-316, RG-178, and other micro-cables

• Available in numerous connector configurations such as straight and right angle for cable as well as edge-launch and PCB designs

Applications

• Global Positioning Satellite

• Satellite Radio

• Vehicular Internet Access

• Remote Vehicle Diagnostics

• Bluetooth

Specifications

1).Electrical

Impedance

50 Ω

Frequency Range

DC - 4 GHz

Model

AC-FAKRA-D-PCB

VSWR



DC - 2 GHz

2 GHz - 4 GHz

Spec requirement

1.40 max

1.50 max

Straight SMB (cable group 1)

1.15 max

1.25 max

Right angle SMB (cable group 1)

1.20 max

1.35 max

Straight SMB (cable group 4)

1.10 max

1.15 max



Insertion Loss

Spec requirement: < .3 dB max from DC - 3GHz
Up to 1 GHz: < .1 dB
Up to 2 GHz: < .2 dB
Up to 4 GHz: < .3 dB

Insulation Resistance

1000 MΩ minimum

Center Contact Resistance

Center contact: < 20 mΩ
Outer contact: < 10 mΩ

Dielectric Withstanding Voltage

> 1,000 VRMS at sea level

2).Mechanical

Mating Durability

100 mating cycles minimum

Plastic Housing Engagement Force

Engagement: = 20 N
Disengagement: = 25 N

Cable Retention Force

Cable group 1: = 110 N
Cable group 4: = 180 N

Coding

12 mechanical and color codings

Material

Plastic Housing

PBT with 15% Glass Fiber

Secondary Locking Clip

PBT with 15% Glass Fiber

Center Contact

Male: Brass
Female: Beryllium copper

Body

Brass

Barrel

Brass

Retainer Ring

Beryllium copper

Ferrule

Copper

Insulator

TFE or TPX

Plating

Center Contact

Gold

Body

cable types Nickel
solder types Nickel, Gold, Tin

Barrel

Nickel

Ferrule

Nickel







Memo: Above specification subject to change without further notice.Please contact us for more details.



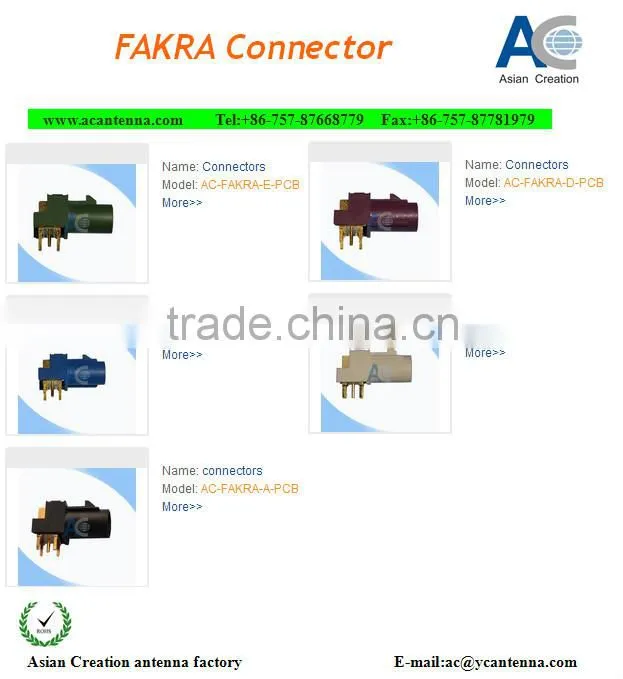

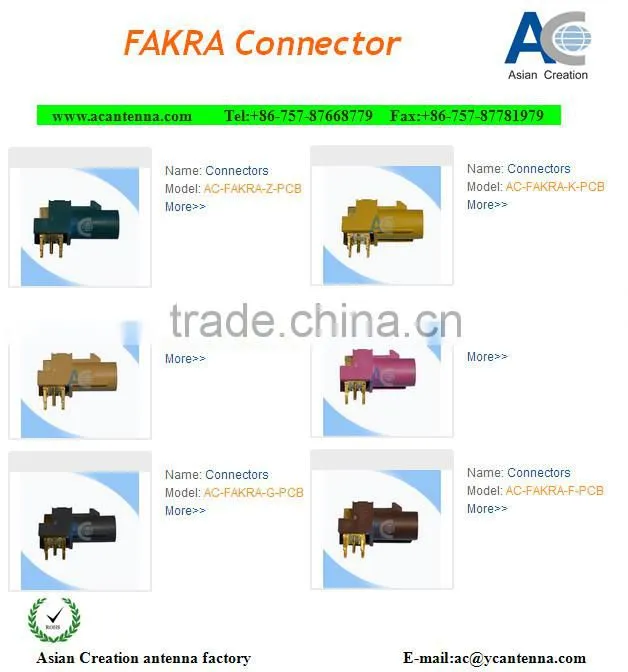

PCB connector Fakra for GSM

PCB connector Fakra for GSM







PCB connector Fakra for GSM






 Our Factory:



PCB connector Fakra for GSM







PCB connector Fakra for GSM



Certificate:



PCB connector Fakra for GSM



The scene of HK global Sources exhibition :





PCB connector Fakra for GSM



 Payment item and Delivery Ways:



PCB connector Fakra for GSM







 PCB connector Fakra for GSM
