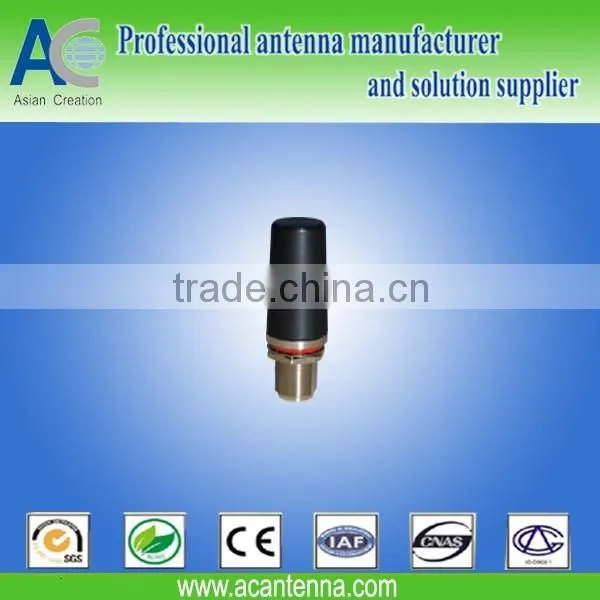

Stud Mount Antennas
Applications:
AP Antenna is designed for the GSM/CDMAspread spectrum communication system.
After optimizing the design and tuning carefully, it has good VSWR.
Features:
The small dimension and light structure make it easy to install.
It also has good shockproof and anti-aging performance
Electrical Specifications | |
Model |
AC-Q9018-50ZDN |
Frequency Range |
890-960/1710-1880MHz |
Band width |
70/ 170MHz |
Gain |
3dBi |
V.S.W.R |
≤2.0 |
Radiation |
Omni |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+70℃ |
Connector |
N female |
Mount way |
/ |
Mechanical Specifications | |
Antenna Dimension |
Φ22×66mm |
Weight |
50g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
