Specifications
1.2.4GHz 18dBi WiFi Directional Panel Antenna2.N female
3.Length: 305mm x 305mm x 20mm
4.small, light, easy taken and easy
This flat panel directional antenna offers high gain in a low profile package. This very durable and weatherproof antenna is made to last a long life. The antenna comes with an industry standard N Female connector to ensure compatibility.
The antenna comes with an easy to install mounting plate. It allows for post mounting or surface mounting to a wall or side of a building .
This high performance low profile, panel antenna offers a powerful 18dBi gain in a compact 305mm x 305mm x 20mm
Technical Specifications
Frequency Range:2.4 GHz
Input Impedance:50 Ohm
V.S.W.R.:<1.5
Gain:18 dBi
Polarization:Vertical, Linear
Max. Input Power:50 W

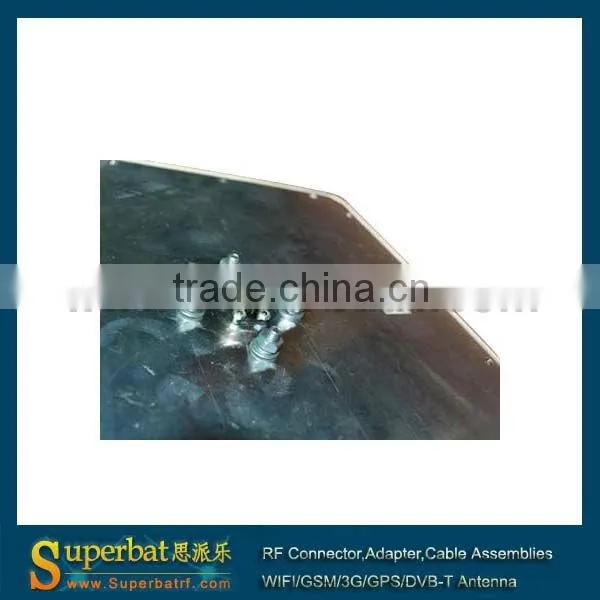

Connector location:Back

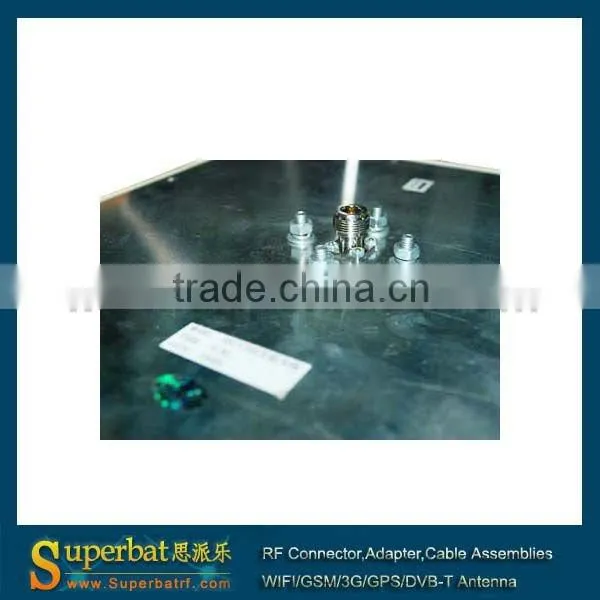

Antenna Connector:Standard N Female Notes:If you choose the RP-SMA/RP-TNC ,the extra adapter or pigtail will be included in the package to fix your devices !If you need other kinds of connectors ,please contact with us at firstly!
Mechanical Specifications
Dimension:305mm x 305mm x 20mm (12†x 12â€x 0.6â€)
Weight:Approx. 1.0kg
Radiating Element Material:CuAg
Reflector Material:Electrolysis Board

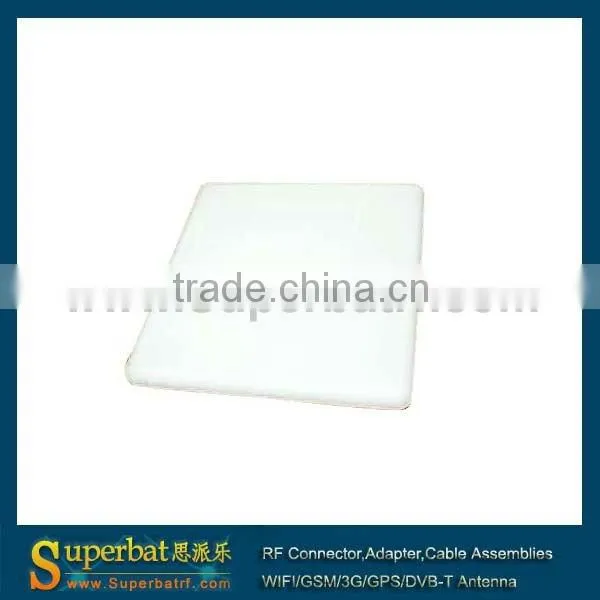

Radom material:ABS
Mounting bracket:120mm x 80mm x 75mm
Horizontal Beamwidth:13 degrees
Vertical Beamwidth:17.5 degrees
PAYMENT WAY
We accept T/T, Western Union, Escrow and Paypal.
SHIPMENT
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
REFUND&REPLACEMENT
1. We can guarantee the product quality within 3 months.
2. If parts cannot work ,we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
