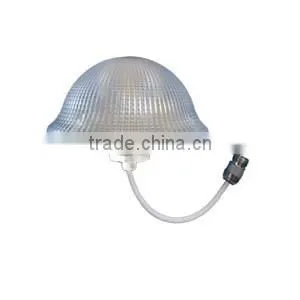

ceiling low price indoor repeater antenna 4G LTE
Applications:
AMPS/GSM/DCS/PCS/UMTS/3G Indoor Coverage .Broad Band
Low VSWR,Small Size, Low Profile, Good

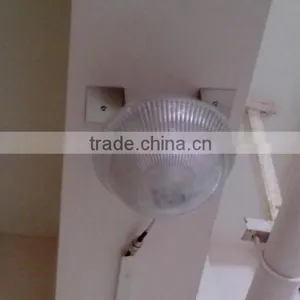

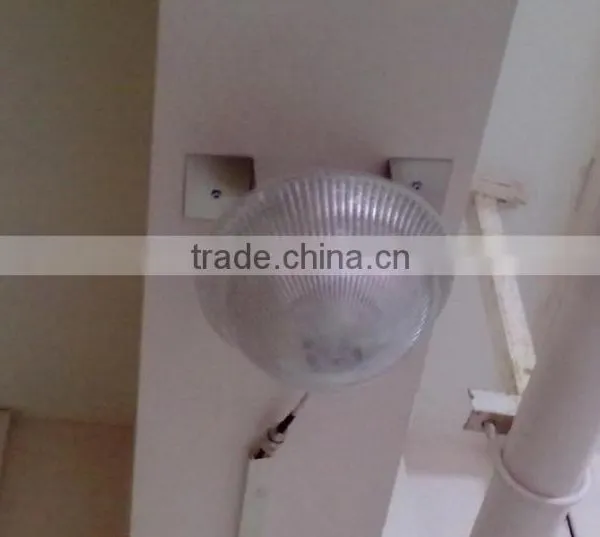

Appearance,Ceiling Mount
Electrical Specifications | |
Model |
AC-D6027I06 |
Frequency Range |
698-960/1710-2700MHz |
Gain |
4/6dBi |
VSWR |
≤ 1.5 |
Polarization |
Vertical |
Horizontal Beam Width |
111 |
Vertical Beam Width |
112 |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
N female |
Operating Temperature |
-40℃ to+80℃ |
Line long |
300mm |
Styles |
RG58U |
Mechanical Specifications | |
Antenna Dimension |
Φ190×85mm |
Weight |
300g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
