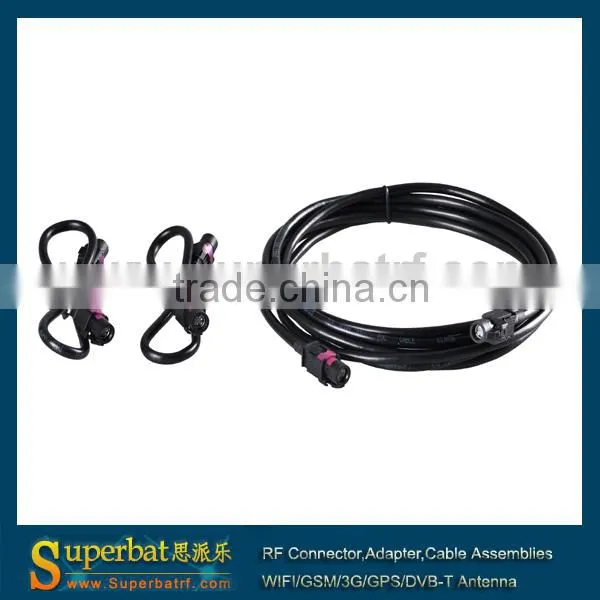

The Tesla Front Camera cable kit (1set)
Product Description:
The cable kits is made of high-quality shielding wire, replicates the original Tesla Model S Amphenol Fakra plugs and jacks.
Connects front and rear cameras to custom PCB then to touchscreen. For Tesla Model S only.
This Tesla Front Canera Cable kits was used for the Front/Rear Camera Touchscreen Switch Kit which was developed by two Model S owners with input from the members of TMC.
This Tesla Front Canera Switch Kit includes the PCB switch itself, mounted in a plastic case, with all components to make it operational, including a wireless remote control that can synced with HomeLink, so switching from rear to front view can be done with via the touch screen. The kit also includes an OBD2 connector that offers a simple way to provide the necessary 12v power and ground connections to the switch.
The cable kit set to connect the front and rear cameras to the PCB switch and the PCB switch to the touchscreen.
one long cable (300cm cable) for connecting the front camera to the switch and two short cables (30cm) for connecting the rear camera to the switch and the switch to the touchscreen cable.

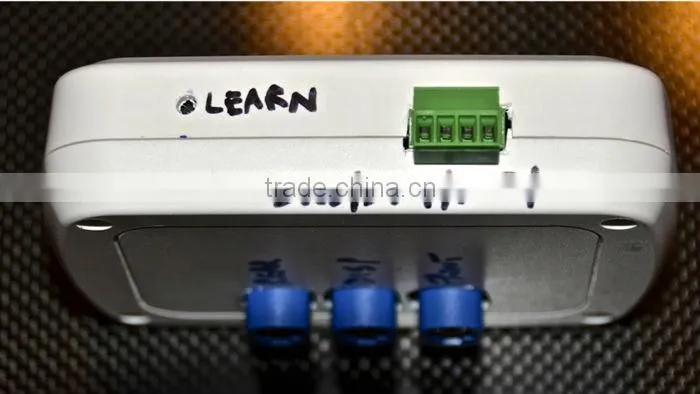

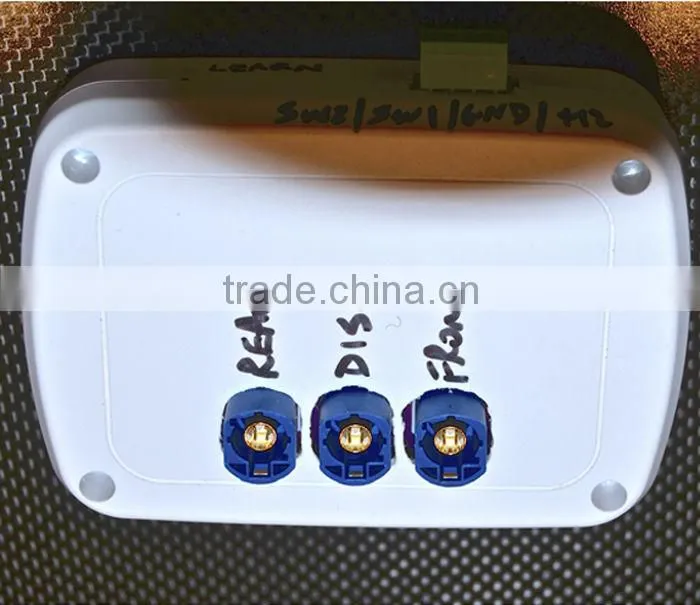

The photos show a hand-lettered prototype for the PCB switch case:

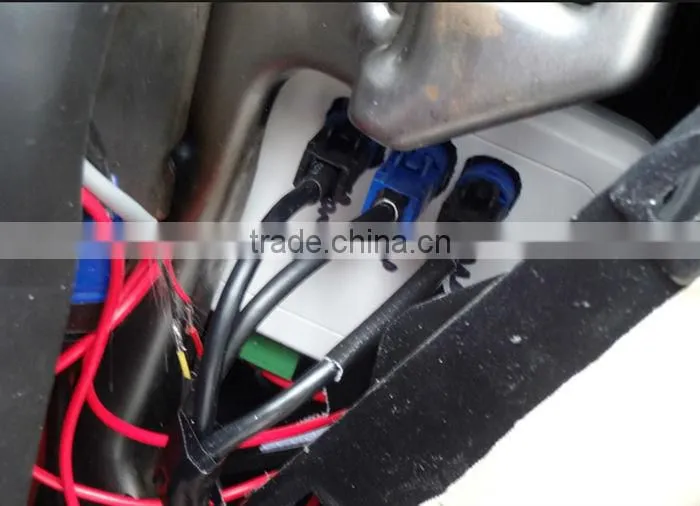

It should be assemblied like this:
Package includes:

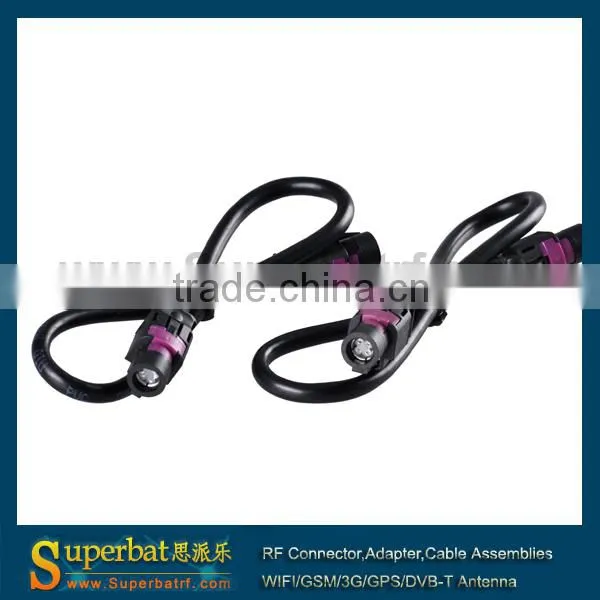

2pcs Pigtail cable Fakra female to Fakra female straight 4pole, Dacar 535 cable, 4 pole, 30cm long, for bridge connection of rear camera to custom PCB and PCB to touch screen with 30cm

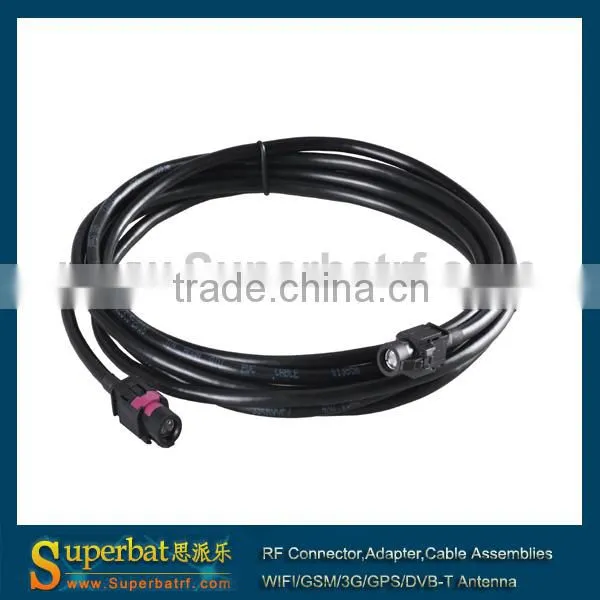

1pcs Pigtail cable Fakra female to Fakra female straight, Dacar 535 cable, 4pole, 300cm long, for connecting front camera to custom PCB with 300cm
Notes:
The two ends of Fakra Female connector is exactly the same as conectors as showed in the picture,and it has special way to make the cables!
