Specifications
Bottle blowing machine:1.Years experience
2.Cavity: 2 cav
3.Capacity: 1500-1800 BPH
4.Heating uniformly

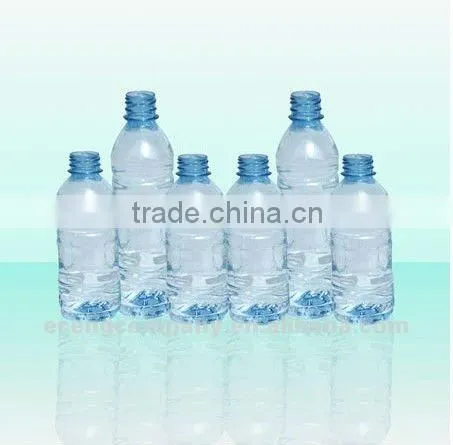

Water bottle blowing machine
Type : YC-2L-2
Technical Parameter
|
Main machine (blower + oven) |
Model type |
YC-2L-2 |
Product Spec |
Max. product volume(L/cav) |
2 |
Max. preform neck size(mm) |
50 |
|
Max. product diameter(mm) |
90 |
|
Max. product height (mm) |
360 |
|
Cavities |
2 |
|
Blow molding part |
Die force (KN) |
120 |
Die stroke (mm) |
120-210 |
|
Max. mould sizemm |
390*345 |
|
Mould thickness |
120-160/220-270 |
|
Mould spacingmm |
120-170 |
|
Max. pulling strokemm |
340 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
300 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
|
Blow air pressure consumption (1tr/min) |
350 |
|
Outputpcs/h |
1500-1800 |
|
Machine sizeLxWxH(m) |
1.46*0.58*1.8 |
|
Package size LxWxH |
1.66*0.77*2.12 |
|
Machine weight(KG) |
650 |
|
Oven |
Temperature graderate |
6 |
Heating timeS |
90-200 |
|
VoltageV |
220 |
|
FrequencyHZ |
50 |
|
Total powerKW |
6.3-10.3 |
|
Actual power consumptionKW |
≤5 |
|
Oven Size LxWxH |
1.35*0.55*1.15 |
|
Package size LxWxH |
1.55*0.75*1.35 |
|
Oven weight (KG) |
300 |
Auxiliary Machine
Auxiliary device |
Required Spec |
YC-2L-2 |
High pressure air compressor |
Operation air pressure |
3.0 Mpa |
Air displacement |
0.75 m3/min |
|
Power |
9 Kw |
|
R.P.M |
800 |
|
Weight |
460 Kg |
|
Dimension |
1.86m*0.9m*1.4m |
|
|
Air filter (oil-water separator ) |
Filter precision |
≤5ppm |
Weight |
28Kg |
|
Dimension |
0.24m*0.26m*0.73m |
Semi-automatic blow moulding machine
- Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.Its the revolutionary product of industrial control.
- High responsiveness pneumatic components,action timely and precisely
- Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation
- Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.
Technology Advantage
l Special design,high rigid compound die structure
l Wide adaptability, suitable for every type mould thickness
l Adjust convenience
l No mould rolling out
l More energy conservation,no need much air supply
l High burnish principal axis, with very precise polishing, light action and low noise.
l Short mould stroke,quick action
l All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
l Hig dead-weigh, ensure the steady during the opeartion

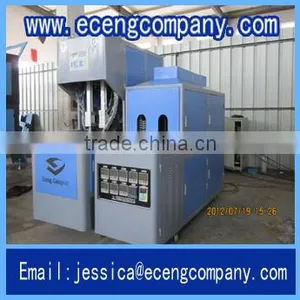

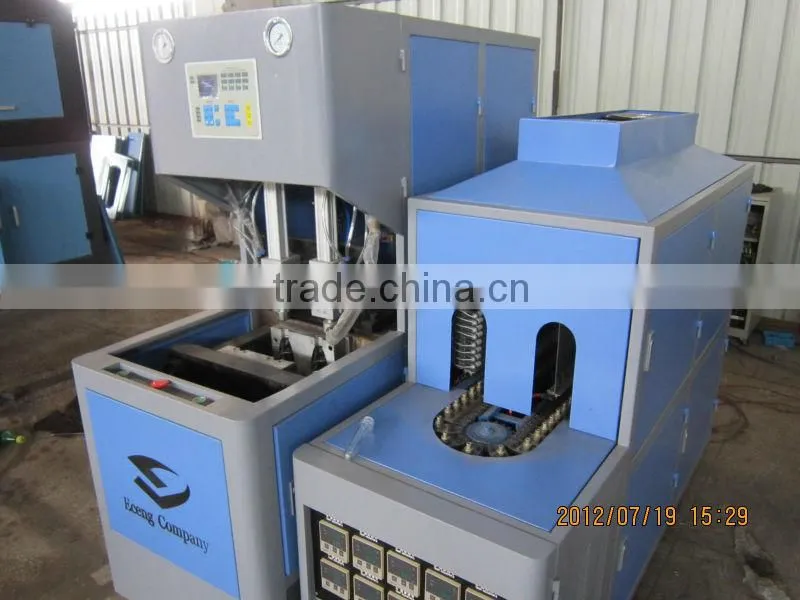

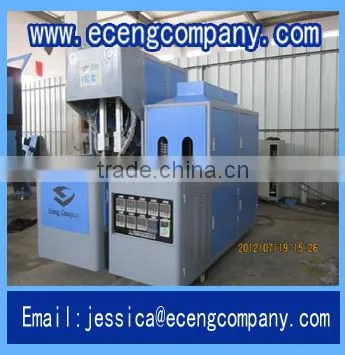

Machine Pictures
For more detailed informantion and operation video please contact me.
