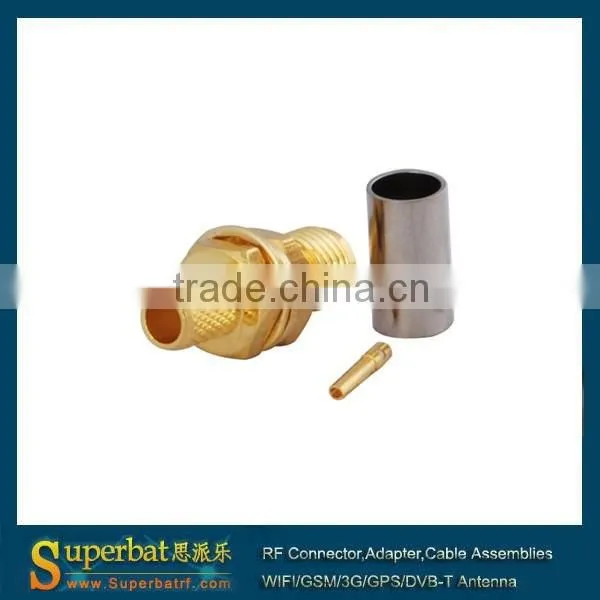

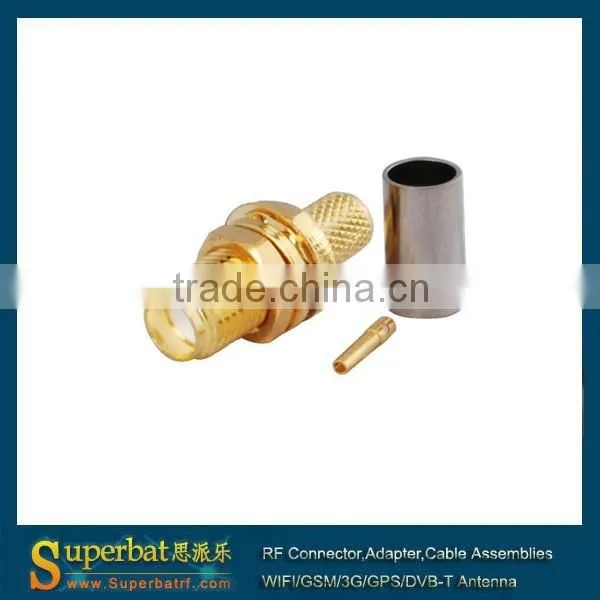

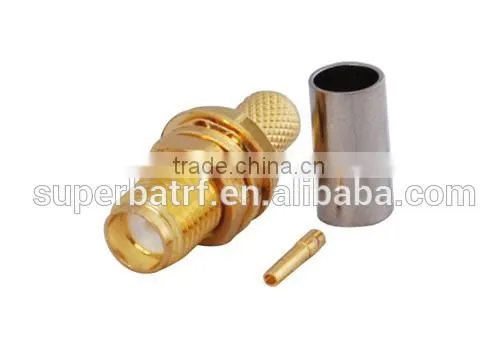

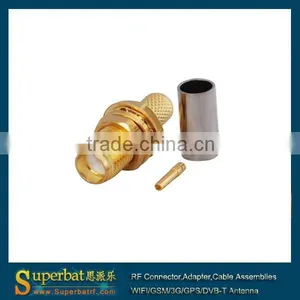

SMA Crimp Jack bulkhead connector for LMR195
Model: S01-BHL19-11BS00
SMA connectors , short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 4GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 4GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.
Description :
| Product Series: | SMA |
| Product Type: | Cable mount |
| Application: | Crimp |
| Attachment/Affixment: | Bulkhead |
| Body Plating: | Goldplated |
| Body Termination: | Crimp |
| Cable Type: | RG58, LMR195,RG400,RG142 |
| Connector Body Style: | Straight |
| Connector Material: | Brass |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Gender: | Jack |
| Impedance: | 50 Ohm |
Specifications :
| Temperature range : | -55 - +155°C |
| Vibration : | 98m/s2 (10 - 2000Hz)10g |
| Frequency range : | DC -12.4GHz(Semi-Rigled Cable DC-18GHz) |
| Working voltage : | 335V r.m.s |
| Contact resistance : | a) Center contact: ≤3mΩ |
| b) Outer contact: ≤2.5mΩ | |
| Insulation resistance : | ≥5,000mΩ |
| VSWR : | a) ST: ≤1.10+0.02f;≤1.07+0.018f |
| b) RA: ≤ 1.20+0.03f; ≤ 1.17+0.02f | |
| Durability (mating) : | ≥500 times |
| Applicable Standards : | a) IEC 60169-15 ; b) MIL-C-39012 ; c) CECC 22110 |
| Insulator: | PTFE (Teflon) |
| Impedance: | 50 Ohm |
Notes : When you comparing our SMA connectors to others,please notes that our connecctors are good quality. Our white insulator is 100% Teflon,which is resistant to elevated temperatures .
We provide the custom services for the RF connectors.
Other sma connector series we have :
SMA Cable mount:
SMA PCB:
SHIPPING
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
5. Sample is available.
PAYMENT WAY
We accept T/T, Western Union, Escrow and Paypal.
WARRANTY
1. We can guarantee the product quality within 3 months .
2. If products cannot work,refund or exchange is available.
We provide comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
Company Informaion
We Superbat Company specialises in the sale of RF coaxial connectors,adapters, cable assemblies, 4G/3G/GSM/WIFI/GPS antennas etc, and especially provides custom services for these products. We win "Xtar" and "superbat" trademark.
We own a mature and professional Sales Team and Technical Team,and set up a good and long-term relationship with over 50 domestic manufactures of coaxial connector and antenna.We have served for over 86000 customers from more than 120 countries on ebay, alibaba and our online shop.We have achieved great admiration and we are widely trusted at home and abroad.
Our mission is: Provide an Internet-based integrated supply chain for small and medium-sized users and retailers of RF and microwave components in the world.
