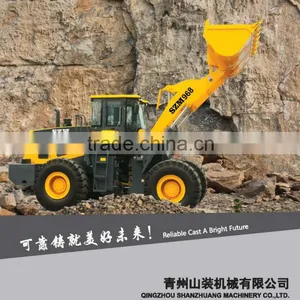

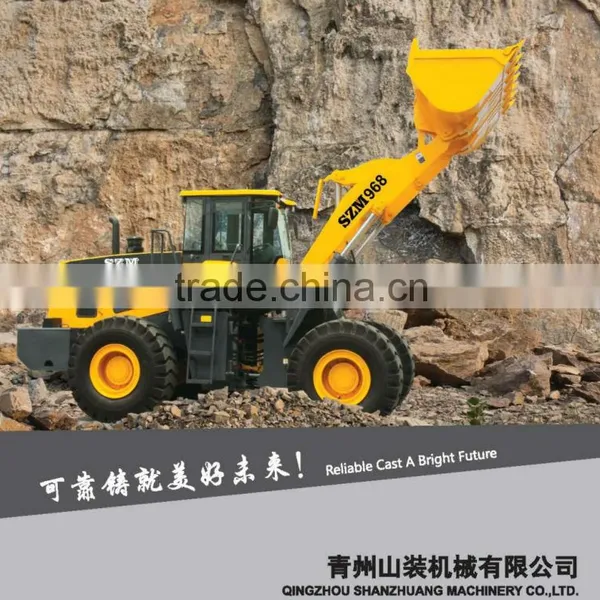

Wheel Loader 980 CAT Engine ZF Gearbox Big Wheel Loader 968 With CE Made in China

Wheel Loader 980 CAT Engine ZF Gearbox Big Wheel Loader 968 With CE Made in China thumbnail-1
Wheel Loader 980 CAT Engine ZF Gearbox Big Wheel Loader 968 With CE Made in China photo-1
US$ 41,000 - 48,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
szm
Model Number:
968
Contact Supplier Request Quote Chat Now
Qingzhou Shanzhuang Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name szm
Model Number 968
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 7920*3050*3400mm
Rated Load 6000kg
Certification ce
Warranty long time

Specifications

1,bucket capacity:3.5CBM
2,rated load:6,000kg
3ZF Gearbox Big Loader
4,joystick,hydraulic pilot control
5.Engine: CAT162kw

968 CAT Engine ZF Gearbox Big Loader



Standard Configuration
CAT Shangchai Engine(Same as CAT 3306),

ZF WG180 Gearbox, Pilot Control, Joystick, GRAMMER Luxury Seat,

 "VDO" Pannels, 26.5-25 Vacuum Tyre, A/C, CD



Optionals
Anti-roll frame

ZF W200 Gearbox





Specification
Performance
Rated Loading: 6,000KG
Overall Weight 17,900KG
Overall Dimension (LXWXH): 7,920X3,050X3,400MM
Rated Bucket Capacity: 3.5CBM
Maximum Tractive Force: 152KN
Maximum Breakout Force: 170KN
Maximum Grade Ability: 30°
Maximum Dump Height: 3,150MM
Maximum Dump Reach: 1,250MM
Minimum Turning Radius: 6,640MM



Engine
Model: Shangchai SC11CB220G2B1(CAT licensed)
Type: Inline water cooling dry cylinder injection
No. Of Cylinder-Bore/Stroke: 6-121X152MM
Rated Power: 162KW@2,200RPM
Maximum Torque: 844N.M
Min Fuel-consume Ratio: 230G/KW.H



Transmission System
Torque Converter: YJ375
Gearbox Model: WG180 (ZF Technology)
Power shift normally engaged straight gear
Gear Shift: 4 forward shift 8/15/23/38 and 4 reverse shift 8/15/23/38
Maximum Speed: 38km/h



Drive Axles
Main Reducing Spiral: Bevel gear grade 1reduction
Decelerating Mode: Planetary reduction,grade 1
Wheel Base: 3200MM
Wheel Tread: 2250MM
Minimum Ground Clearance: 450MM



Hydraulic System
System Working Pressure: 18MPa
Boom Lifting Time: 5.95±0.2s
Total Time: 10.95±0.5s
Fuel Tank Capacity: 300L
Function Of Leveling Automatically: Yes



Brake System
Service Brake: air over hydraulic disc brake on 4 wheels
Parking Brake: manual parking brake



Tyre
Type: 26.5-25
Front Tyre Pressure: 0.4Mpa
Rear Tyre Pressure: 0.35Mpa



Delivery items

1.Delivery time:within 20-30days after receiving the 30%deposit.

2.The shipment port:Qingdao.

3.Manufacturer name:SZM shanzhuang machinery.

4.Minimum Order Quantity :1 set (consider freight)

5.payment terms: --T/T :30% deposit,70%balance before shipping

6.packing:Nude packing.



Qing Zhou Shanzhuang Machinery Co., Ltd. (SZM) is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.



We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.



Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc.



If you're interested in wheel loaders, please feel free to contact with us.

We'll send you our quotation immediately, including PRICE, PICS, SPECIFICATION.
