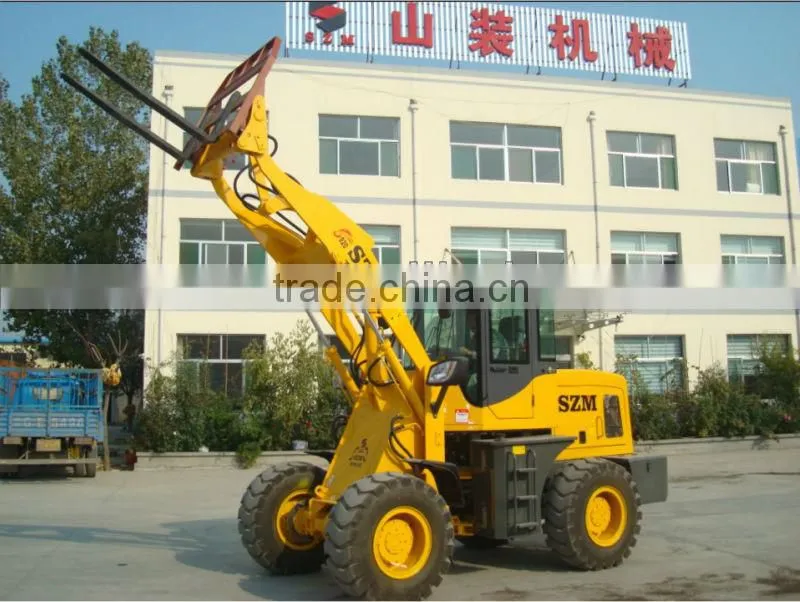

Help CenterJoystick Front End Wheel Loader 928
Related Products
-
Mini Tractors With Front End Loader Small Wheel Loader 928US$ 1 - 1MOQ: 1 Set -
China New Brand Loaders Qingzhou SZM 928 Wheel LoaderUS$ 1 - 1MOQ: 1 Set
-
Small Wheel Loader ZL20 Quick Hitch High Quality and Low Price Mini Wheel Loader 926 With CEUS$ 300 - 28,000MOQ: 1 Set
-
ZL-16 Mini Compact Wheel Loader With CENegotiableMOQ: 1 Set
-
China Qingzhou SZM New Design Front End Loader 928 Wheel Loader With CUMMINS Engine 92kw DEUTZ Engine Joystick Quick HitchNegotiableMOQ: 1 Set
(SZM) Qing Zhou Shanzhuang Machinery Co., Ltd. is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.
We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.
Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc.
If you're interested in wheel loaders, please feel free to contact with us. We'll send you our quotation immediately, including PRICE, PICS, SPECIFICATION.
Fully hydraulic CE powerful performance Brand new wheel loader 928 by shangdong pilot control
1,bucket capacity:1.3m3
2,rated load:2000kg
3,optional:JOYSICK,A/C,CUMMINS
4.Hydraulic quick change
5.adjustable seat
| Specification | overall weight(kg) | 5700 |
| L×W×H(mm) | 5980×2080×2850 | |
| rated bucket capacity(m3) | 1.3 | |
| Rated load(kg) | 2000 | |
| Maximum dump height (mm) | 2850 | |
| Wheelbase | 2480mm | |
| thread | 1670mm | |
| Max breakout force | 70KN | |
| Total time | 11.3s | |
| Bucket indicator | Yes | |

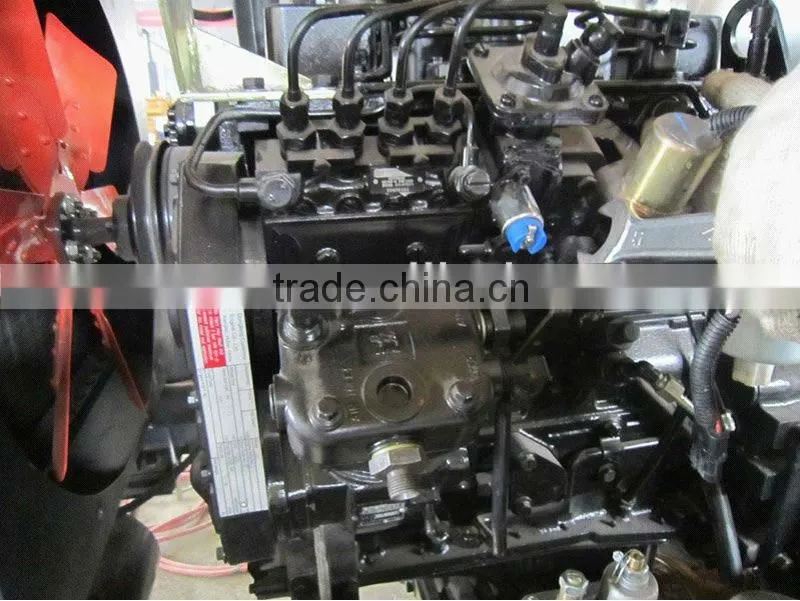

| Engine | Model | 4BT3.9-C100 |
| optional | YTR4108G92 | |
| Type | Vertical, In-line , Water cooling, four-stroke diesel engine | |
| Rated power(kw) | 75kw/60KW | |
| Rated speed(r/min) | 2400 | |
| Transmission system | Model of torque converter | YJ280 |
| pattern | 3 element single stage | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Max travel speed | 24km/h | |
| Hydraulic system | Working pump | CBF25 |
| DISPLACEMENT | 25ml/r | |
| Working pressure | 16Mpa | |
| Distribution valve | DF20.2C | |
| Axle | Main reducer pattern | Arc taper gear, moderation of first grade |
| Pattern of wheel reduction | Planet gear moderation of single | |
| Steering system | Type | hydraulic steering |
| Min turning radius(mm) | 5000 | |
| Max turning angle | 35°±1 | |
| Tires | Standard tyres | 16/70-20 |
| Break system | Service brake type | Air assisted oil disc on four wheel |
| Parking brake type | Soft axle control, outside bunch drum type |
1.Equipped with Dongfeng Cummins ,Weichai,Luotuo,Huafeng engine
2. Strengthened and reliable transmission, drive axle
3. Optimized and choose the best quality Hydraulic component which increase the productivity ,sealing reliability
4. Articulated frame with box structure
5. Option attachment: wooden fork, pipe/pallet fork, grass fork, rock bucket, bigger bucket, long arm etc
