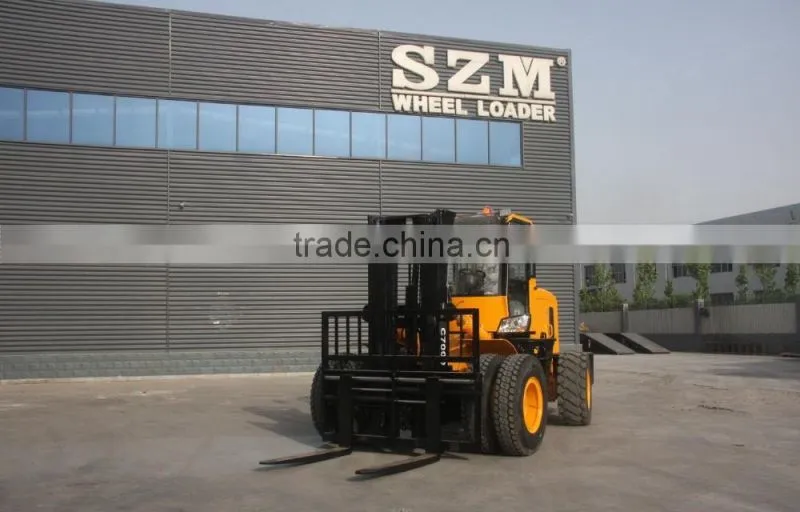

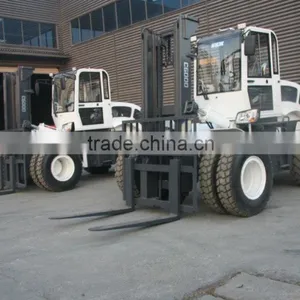

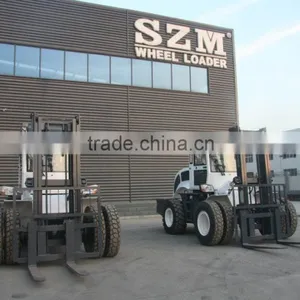

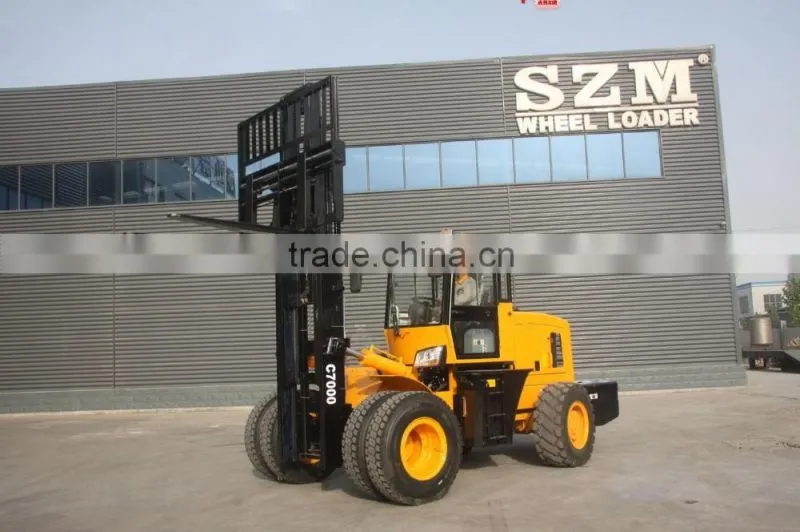

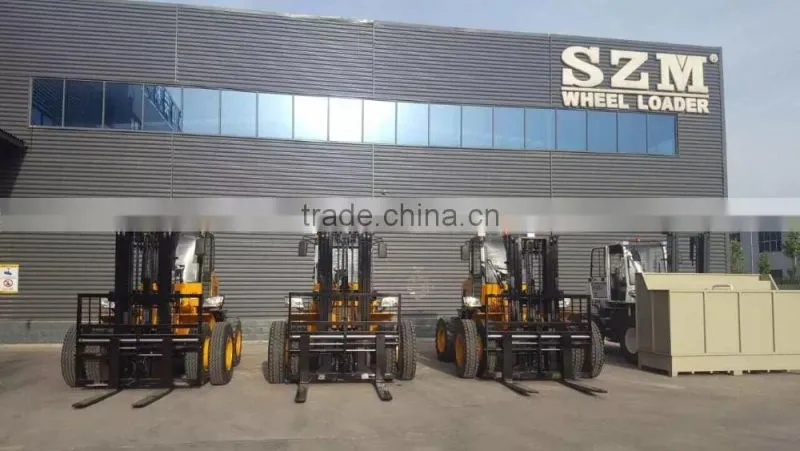

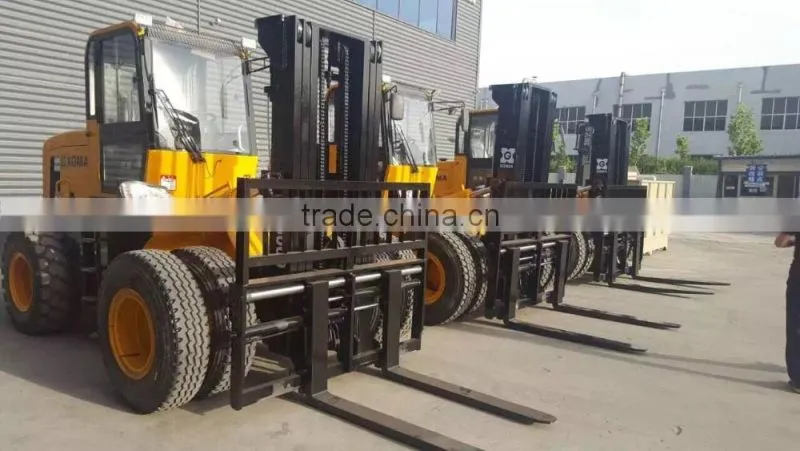

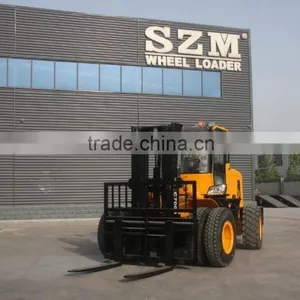

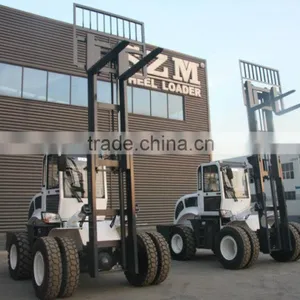

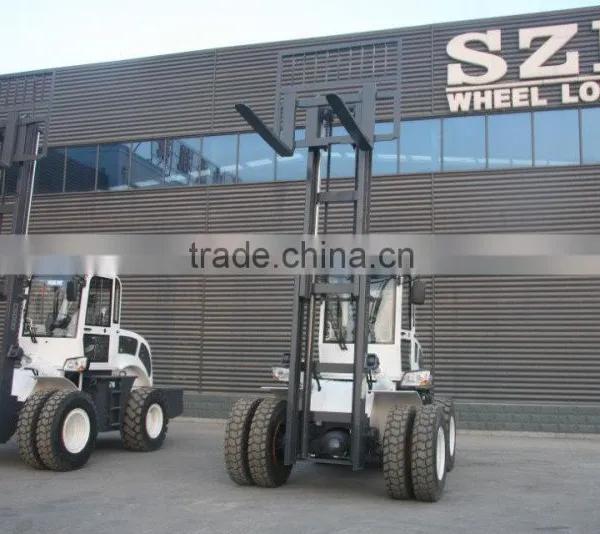

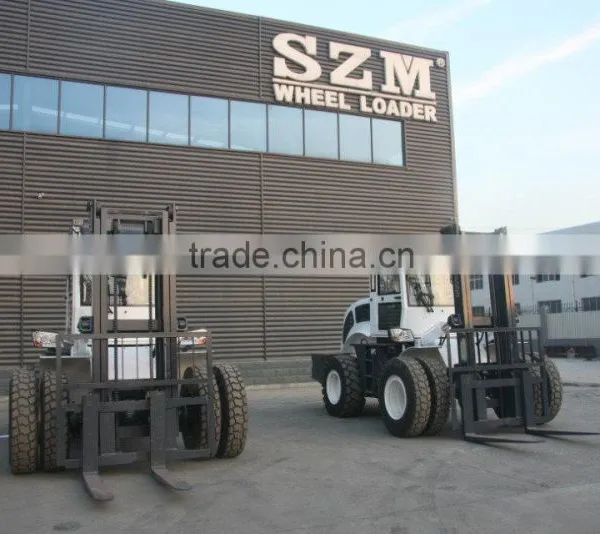

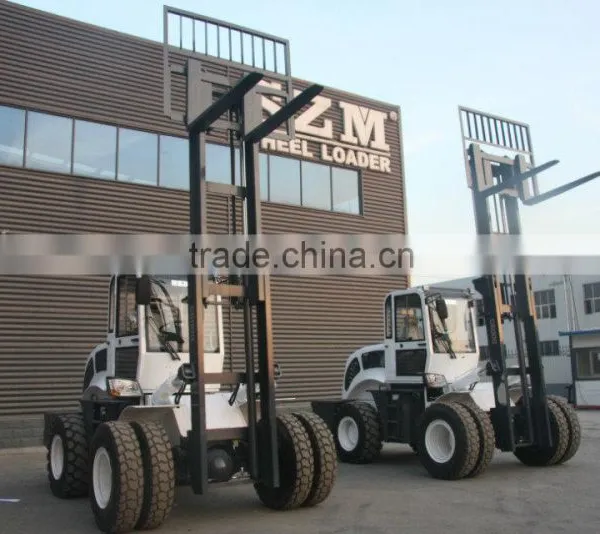

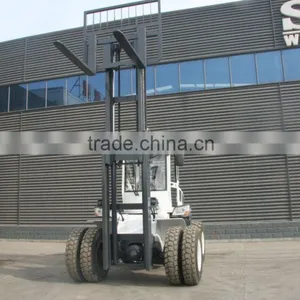

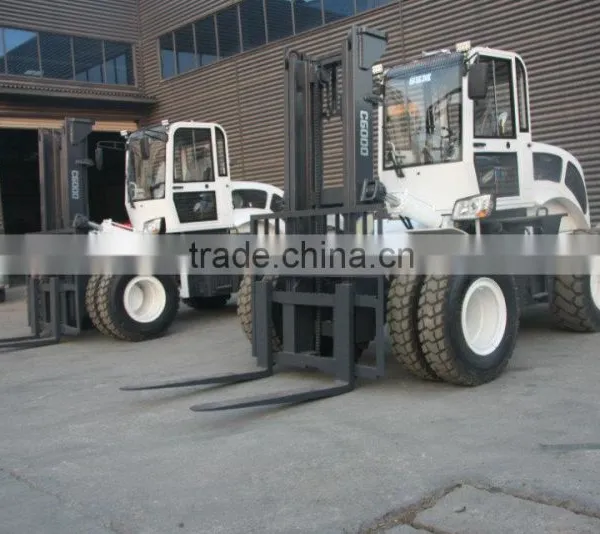

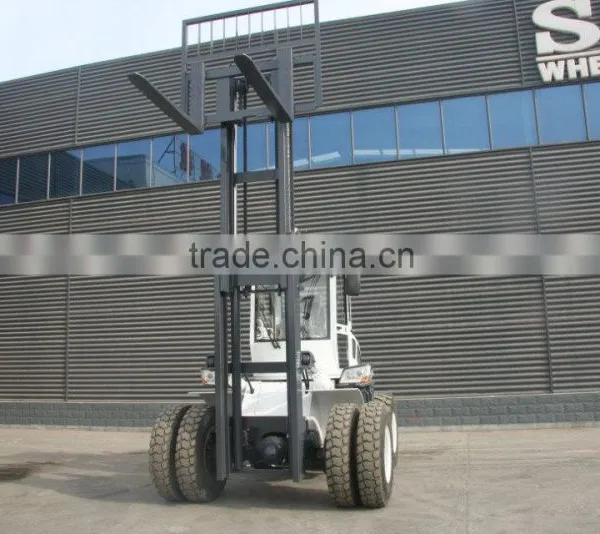

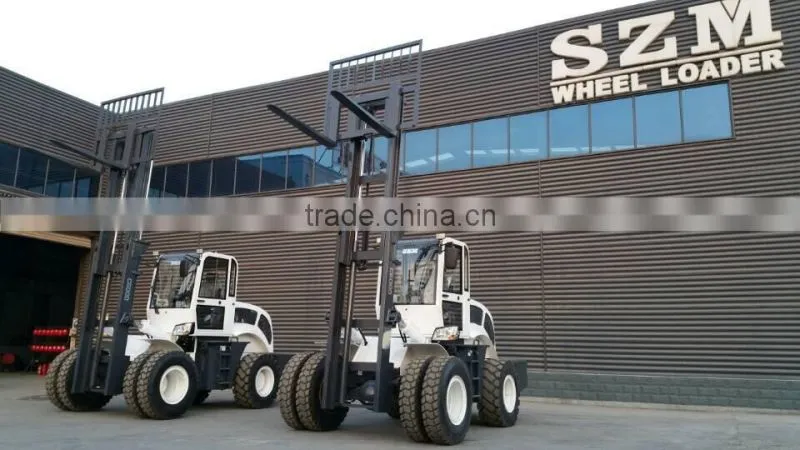

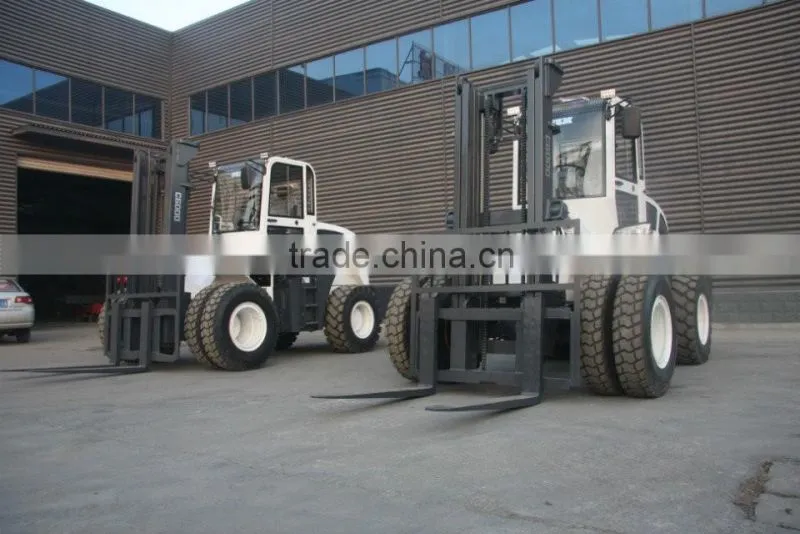

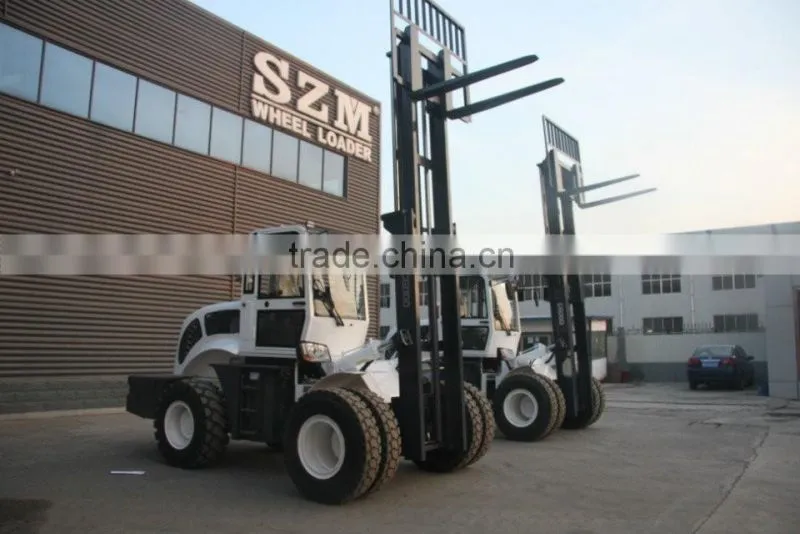

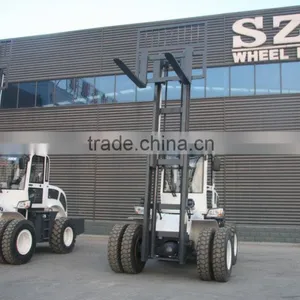

Help CenterAll Rough Terrain Forklift With 6 Tons Rated Loader Terrain Forklift
Related Products
-
SZM Terrain Forklift With 5.5 Tons All Rough Terrain ForkliftUS$ 19,500 - 19,500MOQ: 1 Set -
SZM UAV for Testing and VideoUS$ 9,000 - 9,000MOQ: 10 Sets
-
SZMUS$ 9,000 - 9,000MOQ: 10 Sets
-
SZM WT-600 Crawn Track Robot for TransportUS$ 1,000 - 10,000MOQ: 10 Units
-
4 Tons All Terrain Forklift,all Rough Terrian ForkliftUS$ 11,600 - 11,600MOQ: 1 Set
Performance:
l Terrain forklift is used at the airport, docks, station and other poor road conditions for material distributions. it has good maneuverability, reliable ability.
l Terrain forklift runs faster than ordinary forklift, their mobility is obvious with high engine power and terrain performance.
l They apply to the mountains, plateaus pavement, snow jobs, construction sites, mines, orchards pastures, rough roads and mining enterprises.
l The product can use Yuchai 4105 engine(super-charged)and Cummins engines, it can meet different customers at home and abroad.
Features:
1. All-hydraulic steering system, greatly reduce operator fatigue; using transverse cylinder steering mechanism with reliable and compact structure.
2. Digitized intelligent traffic monitoring system allows the operator to easily get forklift operation information, make forklift operation to achieve full control.
3. Humanization design, using multifunction steering ,European-style instruments, and equipped with car cigarette lighter; luxurious seat with seat belts, joystick makes it easy, safe ,flexible to operate.
4. Lengthened and widened wheelbase and wheel track , get better stability, more suitable for terrain conditions,
5. Air filter with vacuum alarm, double filtration; external high exhaust muffler, plus a protective shield against hot, ensure security
Specification:
Item |
Unit |
C6000 |
|
Rated Load |
kg |
6000 |
|
Length |
With Fork |
mm |
5800 |
Without Fork |
mm |
4500 |
|
Width |
mm |
2500 |
|
Height |
mm |
3015 |
|
Max lifting Height |
mm |
5250 |
|
Wheel Base |
mm |
2300 |
|
Front Over hang |
mm |
430 |
|
Front Wheel tread |
mm |
1950 |
|
Back Wheel tread |
mm |
1700 |
|
Ground Clearance |
mm |
320 |
|
Max. lift Height |
mm |
4000 |
|
Operating Weight |
kg |
6700 |
|
Max. Lift Speed |
mm/s |
300 |
|
Min. Turning Radius |
mm |
5290 |
|
Max. Speed |
km/h |
25 |
|
Max Climbing Speed |
% |
20 |
|
Max Traction With Load |
kn |
30 |
|
Load Center Distance |
mm |
500 |
|
Engine Model |
mm |
YCD4J22T-115 |
|
Available Accessories:
