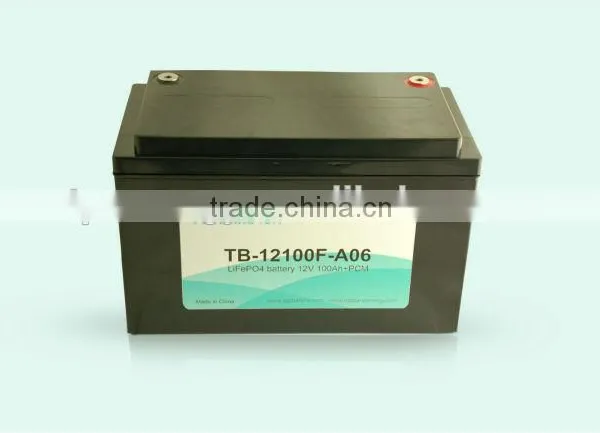

12V 100Ah Lithium Marine Batteries

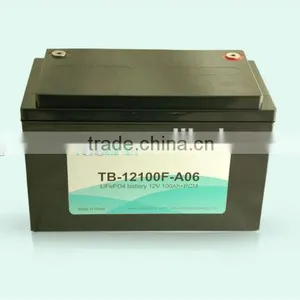

12V 100Ah Lithium Marine Batteries thumbnail-1
12V 100Ah Lithium Marine Batteries photo-1
US$ 1 - 560 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TOPBAND
Model Number:
TB-12100F
Contact Supplier Request Quote Chat Now
Shenzhen Topband Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TOPBAND
Model Number TB-12100F
Type Other, lifepo4 motor home
Nominal Voltage 12V
Size Other, 315*174*195 or customize
Nominal Capacity 100Ah

Specifications

12V 100Ah lithium marine batteries
1)70%lighter
2)built-in BMS protction
3)10X years life
4)CE,UL

TOPBAND Lithium Iron Phosphate (LiFePO4) battery is the ultimate in weight versus power technology. This is a drop in replacement for your Lead-acid battery and will require no change to your existing system. It can be placed in anything that uses a sealed lead acid battery . Used for deep cycle or energy storrage replacement lead acid batteries in UPS, Telecom, Marine, Solar etc.

LiFePO4 contains no poisonous lead, no acid, and does not create gasses during charge, as traditional Lead-Acid batteries do. Compared to lead-acid, Lithium Iron Phosphate batteries are also extremely light, have much lower self-discharge, do not sulfate, and are environmentally friendly.


TOPBAND Models have a Battery Management System (BMS). BMS monitors the key operational parameters of each cell during charging and discharging such as voltages, currents and internal temperatures.

There are three main objectives common to all Battery Management Systems (BMS) are:



• Protect the cells or the battery from damage from overcharging or discharging too low.
• Prolong the life of the battery with cell balancing.
• Maintain the battery in a safe operating state.


Because of its light weight, safety, excellent thermal stability, good electrochemical properties and high specific capacity is this application of the material very well received.

Dimensions equal to the standard battery for direct replace.



PRODUCT SPECIFICATIONS:







Model: TB-12100F
Chemistry: LiFePO4
BMS Yes(built inside)
Weight: 32.6lbs (14.8kg)
Nominal voltage: 12.8V
Typical capacity 100Ah 1280Wh
Max Charge voltage 14.6±0.05V
Discharger cut-off voltage 9.2±0.05V
Max charge current 50A
Max continuous discharge current 100A
Max pulse discharge current 350A (2s)
Operating Temperature: -22°F to +140°F, (-30°C to +60°C)
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C
Size(L*W*H) 13"(L) x 6.8"(W) x 9"(H), [330mm(L) x 172mm(W) x228mm(H)]
Application:Forklift, clean car, Bus,solar and energy systems,attractions tour,hybrid vehicle and so on







FEATURES:







• Ultra light. 1/5 the weight of lead-acid batteries on average



• Twice to four times the service life of lead-acid batteries



• Drop-in replacement for your OEM battery



• Fast recharge rate



• No explosive gasses during charge, no lead, no acid



• Environmentally friendly

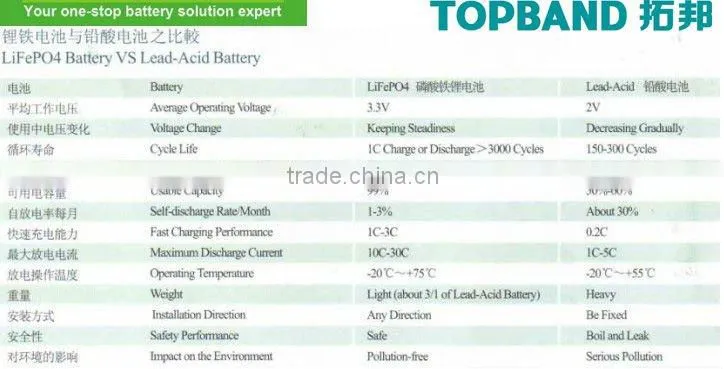

ADVANTAGES (LITHIUM VS LEAD ACID)
12V 100Ah lithium marine batteries

12V 100Ah lithium marine batteries12V 100Ah lithium marine batteries
