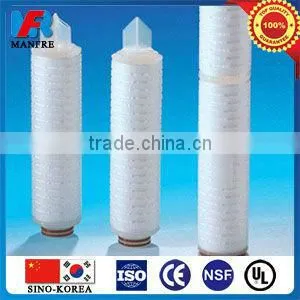

Help CenterPES Pleated Filter Element for Ultrapure Water Offered by China Manufacturer
Related Products
-
PES (Poly Ether Sulphone) Filter Cartridge Offered by Professional Manufacturer(Manfre)US$ 10 - 50MOQ: 5 Pieces -
Polypropylene Pleated Filter Cartridge Offered by ManfreUS$ 10 - 50MOQ: 5 Pieces
-
Absolute PES Membrane Filter Cartridge(0.1 to 0.8 Micron Ratings)US$ 50 - 100MOQ: 5 Pieces
-
Small Filter CartridgeUS$ 1 - 50MOQ: 2 Pieces
-
Small Post Carbon Filter Cartridge for RO Water Filter MachineUS$ 1 - 50MOQ: 2 Pieces
Specifications
1.PES pleat filter element2.FDA listed materials
3.Manufacturer at factory price
4.In beverage industry

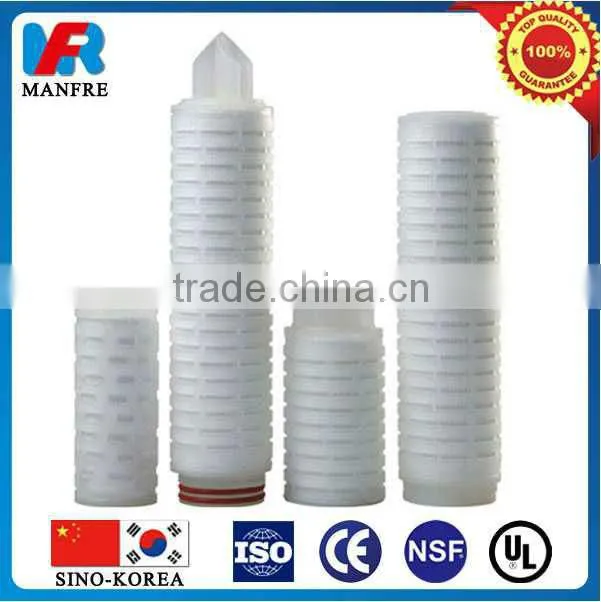

Manfre Supply PES Pleat Filter Element
---Professional Manufacturer
The polyethersulfone membrane provides high contaminant capacity,
superior flow rates and consistent removal of particles and microorganisms.
The cartridges are highly compatible with the most rigorous sanitizing methods
in the beverage industry. Reliability is further assured with the Manfre integrity
testable design.
Filter Specifications |
Dimensions / Parameters | |
|
Media
Inner core, end caps, cage Support layers Gaskets/O-Rings Micron ratings 0.45 µm
|
Nominal lengths
Outside diameter
Inside diameter Surface area
|
Max. sustained operating bar)
30 psid @ 160F (2.07 bar @ 71C) 15 psid @ 200F (1.03 bar @ 93C) Max. reverse differential Recommended
|
Performance Specifications
| Hot DI Water | Filter cartridge will withstand temperatures of 185F (85C) for up to 30 consecutive minutes. | |
| Cleaning/Sanitization | Compatible with most common chemical cleaning, sanitizing and sterilizing agents and with pH range from 1–14. Consult factory for specific compatibility information. |
|
| Rinse-Up Volumes |
Resistivity rinse-up to 18 M-cm: <30 minutes at a
Rinse-up to single digit ppb TOC in <120 minutes at a |
|
Typical Bacterial Retention Performance |
Pore Size | Retention |
| 0.2 µm: | LRV for B. diminuta ≥ 7.8 | |
| 0.45 µm: | LRV for S. marcescens ≥ 8.5 | |
| 0.65 µm: |
LRV for S. cerevisiae ≥ 11 LRV for L. brevis ≥ 7.6 |
|
|
Integrity Test Specifications Minimum Diffusive Air Flow (per 10-inch cartridge) values for Manfre filters wet with water: |
Pore Size | Diffusive Air Flow |
| 0.03 µm: | ≤ 50cc/min @ 45psig (3.1 bar) | |
| 0.1 µm: | ≤ 50cc/min @ 40psig (2.8 bar) | |
| 0.2 µm: | ≤ 35cc/min @ 30psig (2.1 bar) | |
| 0.45 µm: | ≤ 35cc/min @ 20psig (1.4 bar) | |
Quality Assurance
Manufactured in an ISO Class 7 cleanroom environment
100% flushed with 18 M-cm DI water and integrity tested
Meets USP Class VI Biological Test for Plastics
All materials are FDA listed for food and beverage contact
Repeatably steamable and sanitizable
High retention (LVR>7) of yeast and other spoilage organisms
Pore size, lot and serial number are stamped on each filter
element for identification and traceability
We have our own factory, Professional producing team.
Korea technology is adopted,Have rich export experience.
Special specifications can be produced by the customer's
requirements.
Welcome custom!!!
