Specifications
1.pall hydraulic filter element2.Graded pore structure
3.High dirt-holding capacity
4.Low differential pressure

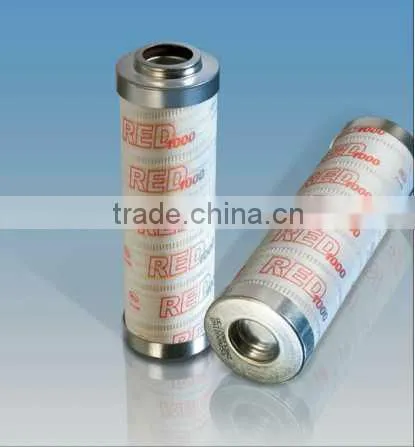

Manfre supply Pall 2295 series hydraulic filter element
------ China professional manufacturer
Brief introduction of 2295 series hydraulic filter element
|
Pall 2295 series filter elements are extremely permeable and are constructed of high dirt capacity stainless steel (type 304 or 316L) woven wire mesh. 2295 series media out perform other meshes because they are sintered woven wire meshes with higher void space. This filter with more pores per unit area, providing more dirt-holding capacity than that of an unsintered mesh made from coarser wires. Designs are available which are suitable for temperatures up to 600F/315 C. |
Technical Specifications:
|
Materials of Construction: Hardware: Corrosion protected carbon steel Media: Inert, inorganic fibers impregnated and bonded with epoxy resins Temperature Range: Nitrile: -43C (-45F) to +107C (225F) Fluorocarbon: -29C (-20F) to +120C (250F) , (per ISO 2943)Note: 60C (140F) maximum for water based fluids O - ring Code: OR112 per ISO 3601-1 Collapse Rating:210 bard (3045 psid) |
Filter Element Pressure Drop
|
Multiply actual flow rate times factor in table below to determine pressure drop with fluid at 32 cSt (150 SUS), 0.9 S.G. Correct for other fluids by multiplying new viscosity in cSt/32 (SUS/150) x new S.G./0.9. Note: factors are per 1000 L/min and per 1 US gpm. |
Operating Characteristics:
|
Standard cartridges are capable of withstanding a collapse differential of 125 psid in the forward flow (outside-in) direction and up to 600 F and 10 psid in the reverse flow direction |
Sizes:
|
The standard series filters are cylindrical forms of pleated medium, 2 1⁄2inches in diameter in 10 inch multiple lengths, up to 30 inches. |
We have our own factory and professional technology team!
Many kinds of stainless steel filter elements could be manufactured
according to customer's requirement. Welcom Custom and OEM!!!
