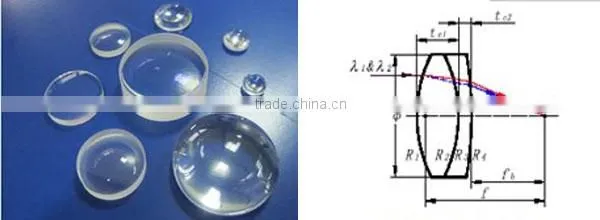

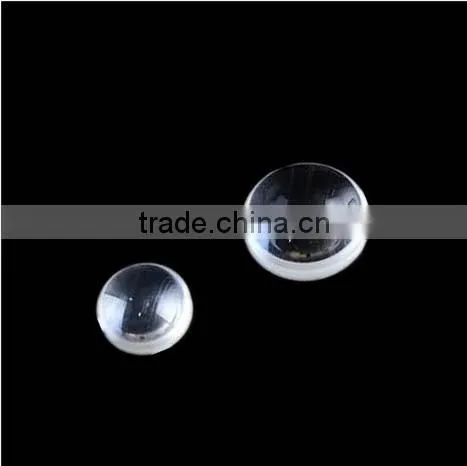

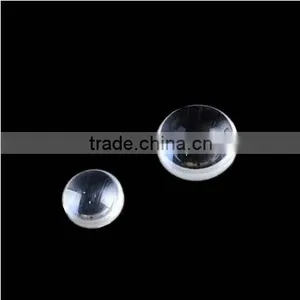

Positive achromatic optical Lens
Achromatic doublet lenses have significantly better optical performance than singlet lenses in visible imaging and laser beam manipulation applications. Achromatic Lenses are consist of two elements, usually of a positive low-index crown glass cemented to a negative high-index flint glass that have been corrected for chromatic aberration with respect to two or more selected wavelengths. We provide achromatic lenses consisting of two elements. These lenses have considerably reduced not only chromatic aberration bust also spherical aberration and coma aberration. These are designed with respect to three wavelength 480.0nm, 546.1nm and 643.8nm.
Positive achromatic optical lens specification:
Material |
BK7 grade A optical glass |
Design Wavelength |
480.0nm,546.1nm,643.8 nm |
Diameter Tolerance |
+0.0, -0.15 mm |
Thickness Tolerance |
±0.2 mm |
Paraxial Focal Length |
±2%(@)546.1 nm |
Centration |
<3 arc minutes |
Clear Aperture |
>85% |
Surface Irregularity |
λ/4(@)632.8 nm |
Surface Quality |
60-40 scratch and dig |
Protective Bevel |
0.25 mm x 45° |
The customized Achromatic optical lens is welcomed.

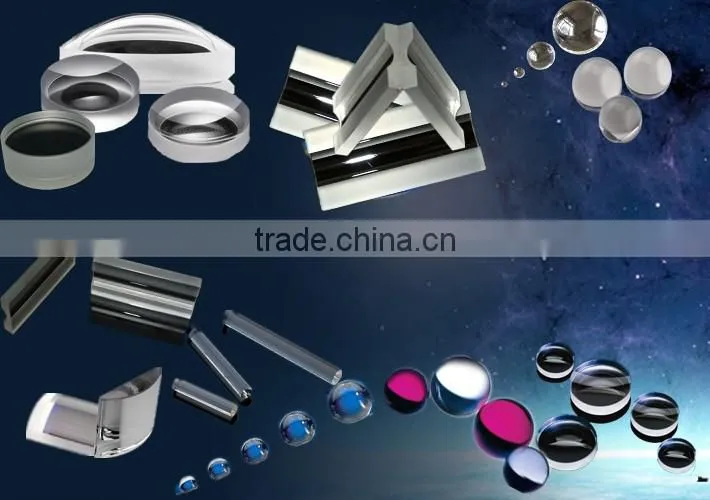

Other more optical lens:
1> Optical Display System
Tian Cheng Optics Co., Ltd. is located in Changchun city where is famous base of optics research and development in China, we dedicate to designing and manufacturing high quality precision optical components including Lenses, High Precision Prism, Filter, Window, Beamsplitter, Mirror, Waveplate, Polarizer, Polarization Beamsplitter, Micro optics, they are widely used in industrial application, medical industry, construction, telecommunications, military, environment monitoring, life sciences, public security, aerospace etc. We have built well cooperation with some companies from United Kingdom,Germany, Ireland, Sweden, Australia, Brazil, U.S.A. etc.
1> Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2> Delivery Detail: Within 20 days.(Also depand on the quantity)
1> Q: Where is your factory located ? How can i visit there ?
A: Our factory is located in Chaoyang district Changchun city Jilin province China, about 3 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us !
2> Q: What's the material of your products ?
A: The material is optical glass and plastic .
3> Q: If I place an order now, how long would it be before I got delivery ?
A: It would largely depend on the size of the order and the items you want .
4> Q: Can I customize production?
A: Yes, customized production is welcomed.
5> Q: How can I get some samples ?
A: We are honored to offer you samples .
