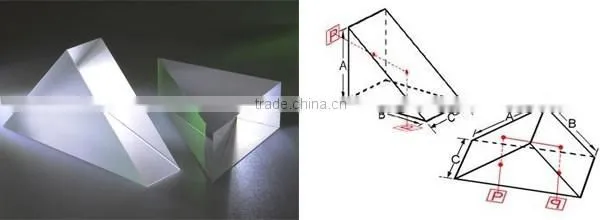

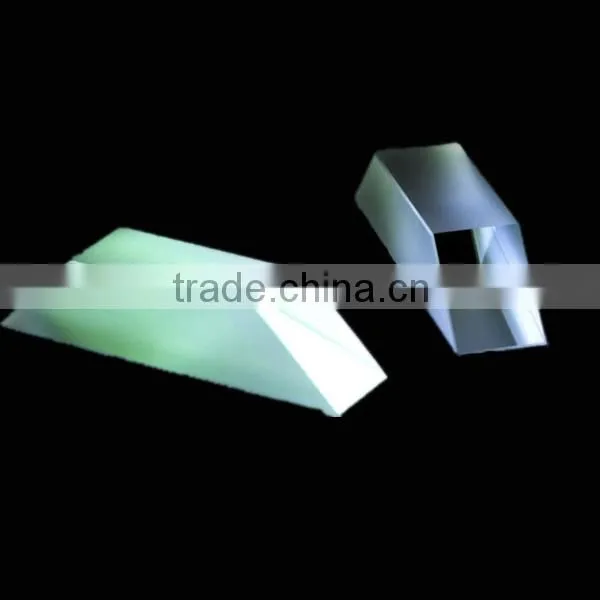

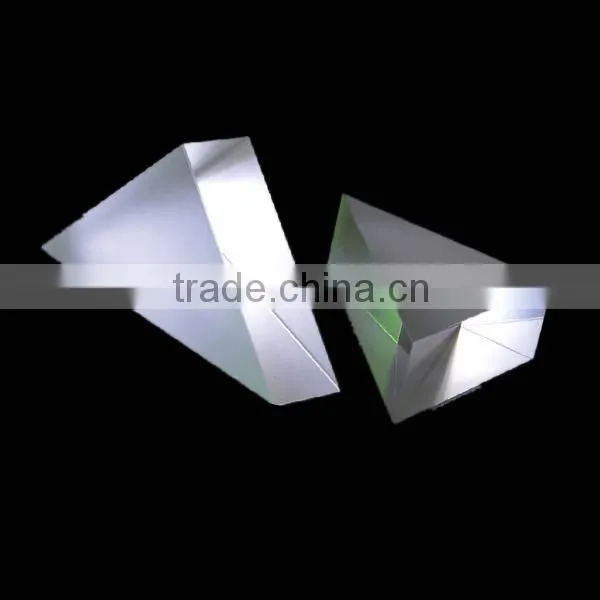

Optical glass right angle prism
Right Angle Prism may be used as a 90 degree reflector or 180 degree retroreflector. The prism deflect, deviate and rotate beams of light as well as dispersing their wavelengths. They usually used for beam deviation or as substrates for beamsplitters.
90-degree Deflection
90 degree deflection occurs at the hypotenuse face. The
image is erected and reversed.
180-degree Deflection
180 degree deflection uses with hypotenuse as the
entrance and exit face. The mail application of it is
used as a retroreflector provided that the plane of
incident beam includes the vertex.
Optical Glass Right Angle Prism specification:
Material |
BK7 grade A optical glass or UV fused silica |
Dimension Tolerance |
+0.0, -0.2 mm |
Clear Aperture |
>80% |
Surface Quality |
60-40 scratch and dig |
90° Deviation |
3'''''''''''''''', 1'''''''''''''''' or 30" |
Flatness |
λ/2 @632.8 nm |
Protective Bevel |
0.25 mm x 45° |
The customized optical glass right angle glass is welcomed.
Other more optical lens:
1> Projection Optical System
Tian Cheng Optics Co., Ltd. is located in Changchun city where is famous base of optics research and development in China, we dedicate to designing and manufacturing high quality precision optical components including Lenses, High Precision Prism, Filter, Window, Beamsplitter, Mirror, Waveplate, Polarizer, Polarization Beamsplitter, Micro optics, they are widely used in industrial application, medical industry, construction, telecommunications, military, environment monitoring, life sciences, public security, aerospace etc. We have built well cooperation with some companies from United Kingdom,Germany, Ireland, Sweden, Australia, Brazil, U.S.A. etc.
1> Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2> Delivery Detail: Within 20 days.(Also depand on the quantity)
1> Q: Where is your factory located ? How can I visit there ?
A: Our factory is located in Chaoyang district Changchun city Jilin province China, about 3 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us !
2> Q: What's the material of your products ?
A: The material is optical glass and plastic .
3> Q: If I place an order now, how long would it be before I got delivery ?
A: It would largely depend on the size of the order and the items you want .
4> Q: Can I customize production?
A: Yes, customized production is welcomed.
5> Q: How can I get some samples ?
A: We are honored to offer you samples .
