Home > Consumer Electronics > Warmer Appliance > Heater Fan > Cup Printing Machine Flexible Silicone Heater Element

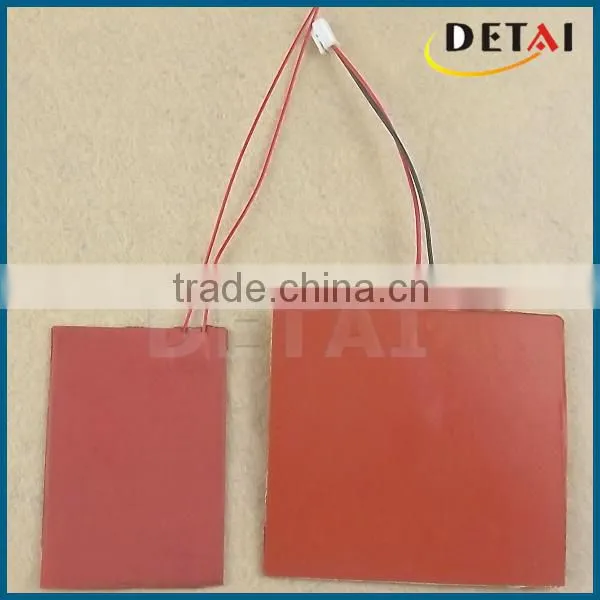

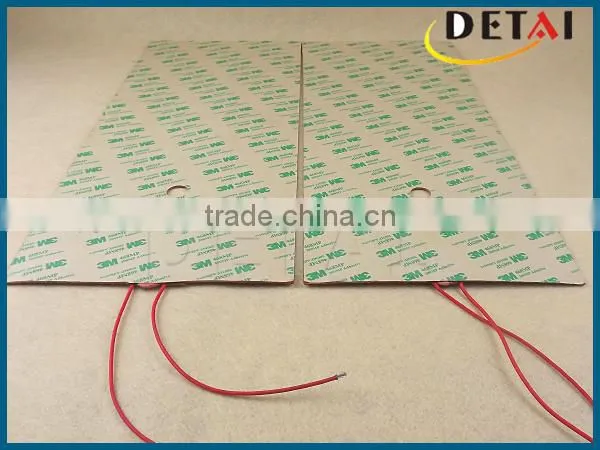

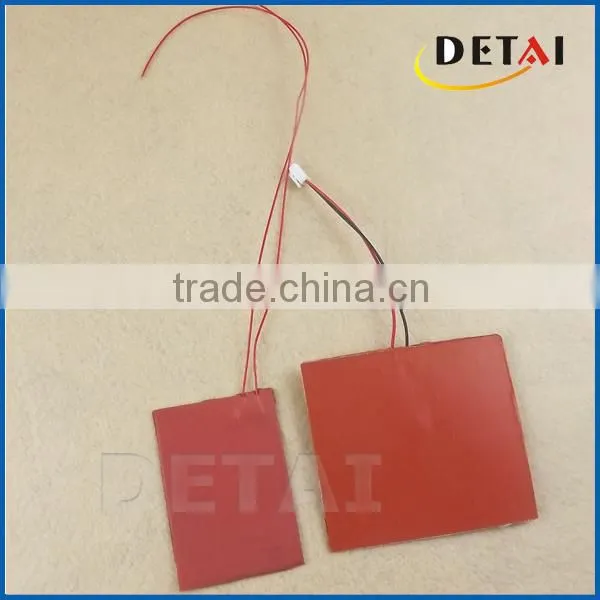

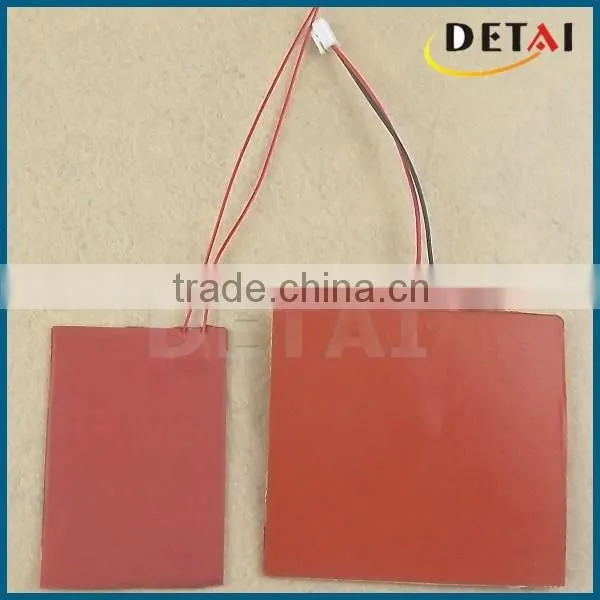

Cup Printing Machine Flexible Silicone Heater Element

Cup Printing Machine Flexible Silicone Heater Element photo-1
US$ 15 - 55 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air Heater, flexible silicone heater element
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Air Heater, flexible silicone heater element
Power Source Electric
Place of Origin Guangdong, China
Brand Name Detai
Model Number Silicone Heater-050
Dimension(L*W*H) According to your requests
Weight Based on the dimensions
Voltage 12-380v
Power(W) 200-20KW
Certification CE,UL,ISO,CSA,CCC,ROHS
Warranty 1 year

Specifications

flexible silicone heater element
1,for cup printing machine
2,flexible heater element
3,work temp.: -60-250C
4.customized

Thin Film Flexible Silicone Rubber Heater Applied In Ultrasonic Cleaner

 cup printing machine flexible silicone heater element

General Info   Silicone heating element have wire-wound or etched foil heating circuits laminated between thin layers of fiberglass-reinforced, high temperature insulation, silicone rubber.
  Special shape silicone heaters are resistant to temperature extremes, moisture, weathering, radiation, fungus and chemical attack. They also have a high dielectric strength, flexibility, provide a cost effective heating solution and are easily bonded or cemented to heat sinks or other parts to be heated.
Specifications
  1. size: Max:1000 mm*1000 mm.Min.20mm*25mm
  2. Standard Thickness 1.5mm
  3. nickel 80% wound wire or nickel 80% foils(thickness 0.05 mm~0.10mm)inside
  4. variety of shapes, can be customized
  5. various types of lead wires and other terminations.
  6. fast heating:3~5w/cm2
  7. high thermal efficiency, save energy
  8. wide range of temperature,-60°C~250°C
  9. Long service time



Features
  1. Not affected by vibration or flexing
  2. Precise heating and lightweight
  3. Comply to UL94-VO (flame retardant) and ROHS
  4. Low Smoke and Low Toxicity
  5. Silicone is non-toxic, and moisture and chemical resistant
How to order
  • Used voltage(V), and frequency(Hz)
  • Demand request power(Watt)
  • Heating tube material
  • Quantity
About Detai Our company specializes in manufacturing flexible silicone heater, stainless steel heating elements, electrical water heater, cartridge heaters, oven/furnce.oven heating elements and non-standard industrial control products which are widely used in household appliances, ovens and other mechanical equipment. Our products are exported to Southeast Asia, West Europe, North America and other countries and regions.



We have attained ISO9001:2000 quality management system certification. Our products have passed the evaluation of CE, CQC,SGS and UL certifications.

Application
  1. De-icing and anti-icing equipment
  2. Freeze protection for drains in refrigeration equipment
  3. Electric motor dehumidifying
  4. Consumer appliances
  5. Vending equipment
  6. Electric motor dehumidifying
  7. Security cameras
  8. Medical and massage heating pads
  9. TV and radars parables deicing
  10. Computer peripherals such as laser printers, copy machines
  11. Catering equipment heating
  12. Mirrors defrost and dew removing
Payment Methods
  1. Paypal
  2. T/T
  3. Western Union
  4. L/C



Customized flexible heater element



cup printing machine flexible silicone heater element

cup printing machine flexible silicone heater element

cup printing machine flexible silicone heater element
