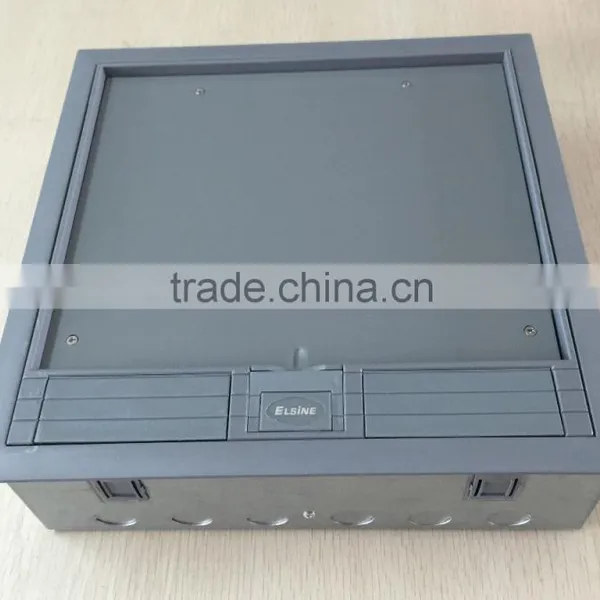

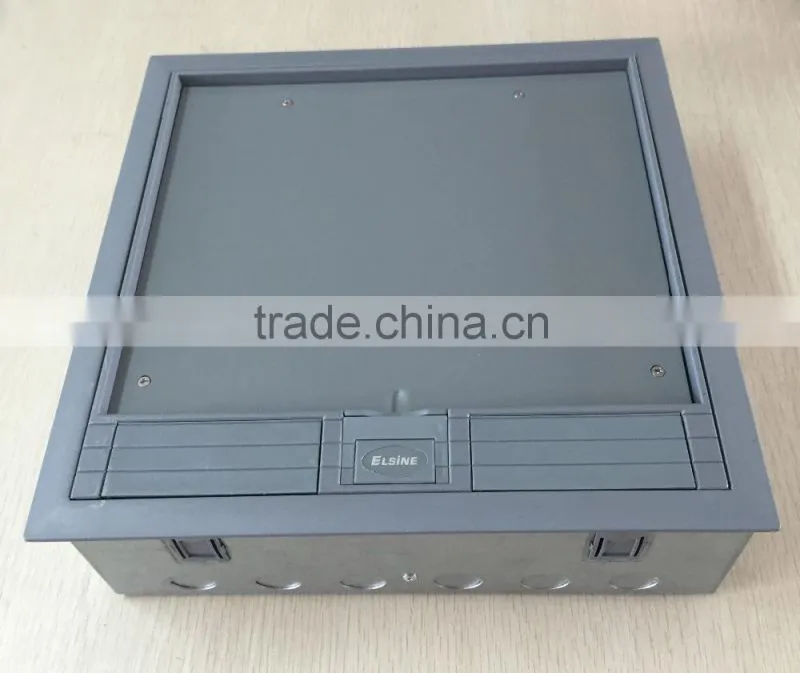

Help CenterElectrical Floor Box/Floor Outlet Box/under Floor Service Box With 13A SWITCHED SOCKET PLATES
Related Products
-
Waterproof Electrical Raised Floor Boxes Systems Under Floor Flush Outlet BoxUS$ 10.99 - 12.85MOQ: 100 Units -
24 Way HG III Series Plastic EnclosureNegotiableMOQ: 200 Pieces
-
2 Way HG Plastic EnclosureNegotiableMOQ: 200 Pieces
-
SM Series Plastic Enclosure/MCB BoxNegotiableMOQ: 200 Pieces
-
Flush Type LGD Series Distribution BoxNegotiableMOQ: 200 Pieces

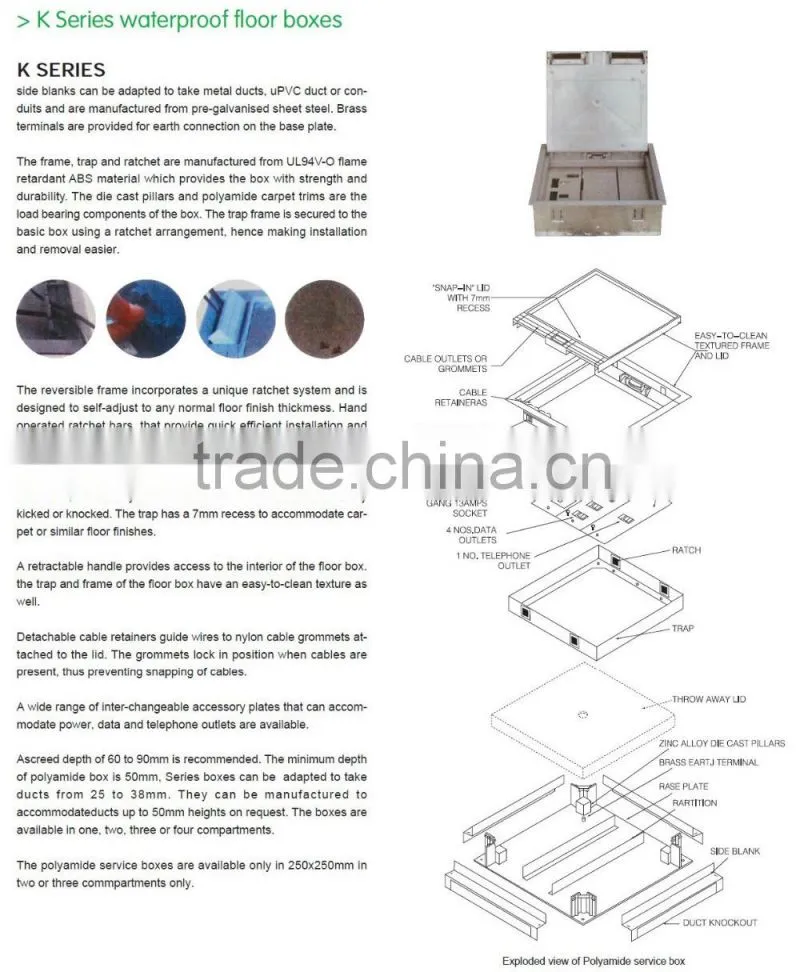

Raised Floor Boxes Waterproof floor box Raised floor service box Raised floor outlet box
Our Floor Box is the ideal solution for workstations when installation in floors is required.
Our floor mount electrical boxes systems are designed to enclose power telephone,data and ancillary systems, and cables facilitating distributing in a commercial environment.

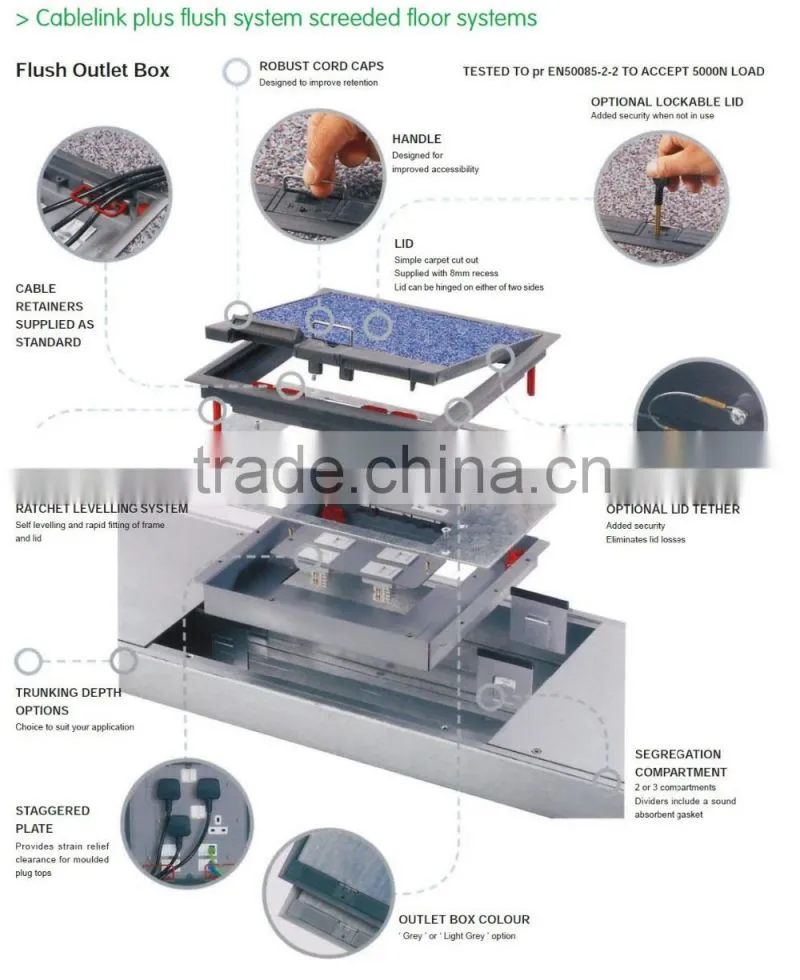

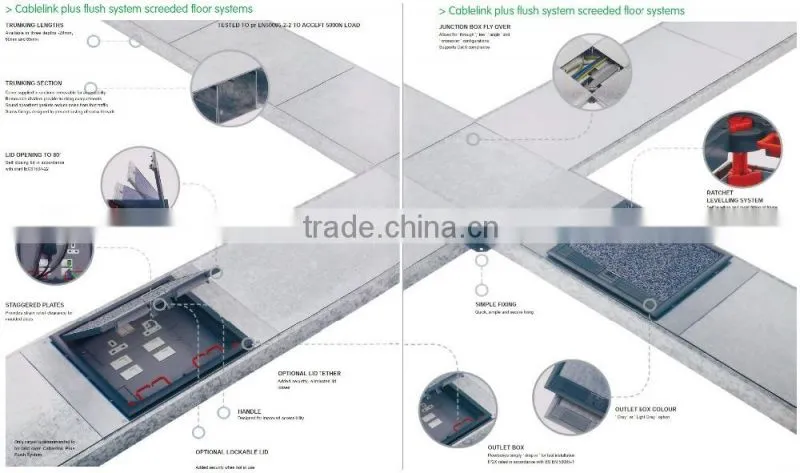

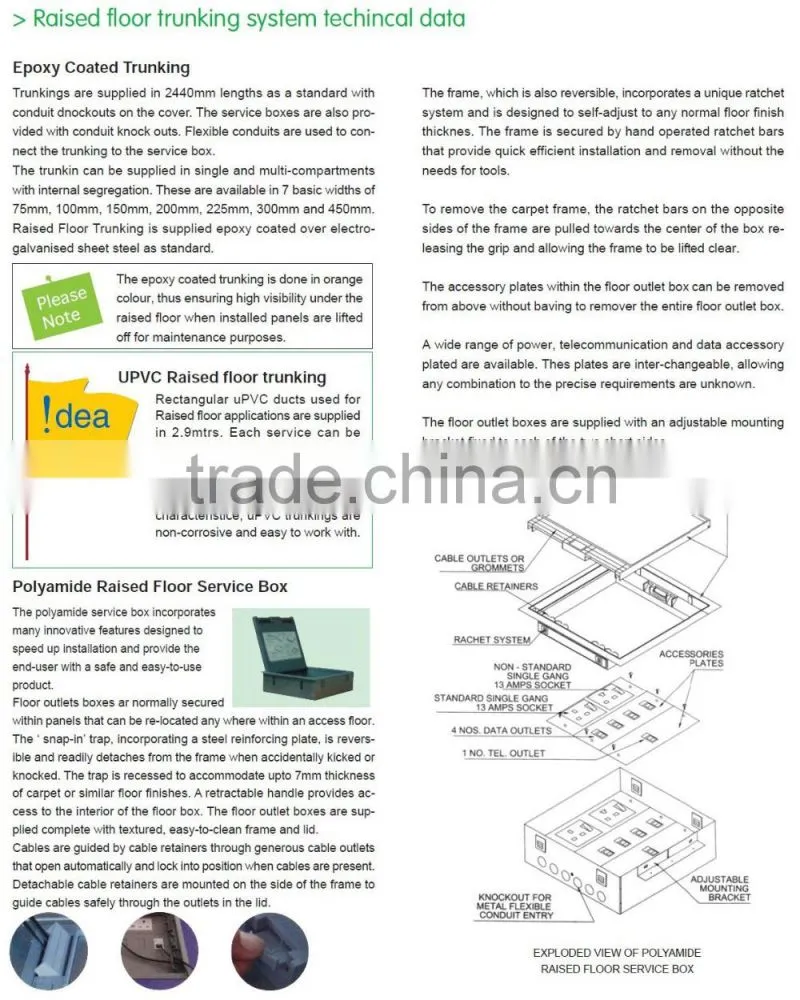

The floor mount electrical boxes systems comprises of four basic components,which can be used together to provide the desired underfloor of floor configurations. These include ducts, service outlet boxes,Junction boxes and vertical access unites.
1.Dimension: 270*270*83mm

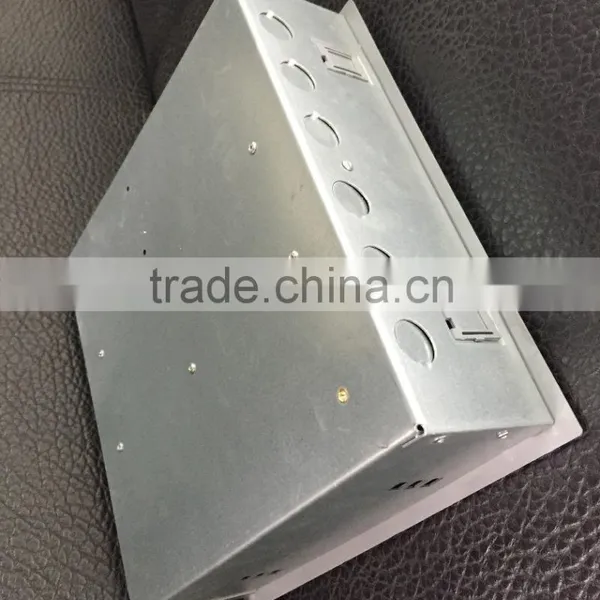

2.Material: Galvanized steel housing
ABS frame
Top cover made of GI

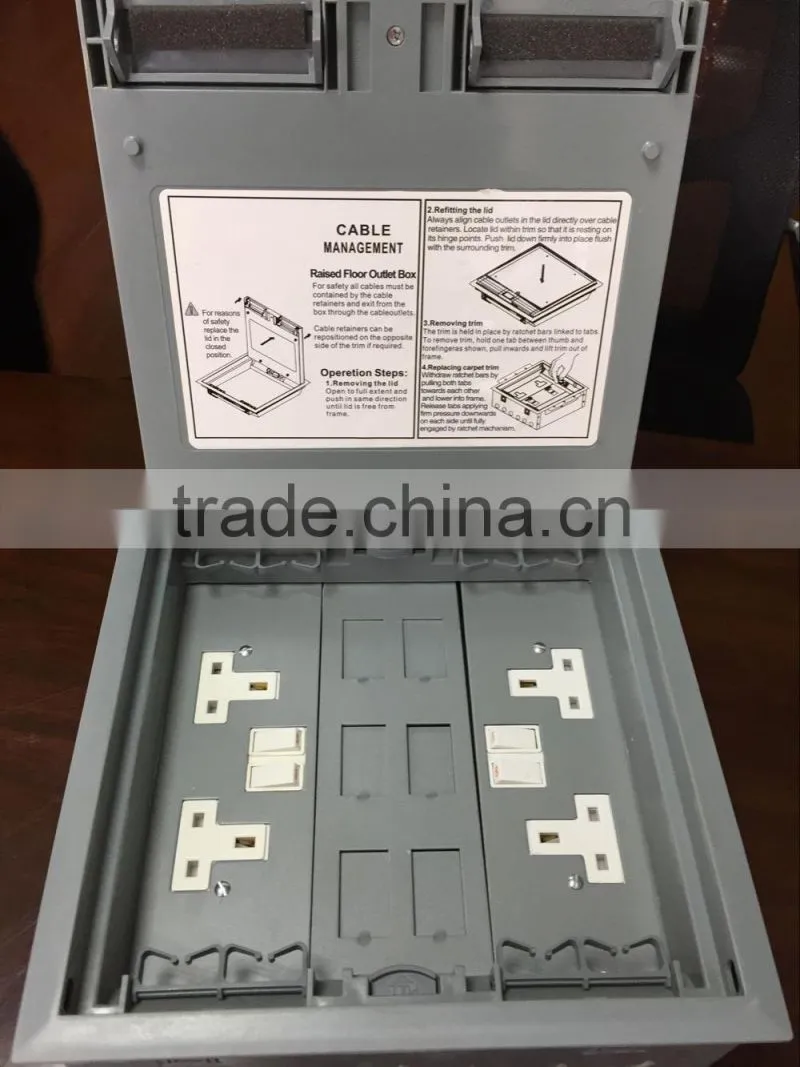

3.Plate: 13A double switched socket plate
Computer and phone jack plate
Blank plate
All kinds of plates is OK for us.

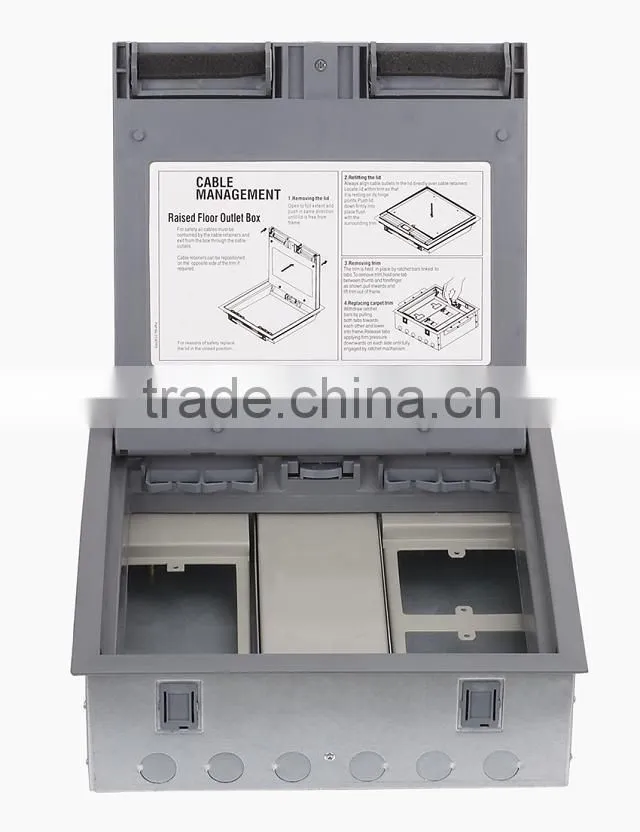

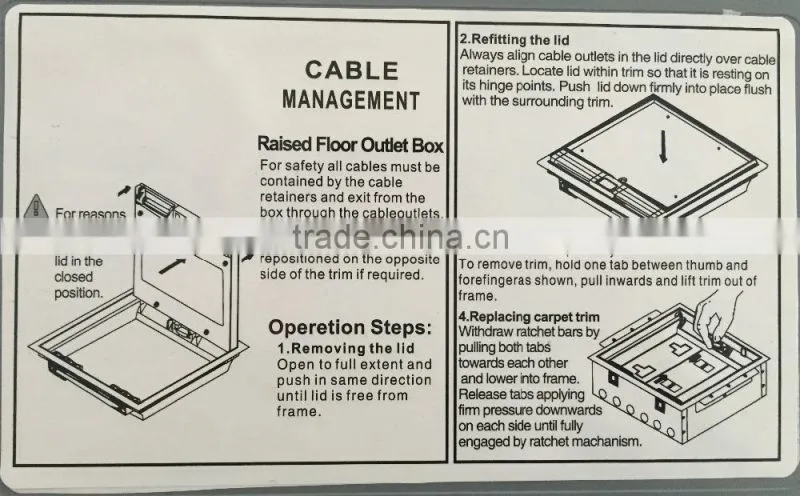

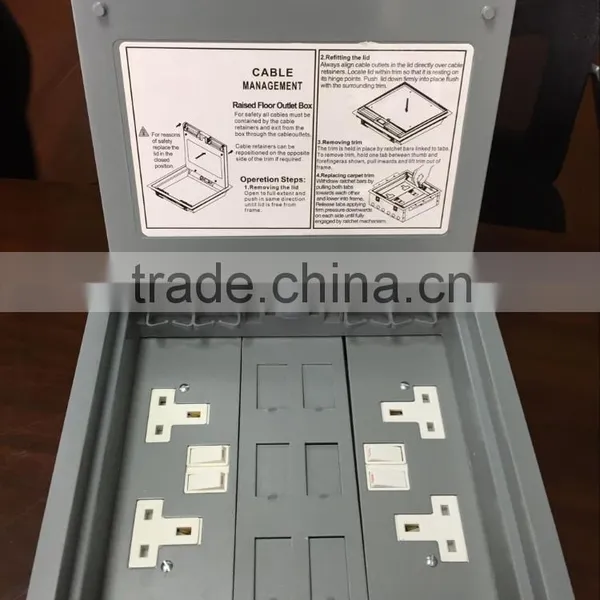

Assembly Instruction:
Cable Management
Raised Floor Outlet Box
For safety all the cables must be contained by the cable retainers and exit from the box through the cable-outlets.
Operation Steps:
1.Removing the lid/cover
Open to full extent and push in same direction until lid is free from the frame.
2.Refitting the lid
Always align cable outlets in the lid directly over cable retainers.
Locate lid within trim so that it is resting on its hinge points.Push lid down firmly into place flush with the surrounding trim.
3)Removing trim
The trim is held in place by ratchet bars linked to tabs.
To remove trim,hold one tab between thumb and forefinger as show,pull inwards and lift trim out of frame.
4)Replacing carpet trim
Withdraw ratchet bars by pulling both tabs towards each other and lower into frame.
Release tabs applying firm pressure downwards on each side until fully engaged by ratchet mechanism.
