Specifications
Over-current protection is provided by tripping the relay when motor operating current(In) exceeds over-current setting(Is)Electronic Over current Relay, Electronic Under Current Relay, Electronic DC Current Relay,Thermal Overload Relay
Electronic Voltage Relay, Electronic DC Voltage Relay, Protection & Monitoring Relay.

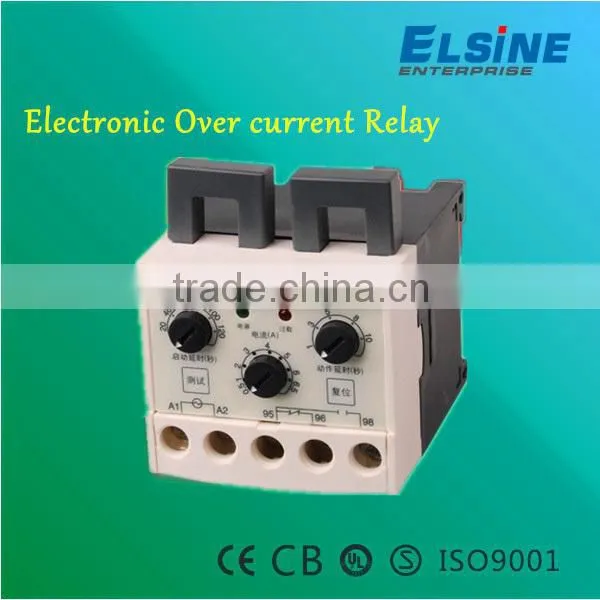

EOCR-SS(N) Electronic Overload Relay /Over-current Protection/Electronic Over current Relay
Over-Current Protection:
Over-current protection is provided by tripping the relay when motor operating current (In) exceeds over-current setting (Is) of EOCR for a period greater than the preset operating time (O-Time).
- 2 Integral Current Transformers
- Electronic Shear-pin Function
- Independently Adjustable Starting Trip Delay
-
(D-Time) & Operating Time (O-TIME)
Features:
- Phase Loss Protection
- Typical Wiring
- Compact Design
- Multiple Protection Functions
- Wide Current Adjustment Range (10: 1)
- Ammeter Function
- Trip Indication LED
- High Accuracy
- Manual Instantaneous Reset
- Electrical Remote Reset
- Test Function
- Ambient Insensitive
- Low Energy Consumption
-
Fail-safe Operation (No Volt Release)
