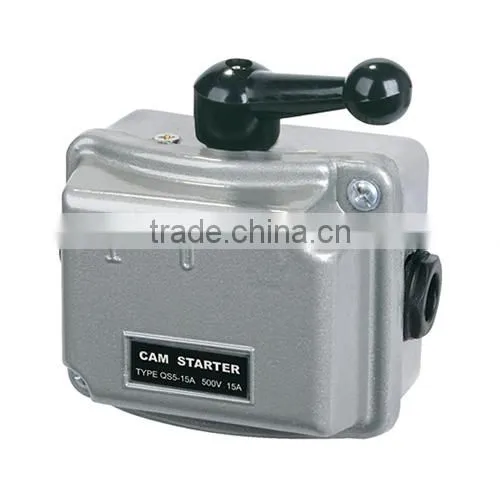

Help CenterQS5 Cam Starter QS5-15A
Related Products
-
British Standard 13A Fused Plug Top (A280)US$ 0.42 - 0.6MOQ: 100 Pieces -
BS Plate Switches/british Wall SwitchNegotiableMOQ: 1000 Pieces
-
13A 2 Gang Switched Socket With Neon (Multi-functional Socket)NegotiableMOQ: 1000 Pieces
-
Switched Socket With NeonNegotiableMOQ: 1000 Pieces
-
MK Type Wall Switch & SocketUS$ 0.9 - 1.2MOQ: 2000 Pieces
Specifications
For start, stop, forward or backward directly three-phase asynchronous electric motor with AC 50Hz, voltage up to 500VApplication:
QS5 cam starter is mainly used to start, stop, forward or backward directly three-phase asynchronous electric motor with AC 50Hz, voltage up to 500V and capacity up to 7.5KW. It can also be used for changeover from one kind of circuit to the other.
Specifications:
Type |
Mark |
Rated current |
Motor control capacity |
Electrical life (Times) |
Mechanical life(Times) |
Frequency of operation |
Applications |
Position of lever |
QS5-15A |
I-O |
15 |
5.5 |
100000 |
250000 |
200 |
ON-OFF |
0-60 |
QS5-30A |
30 |
10 |
||||||
QS5-15N |
I-O-I |
15 |
5.5 |
Forward & reverse |
60-0-60 |
|||
QS5-30N |
30 |
10 |
||||||
QS5-15P/3 |
I-O-II |
15 |
5.5 |
For 3 pole two circuits |
60-0-60 |
|||
QS5-30P/3 |
30 |
10 |
||||||
QS5-63A |
I-O |
63 |
22 |
80000 |
200000 |
180 |
ON-OFF |
0-60 |
QS5-100A |
100 |
30 |
||||||
QS5-63N |
I-O-I |
63 |
22 |
Forward & reverse |
60-0-60 |
|||
QS5-100N |
100 |
30 |
||||||
QS5-63P/4 |
I-O-II |
63 |
22 |
For 3 pole two circuits |
60-0-60 |
|||
QS5-100P/4 |
100 |
30 |
||||||
QS5-200P/4 |
200 |
55 |
50000 |
150000 |
QS5-15A Accessories:
QS5-15A Wiring Diagram:
Enclosure/Body material: 1. Plastic 2. Iron 3. Aluminum
