Home > Electrical & Electronics > Switch > Time Switch > THC711 Channel Weekly Programmable Digital Electronic Timer

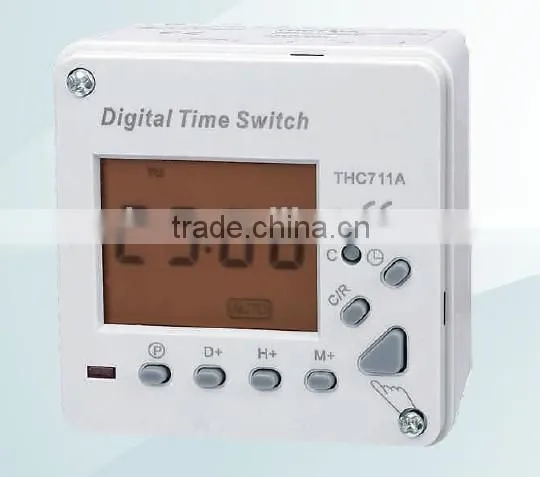

THC711 Channel Weekly Programmable Digital Electronic Timer
US$ 4 - 10
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Elsine
Model Number:
THC711A; CN711A
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Astronomical Timer Switch (CN306-R485,THC306, EL306)US$ 6 - 10MOQ: 100 Units -
Multi-function Intelligent Controller/Timer Switch (LR600)US$ 5 - 10MOQ: 500 Pieces
-
20Amp Programmable Weekly Geyser Timer Switch(DHC15A, THC15A)US$ 5 - 6.5MOQ: 50 Pieces
-
Mechanical Socket Timer (TG-16A)US$ 1.8 - 2.5MOQ: 1000 Units
-
Germany 24 Hour Mechanical Timer(TG-22A)US$ 1.8 - 2.5MOQ: 1000 Units
Place of Origin
Zhejiang, China
Brand Name
Elsine
Model Number
THC711A; CN711A
Max. Current
16A
Max. Voltage
250V
Specifications
1.Large LED display with backlight 2.Daily & weekly program3.Low power consumption; 4.17ON +17OFF programs
Product Description
The timer switch a kind of time-controller, mainly applied in controlling variety of electrical equipment. Which could switch on and off various kinds of electric equipment at a preset time automatically.
It is easy to operate, and widely used in controlling system, such as street lighting, mechanical equipments, advertisements lamp box, breeding, irrigation, Lighting, water heater,agriculture facilities and broadcasting equipment etc.
The digital timer switch has rechargeable battery inside, which is 1.2V/40mA, to save the programs for power failure. It’s low consumption, high-accuracy CMOS chip, strongly anti-jamming. (strong anti-interference industrial chip)
Technical Data
- Operating voltage: 220~240VAC 50-60Hz
- Switching capacity: 16(8)A/250VAC
- Ambient temperature: -10~+55℃ Degrees centigrade
- Protection grade: II, IP20
- Accuracy: Less than or equal to 1S/24h
- Power reserve: 60 Days
- Minimum interval: 1 Minute
- No. of Memory: 34 Programs (17ON+17OFF)
- Working type: Automatic or manual
- Display type: LCD with backlight
- Max. Terminal capacity: 6mm2
- Product Size: 72*72*48mm
Dimension
Wiring Diagram

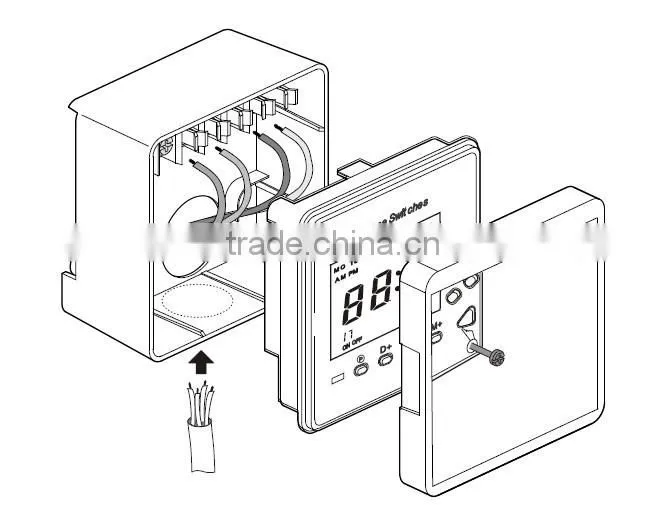

Structure diagram:
