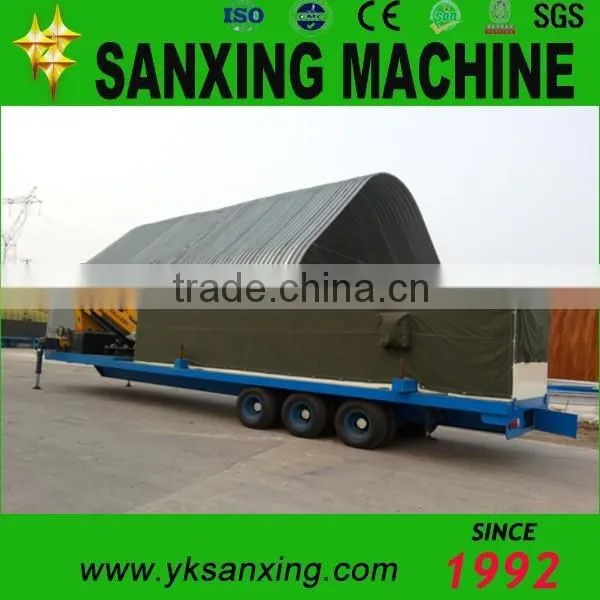

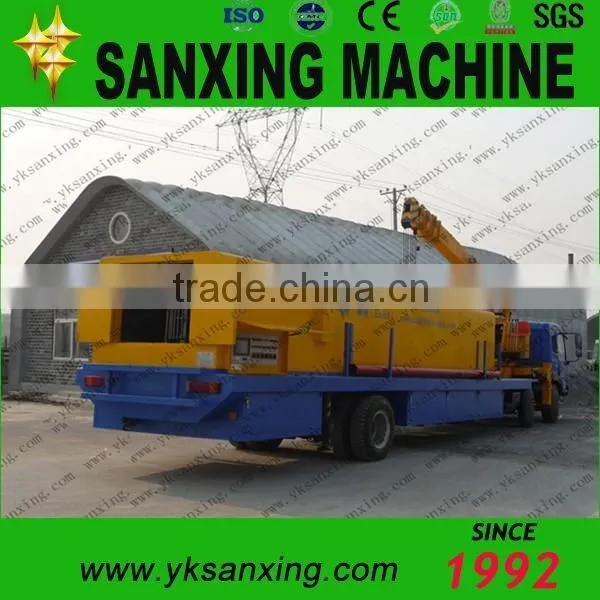

This is a mobile multi-production line (short for UCM)which fabricated 8 types of steel building at your will.The advantages of a steel building are no beam and column in the structure. The roofing are seamed together without bolts, screws or nuts. This is one stage working production line that reduce labour and time a lot.
ONE SET OF MACHINE INCLUDED:
1. MAIN MACHINE
2. CRANE(OPTIONAL)
3. TRUCK AND CRANE (OPTIONAL)

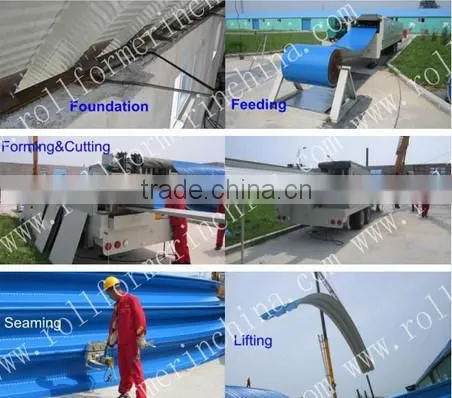

--HIGH SPEED OF CONSTRUCTION
With UCM Mobile Factory, a 1000-square meter structure can be built in 24 hours. Using the high speed of fabrication and seaming of panels,a crew of 10 to 12 workers can fabricate and erect nearly 100 arched panels in one day.
--LOW COST
Due to the above reason, the coast of construction of a UCM Building is less than that of conventional and prefabricated buildings.
--ON-SITE MANUFACTURING
The UCM Mobile Factory is taken directly to the construction site and the building is fabricated completely on-site. No costs of shipping of building components from a fabrication shop are incurred.
--MOBILITY AND ACCESS TO REMOTE AREAS
Our trailer-mounted UCM Factories can be easily towed by and ordinary vehicle to any remote part of the country and put into operation the moment it arrives at the site without any delay whatsoever.
--NO STRUCTURAL COLUMNS, BEAMS OR TRUSSES REQUIRED
The UCM arches are designed to be totally self-supporting and do not require any support structure such as is needed in standard steel frame buildings.
--SAVINGS IN MANPOWER
A crew of approximately 10 to 15 trained men can erect a 1000 square meter building in a single day. You can build your UCM buildings in either steel or aluminum, pre-painted in an unlimited range of colors. We also stock most of our coils and immediately ship with our unit to the site.
1) Life time guarantee for whole machine except of bearing parts.
2) 24 hours technical support by e-mail.
3) Use-friendly English manual and videos.
OTHER PRODUCTS
The types of our ACM arch panel roll forming machine
TYPE |
Width of the coil |
Width of the formed sheet |
Thickness of the coil |
Proper span |
SX-600-305 |
600 mm |
305mm |
0.6-1.5 mm |
≤24m |
SX-914-400 |
914mm |
400mm |
0.6-1.5 mm |
≤40m |
SX-914-610 |
914 mm |
610 mm |
0.6-1.5 mm |
≤38m |
SX-914-650 |
914 mm |
650 mm |
0.6-1.5 mm |
≤28m |
SX-914-700 |
914 mm |
700 mm |
0.6-1.5 mm |
≤24m |
SX-914-750 |
914 mm |
750 mm |
0.6-1.5 mm |
≤15m |
SX-1000-400 |
1000mm |
610mm |
0.6-1.5mm |
≤40m |
SX-1000-550 |
1000mm |
610mm |
0.6-1.5mm |
≤30m |
SX-1000-610 |
1000mm |
610mm |
0.6-1.5mm |
≤39m |
SX-1000-680 |
1000mm |
680mm |
0.6-1.5mm |
≤32m |
SX-1000-700 |
1000mm |
700mm |
0.6-1.5mm |
≤28m |
SX-1000-750 |
1000 mm |
750 mm |
0.6-1.5 mm |
≤25m |
SX-1000-800 |
1000 mm |
800 mm |
0.6-1.5 mm |
≤14m |
SX-1220-800 |
1250 mm |
800 mm |
0.6-1.5 mm |
≤42m |
SX-1250-800 |
1250 mm |
800 mm |
0.6-1.5 mm |
≤42m |
Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing. Welcome to visit us any future time.
