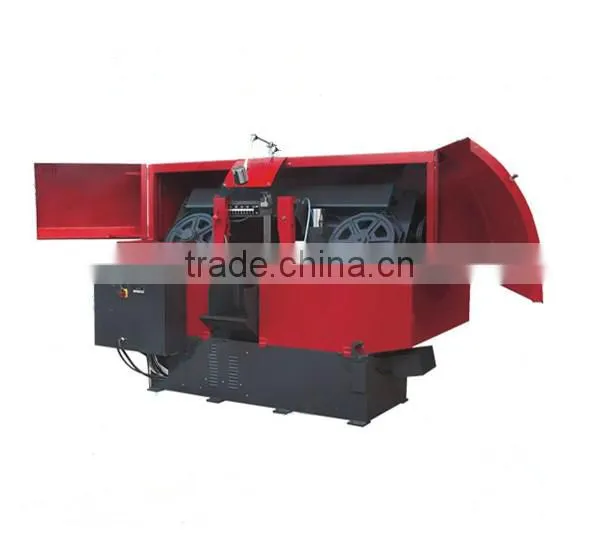

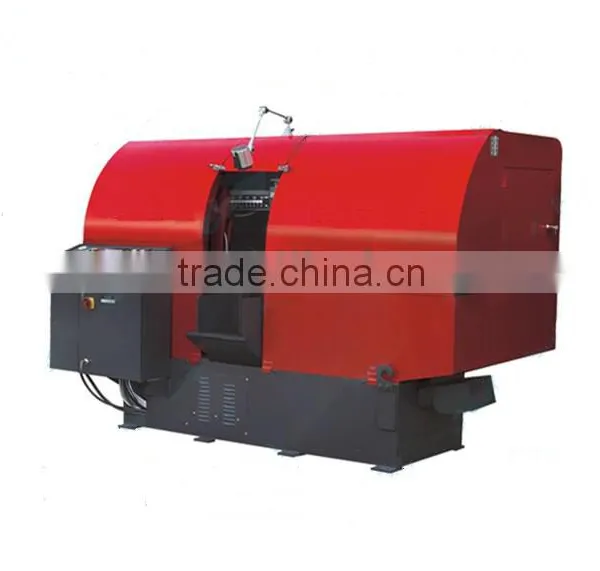

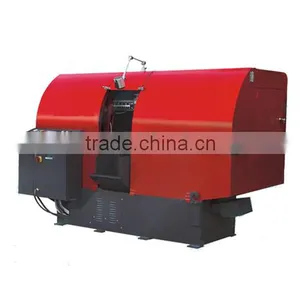

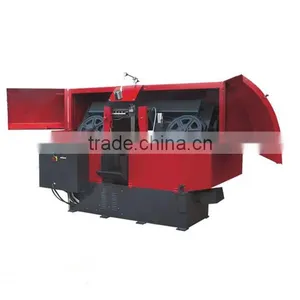

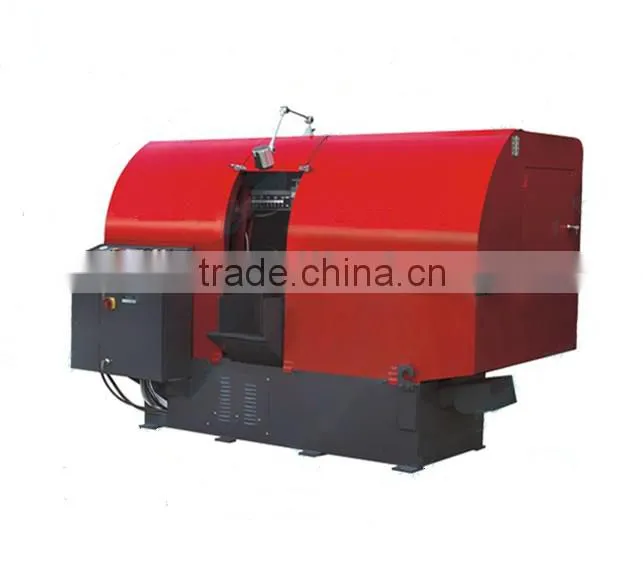

CH-360HANC Double Column Fully Automatic Band Saw
The automatic and semi-automatic dual-column horizontal sawing machine series designed by our company is incorporated with advantages of many other manufactures, featuring reasonable structure, stable and reliable performance, and high precision. It is ideal equipment for sawing/cutting of medium/small lots.
Technical Specifications:
MODEL |
CH-360HANC |
|
|
Max. Cutting Capacity(mm) Bundle Cutting |
circular: 360 rectangel: 360W×360H bundle:280W×160H |
|
Saw Blade |
Speed(m/min) |
20~100 Inverter |
Size(mm) |
34×1.1×4420 |
|
Guides |
Carbide and bearing blade guides |
|
Cleaning |
Power wire brush & flood coolant |
|
Tension |
Hydraulic |
|
Motor Output(KW) |
Blade |
4 |
Hydraulic |
0.75 |
|
Coolant |
0.075 |
|
Multiple Feed |
400mm×9tims |
|
Work Vise |
Hydraulic |
|
Machine Weight |
2100kg |
|
Packing Size(L×W×H)(mm) |
2500×2200×1750 |
|
Standard Equipment:
1 Blade cleaning brush
2 Working light
3 Automatic feed Hydraulic shuttle vice assembly
4 Manual work height control
5 Roller rack 2M long
6 One piece of bi-mental saw blade
7 One set of tools with tool box
8 Automatic chip conveyor
9 Operation & parts manual
10 NC Control
11 Manual circumgyrate angle
12 Inverter
Optional Equipment:
1 Roller rack 2M long
2 CE model
