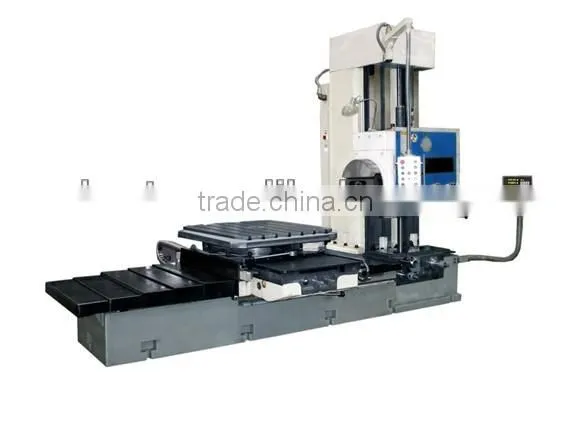

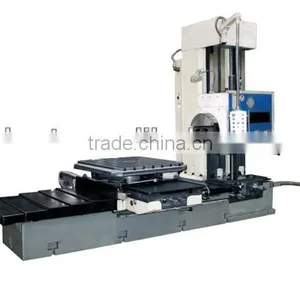

BMH-110D Series DRO Horizontal Boring and Milling Machines

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Tianjin, China

Brand Name:

BMT

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Tianjin, China

Brand Name BMT

Model Number BMH series

Type Horizontal

Certification CE

Warranty 12 monthes

After-sales Service Provided Engineers available to service machinery overseas

Specifications

BMH-110D series DRO horizontal boring and milling machines

Product Description

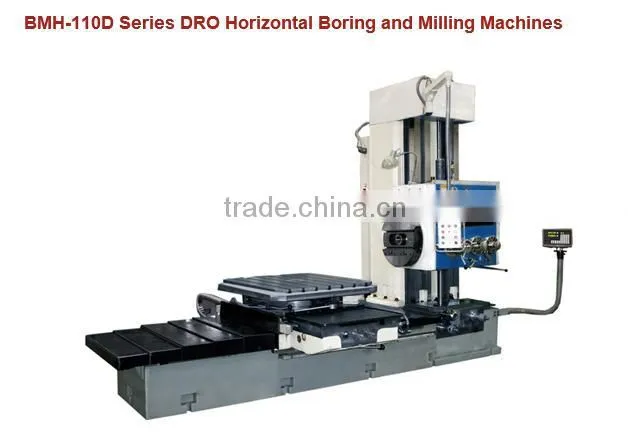

BMH-110D series DRO horizontal boring and milling machines

Technical Specification:

Model	BMH-110D	BMH-110T	BMH-130A/2	BMH--130C	BMH-130C/2	BMH-130D
Spindle diameter (mm)	110	110	130	130	130	130
Spindle taper	ISO 50#	ISO 50#	ISO 50#	ISO 50#	ISO 50#	ISO 50#
Spindle speed (r/min)	9 - 1000	9 - 1000	6.6 -755	6.6 -755	6.6 -755	6.6 -755
Power of spindle motor (kw)	7.5	11	11	11(Optional 15)	11(Optional 15)	15
Max. drilling capacity of spindle (mm)	50	50	80	80	80	80
Max. boring capacity of spindle (mm)	300	300	350	350	350	350
Max. boring capacity of facing chuck (mm)	600	600	700	700	700	700
Speed of facing chuck (r/min)	6–221 (14 grade)	6 -221	4.4-165 (14grade)	4.4-165 (14grade)	4.4-165 (14grade)	4.4-165 (14grade)
Table size (L X W) (mm)	1100x950	1200x1100	1500x1250	1600 x 1400	1600 x 1400	1600 x 1400
Max. load of table (kg)	2500	2500	4000	8000	10000	10000
Transverse travel of table (X) (mm)	1000	950	1830	1800	2000	2000
Vertical travel of spindle head (Y) (mm)	900	1100	1400	1600	1600	1600
Longitudinal travel of table (Z) (mm)	1400	1500	2000	2000	2000	2000
Axial travel of spindle (W) (mm)	600	600	760	900	900	900
Travel of facing chuck slide (mm)	170	170	200	200	200	200
DRO	X, Y	X, Y	X, Y	X, Y, Z, B	X, Y, Z, B	X, Y
Weight of machine (kg)	14000	14500	27000	31000	33000	28000
