Specifications
1. Succesfully exported full production line to USA2. Passed ISO9001:2008, ISO14001, OHSAS18000.
3. Superb after sale service
We are professional continuous sandwich panel production line manufacturer, the unique enterprise also manufacture PU sandwich panel in China. Passed ISO9001:2008, ISO14001, OHSAS18000, CE, RoHS.
We have successfully exported PU sandwich panel continuous production line to U.S.A. in 2013.
This picture shows components of complete production line:

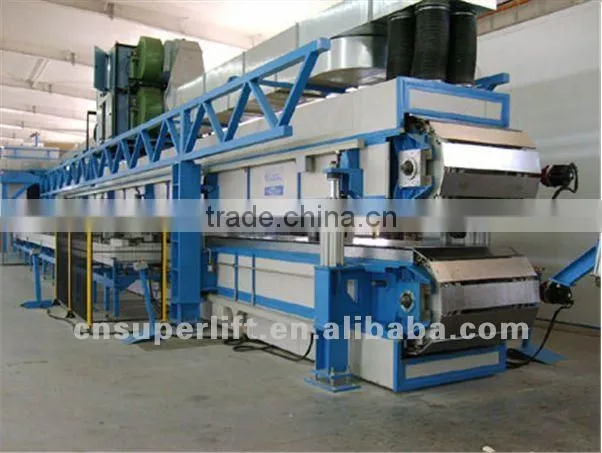

This is our equipment photo:Double belt Machine
Used for maturing and shaping of core material in lamination stated, effectively overcome expansibility that produced.
During polyurethane foaming, ensuring flat surface, uniform thickness and non-deformation.
Product features:
1. The driving of upper and lower pedrails adopted Variable-frequency vector technology, and assembled Germany
Siemens servo motors and Italy imports reducer. To make the upper and lower pedrails Moving synchronously and guarantee the panel quality.
2. Adopted electronic-controlled hydraulic cylinder and variable-frequency motor to adjust the distance Between upper and lower pedrails. The operation is safe and reliable, time-savine and labor -saving.
3. The pedrail is consisted of precision-machined chain planks that be made of anti-corrosive high Hardness alloy steel. The flatness precision of two adjacent pedrail plates can be up to ±0.02mm
4. The chain planks can be changed.
5. Side seal system adopted snap-in connection way (patent technology), make fixing and demounting of Side seal blocks more quickly and easily, saving a lot of labor. Besides, the width and height of tow side Of seal blocks can be realized automatically adjust. The controlling accurate of adjusting device can be Up to 0.5mm, operating flexibility, high degree of automation.
6. The length of the equipment could be 18m, 24m, 30m, 36m.
Working shop:Machine under production photo:
Technical parameter
Length of double belt machine |
18~ 36m |
Main motor |
2*3.8KW, Siemens motor |
The specification of producible sandwich panel |
Thickness :20~300mm Width:400-1250mm |
Rated operating speed |
0~15m/ min |
Upper belt lifting |
20 sets elevator control, and connect with a rod, to ensure synchronization |
Double belt conveyor plates material |
Low-alloy steel |
Production speed range |
0-12m/min |
Double belt conveyor plates pin shaft diameter |
φ40mm |
Pin shaft material |
Alloy steel |
Double belt conveyor plates precision flatness |
±0.1mm |
Synchronous lifting pillar |
φ80mm |
Lifting motor power |
4 Kw |
Working height |
1.2m |
Side slealing block |
30-250mm, can be customized |
Guide Material |
9CrSi After the heat treatment, grinding, molding |
Panel drawing

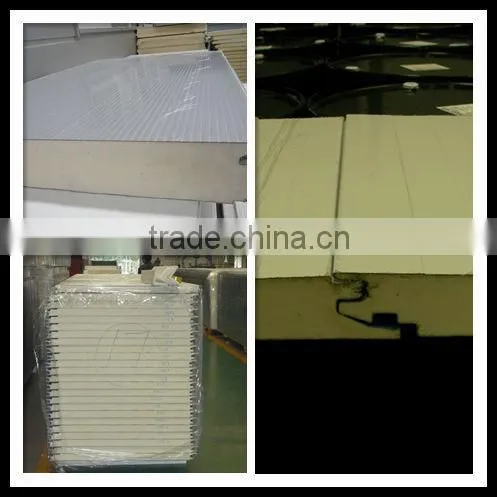

Panel show:
Factory overview
Welcome to view our factory video to know more about us:
/en/
You are welcome to e-mail me for more details!
