Specifications
1.Alibaba gold supplier's cement clinker conveyor equipment2.Stable operation
3.High capacity and efficiency
4.less leakage
1.operation status:Stable operation
2.Warranty:Wearing parts warrantly 1 years other 3 years
3.Assembly:send professionals to guide
4.certification:TUV ISO
5.Weigth:Different model
6.Assembly inclination: 0°-60º
--TECHNICAL PARAMETERS
Model |
Conveying capacity |
Nominal speed |
Trough width |
Chain pitch |
SCD630 |
120-170 |
0.3 |
630 |
250 |
SCD800 |
150-220 |
0.3 |
800 |
250 |
SCD1000 |
220-360 |
0.3 |
1000 |
250 |
SCD1400 |
300-480 |
0.3 |
1400 |
250 |
SCD1600 |
450-700 |
0.3 |
1600 |
250 |

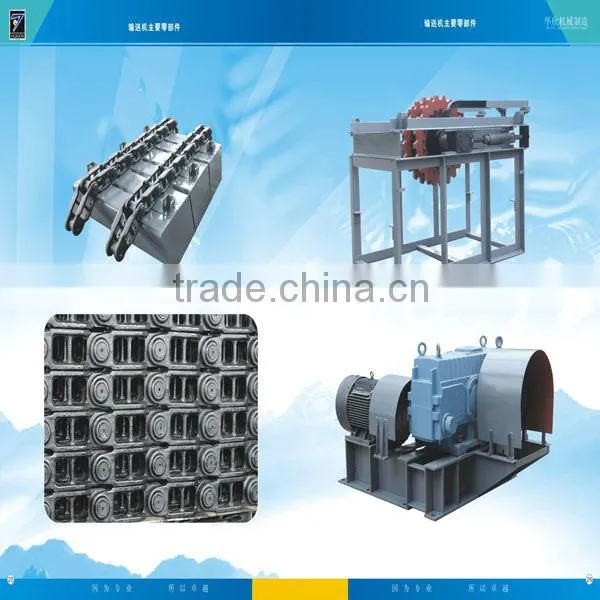

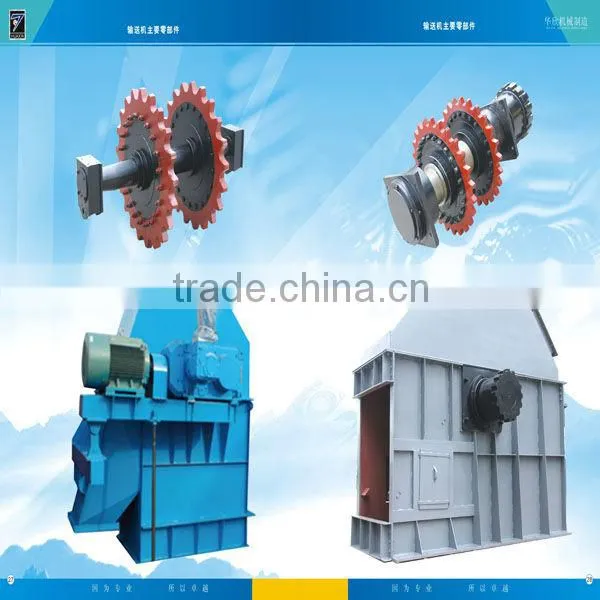

--Head device
For dust control. shell to the head set on the dust collector interface.Spare wheels for easy of maintenance and replacement.
divide into the ring gear and hub into two parts. Each tooth block in five sets and bolts with hub connections. So exchange to
avoid down below axle set that won the precious time for the production.
Wearing parts ring gear used raw materials 42SiMn.Each tooth block with chain roller contact surface must be quenching(intermediately frequency quenching) make sure strength and tenacity.
--tail device
In order to protect the chain and adjust the tail rear tension. Set the spring tensioning device. In order to prevent leakage
of blanking materials and dust fly. Tail set the special structure of the feed opening.

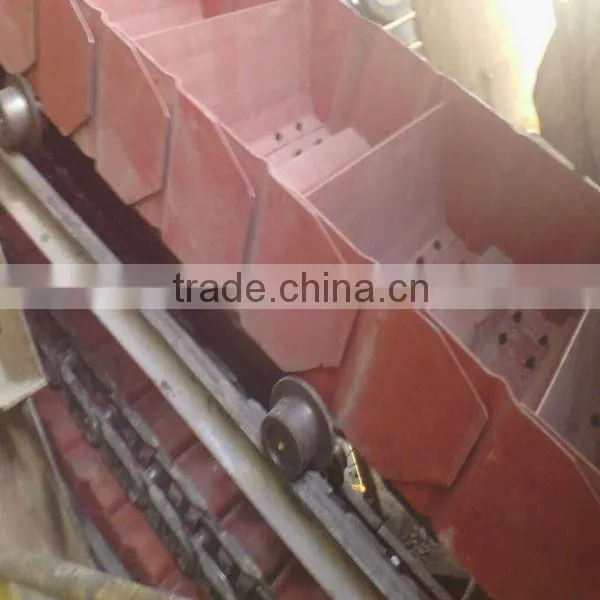

--circulation parts
1. suitable for horizontal and inclined conveying of granular materials, particle size is less than 200mm, the temperature is less than 250 degree
2. reasonable design, big mount of transportion, mount of transportio up to 463m³/h
3 transmission distance of up to 150m, the maximum lifting height 60m
4. conveyor for maximum angle of up to 60 degree
5. the traction chain is formed by forging chain plate, high strength and long service life
6. the hosting structure separate from your tractor, conveyor load is reasonable, stable operation
7. easy installation and maintenance, low running maintenance costs
8.Stable operation without deviation
--certification
