Specifications

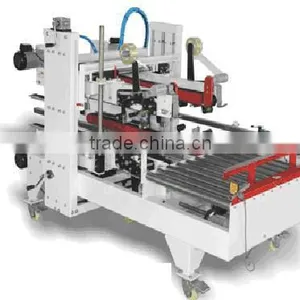

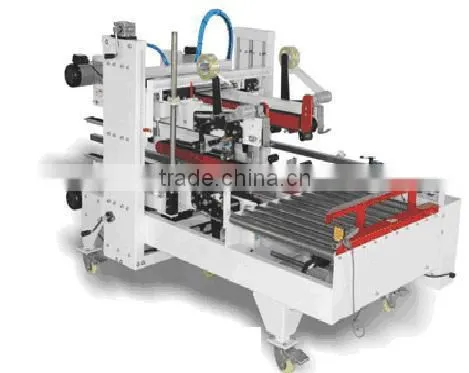

Carton SealerSDW-FG500“L” Corner—type Automatic Carton Sealer
Corner-type Full Automatic Carton Sealer
l The machine of this series need to form a complete set of "-" type sealing machine , the four side sealing effect like a shape ---"I" and Once Finished
l The performance of the taping device is precise and solid with smooth operation and long service life.
l It is acceptable to have the machine widened and heightened besides the standard model.
l The countertop height of standard machine is 600mm.
l To manufacture with advanced techniques, it is made from electric control parts, pneumatic control parts and specialized electric motors of imported brands.
“L” Corner—type Automatic Carton Sealer
l With turning and pushing carton mechanism
l To be equipped with a “-” type sealer at its front
l Manually adjust the sealing height and width
Technical parameters
MODEL |
SDW—FG500L |
Min. package size |
L320*W200*H200mm |
Max. package size |
L650*W500+H500mm |
Belt speed |
6—10cartons/min |
Machine dimension |
L1910*W1250*H1500mm |
Power supply |
1P 110V/220V 50/60HZ 1000W |
Air pressure |
6kgf/cm2, 100nl/min |
Apply tape |
48mm. 60mm,75mm |
G.W/N.W |
480KG /440KG |
