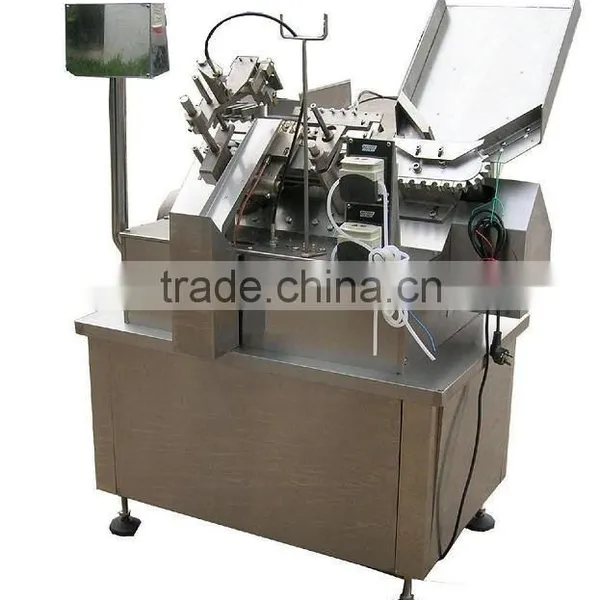

Ampoule filling and sealing machine, ABF -2B Type
Main Introduction:
The machine is a new generation of the ampoule drawing, filling and sealing combined equipment for injections .
It adopts the rectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,
the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can
be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .
It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .
It reduces the broken rate of the finished products of ampoules tremendously .
Technical parameters:
Model |
ABF-2B |
||
Specification |
1~2ml |
5~10ml |
20ml |
Output |
4000~4800pcs/H |
1680~2100pcs/H |
1280~1800pcs/H |
Power and voltage |
0.37kw , 220v/110v, |
||
Fuel consumption |
2-2.5m3/h(gas) |
||
Combustion-supporting Consumption |
0.7m3/h Oxygen 0.1MPa |
||
Outline Dimension(L*W*H) |
1300*700*1400mm |
||
Machine Weight(kg) |
180kg |
||
