Specifications
tablet pressGMP standard
sus304
IPT D tooling of EU or USA standard
CE

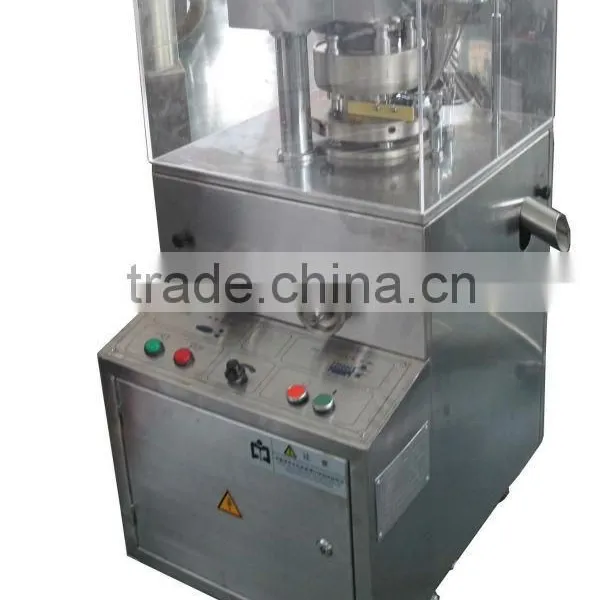

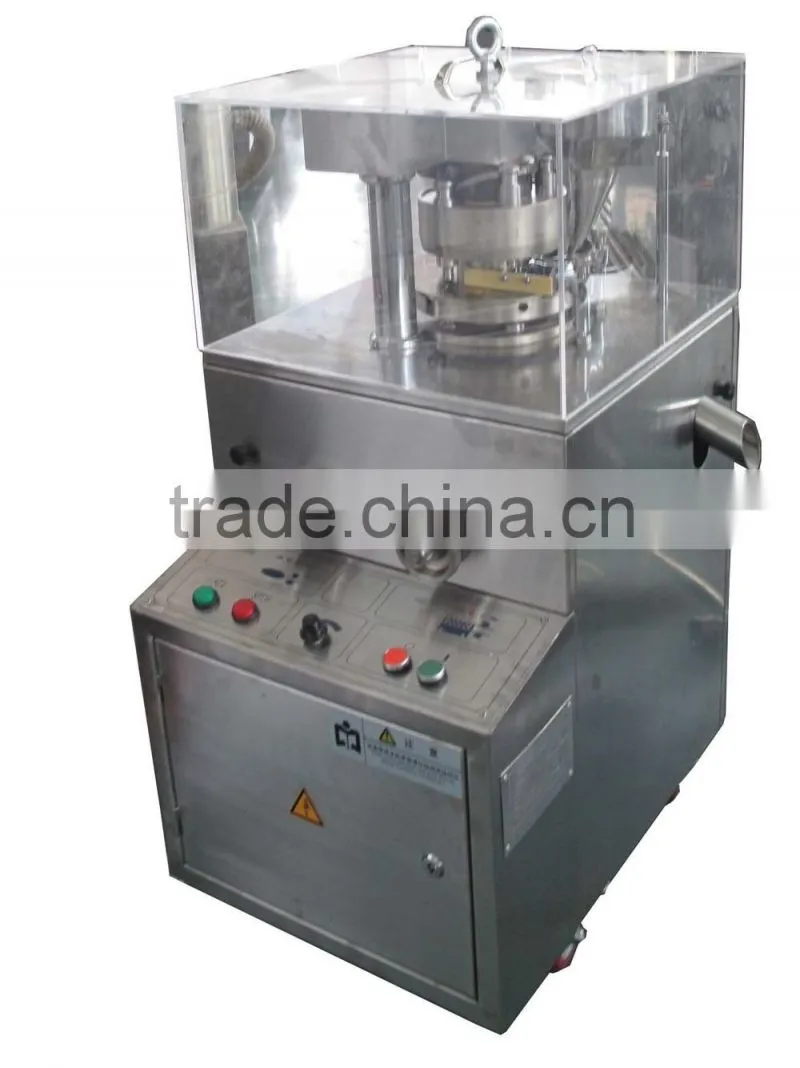

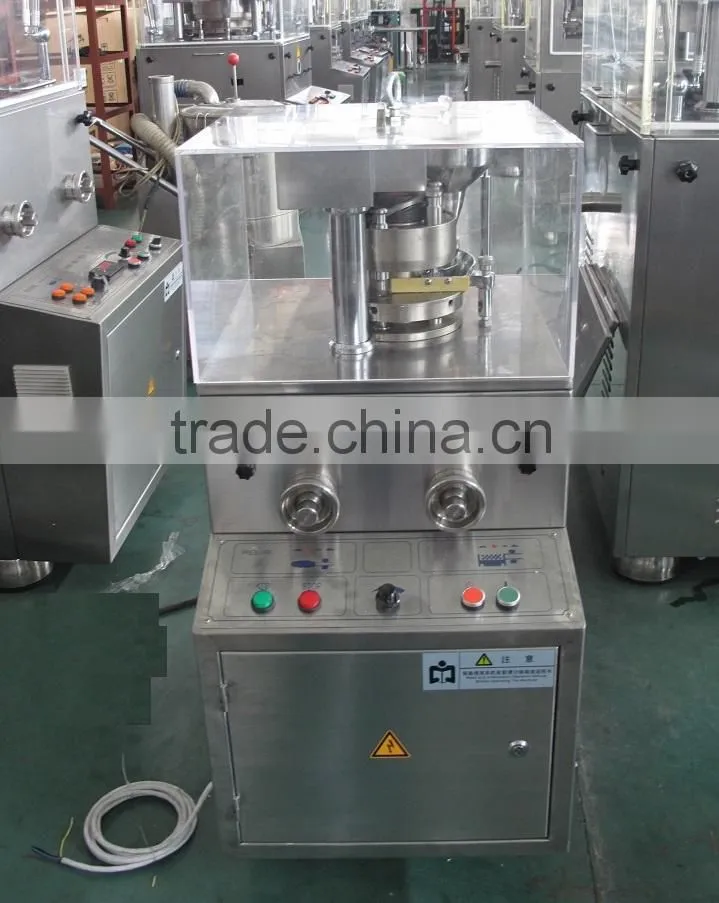

ZP-8-10D Rotary tablet press with IPT tool
Features:
This machine is a single-press type. The outside part of the machine is fully enclosed. It is up to GMP.
2. Install pre-pressure, main-pressure
3.Main shaft drive. The speed is adjusted by Frequency Conversion.
4.Advance turbine retard.
5.There are thrust shaft, lubricate shaft on turret
6.The numerical show
Show present main pressure(Max. pressure 60KN)
Show present tablet thickness
Show present filling
Show present pre-pressure roller seat
Show present pressure of exit tablets(max.10KN)
7.Touching type operation push button
tecting and reporting function
a)protecting and reporting for motor breakdown
b)protecting and reporting for exceed pressure
c)protecting and reporting for loading lower punches
d)emergency stopping function
Main Technical Specifications:
Dies |
ZP10D |
ZP-8D |
|
Station |
10 |
8 |
|
Max.main pressure |
60KN |
60KN |
|
Max pre-pressure KN |
10 |
10 |
|
Max tablet Dia .mm |
22MM |
22MM |
|
Max.tablet thickness |
8 |
8mm |
|
Max Filling depth(mm) |
20 |
20 |
|
Turn speed r/min |
8-20 |
8-20 |
|
Capacity pcs/h |
4800-12000 |
3800-8400 |
|
Overall size mm |
710*700*1680(L*W*H) |
||
Weight |
400KG |
||
