Product Description

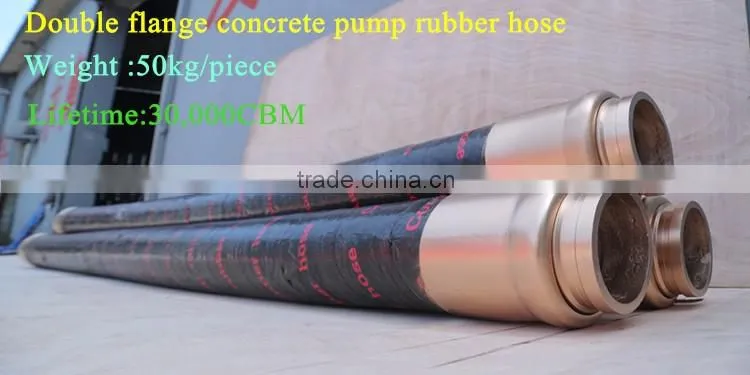

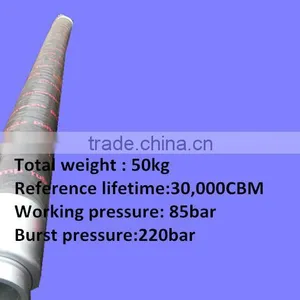

concrete pump rubber hose with 2 flanges :

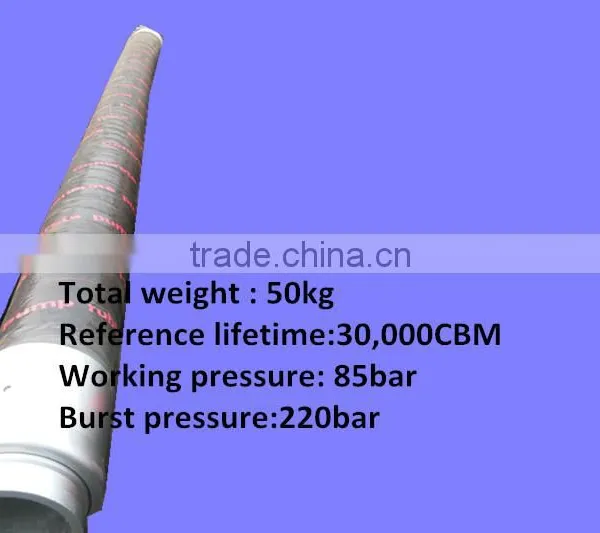

weight :50kg length:3m
working pressure:85BAR burst pressure :220BAR
reference lifetime:30,000CBM

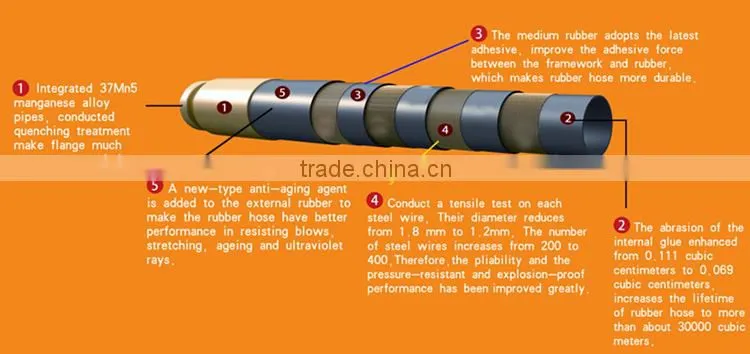

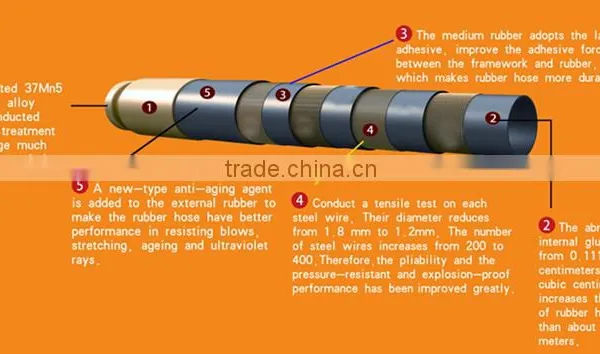

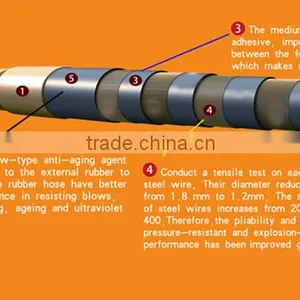

Five technical improvements have been made on concrete pump rubber hose.

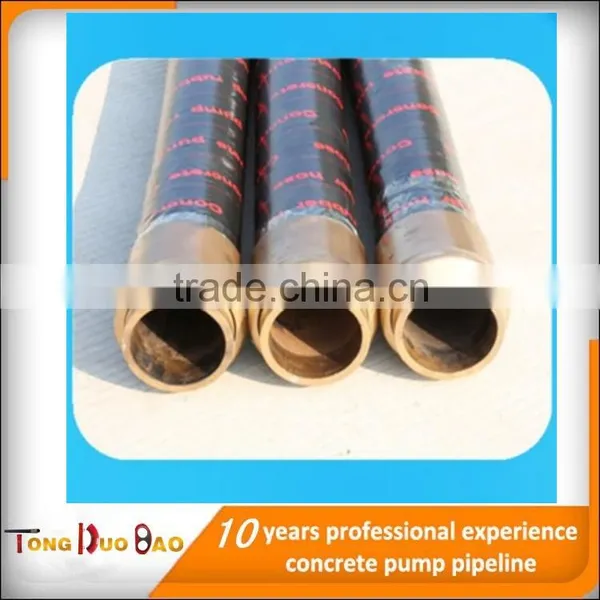

1,High-pressure Pipe heads are upgraded into seamlessly integrated 37Mn5 manganese alloy pipes,and conducted quenching treatment make them much more wear-resisting.
2,The internal rubber is made of quality natural rubber, new-type accelerants and green anti-aging agents by consulting the technical parameters of the rubber of airplane tires.
The abrasion of the internal glue enhanced from 0.111 cubic centimeters to 0.069 cubic centimeters, which increases the carrying amount of rubber hose to more than about 30 thousand cubic meters.
3,The medium rubber adopts the latest environmental-friendly adhesive in the world to reduce pollution and improve the adhesive force between the framework and rubber, which makes rubber pipes more durable.

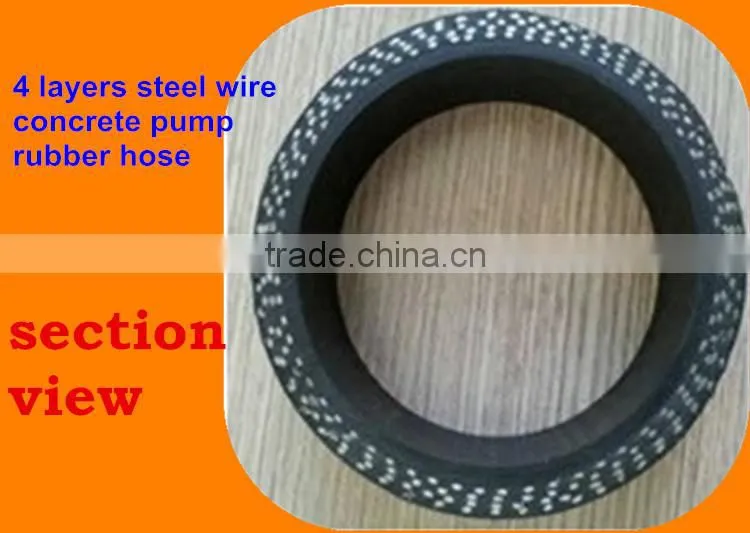

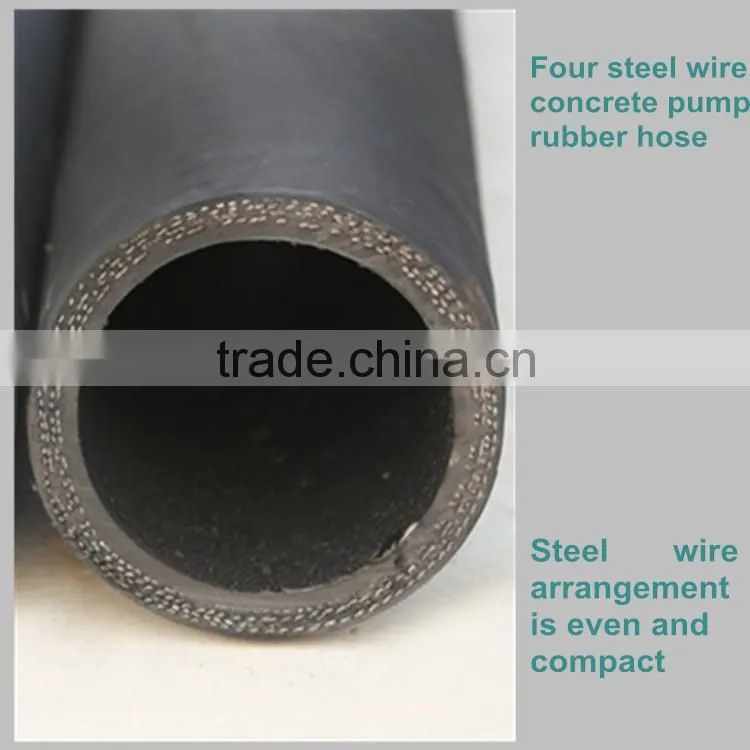

4,Conduct a tensile test on steel wire for each batch of rubber hose and conduct professional adjustments. The number of steel wires increases to 400 from 200. Their diameter reduces from 1.8 mm to 1.2mm. Therefore, the pliability of rubber hose is improved greatly. Experiments show that the pressure-resistant and explosion-proof performance of the rubber hose has been improved greatly.
5,A new-type anti-aging agent is added to the external rubber to make the rubber hose have better performance in resisting blows, stretching, aging and ultraviolet rays.
concrete pump rubber hose won the national patent

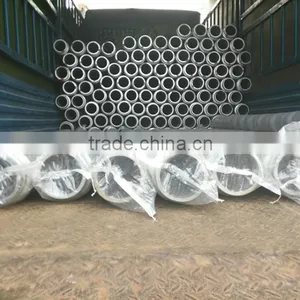

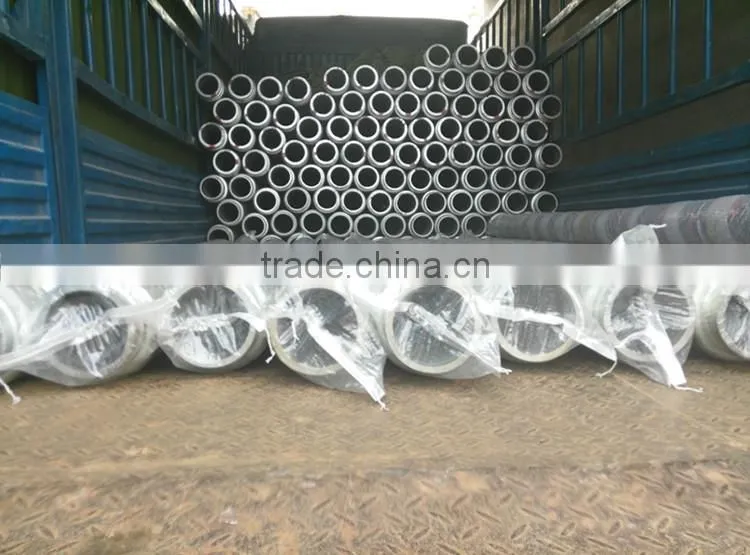

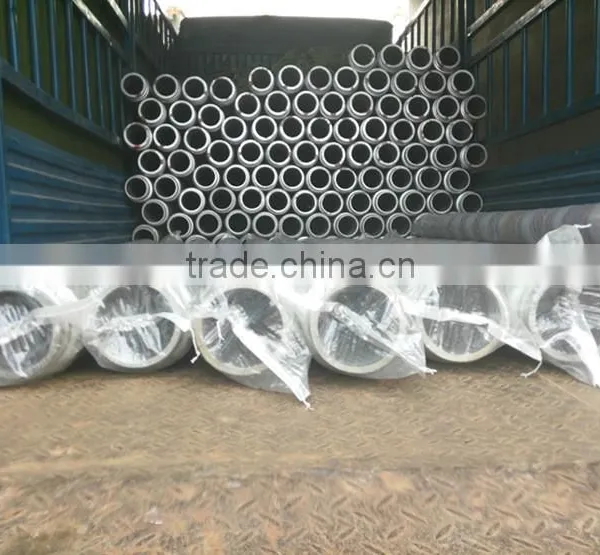

Packing:

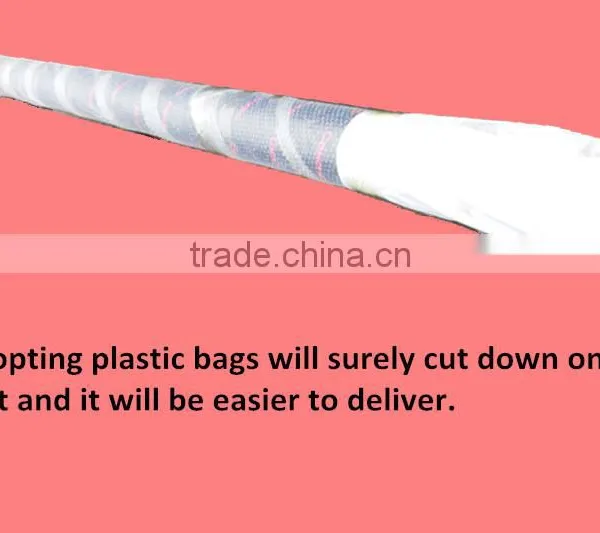

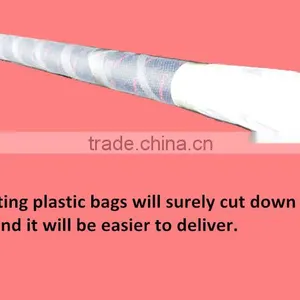

1.Wrapped by water proof poly-bag to protect the painting and flanges.
2.Wooden case.
3.Iron shelf .
4.seaworthy or according to customers’ requirements.
Shipping:
about 7-15 days after receiving the deposit.
1. we can supply the OEM service .
2. we can supply you the sample to be checked !

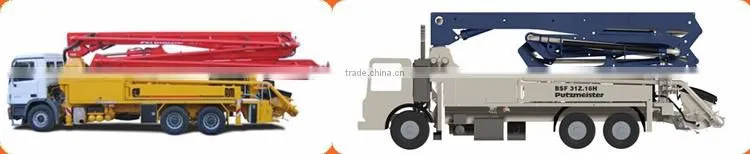

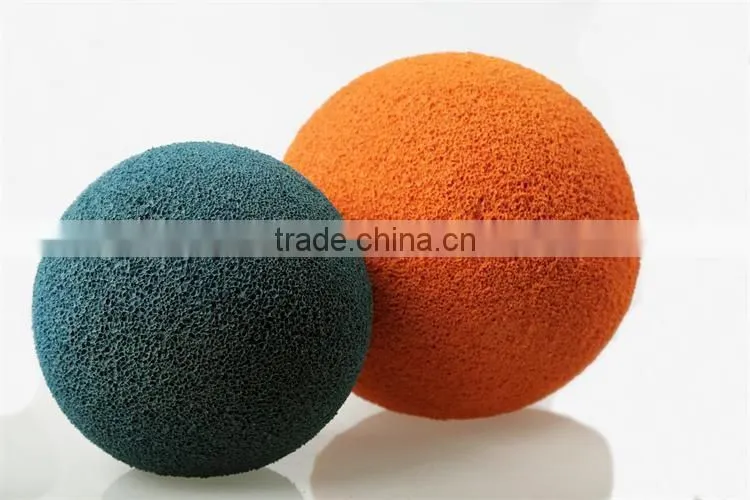

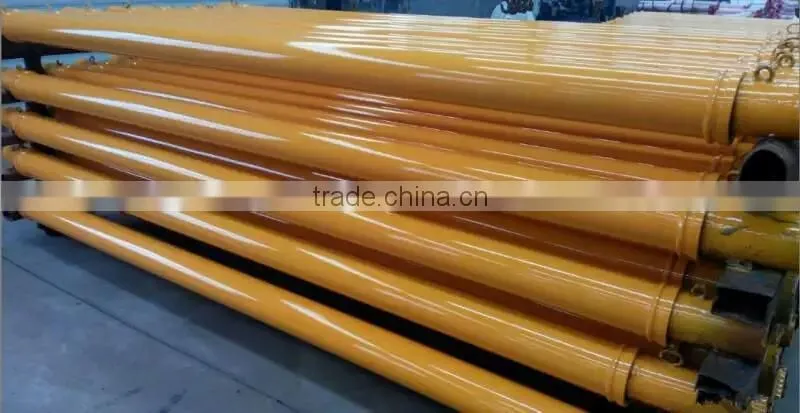

ShanDong Tongduobao Mechanical Equipment Co.,Ltd is located in Liaocheng city Shandong province China, with a wide range of products including wear plate,cutting ring, concrete pump clamp in casted and forged, concrete pump rubber hose, delivery pipe, elbow, piston,sponge ball,delivery cylinder etc, and all product are fitting to Putzmeister, Schwing, Zoomlion, Sany, Sermac, Cifa, Mitsubishi, Miigata,
IHI and Kyokuto...
Contact person : mikezhou
Tel: 0086 635 6183366
Mobile : 0086 18865122659
Whatsapp :+86 18865122659
Website :
Spare parts for concrete pump
