Smart Single hd Video Encoder Mini, and Iptv Encoder With Wifi COL7101HA

Name: Smart Single hd Video Encoder Mini, and Iptv Encoder With Wifi COL7101HA
Brand: Colable
SKU: 121883775

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Colable

Model Number:

COL7101HW

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Colable

Model Number COL7101HW

HDMI single channel mini encoder iptv system

Outline

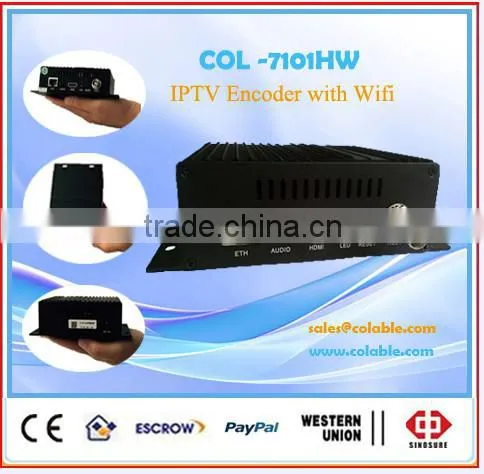

COL-7101H single channel HDMI IPTV encoder is most competitive cost and easy-to-use video streaming appliance

designed for professional video producers with Wifi . The product support 1 channel HDMI video capture generating dual

stream of h.264 encoding output and the AAC audio format. From any HDMI input source such as a camera or

switcher, it generates an H.264 encoded stream compliant with RTSP, HTTP, UDP and RTMP protocols. The product can be applied to education,

health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Features

1 channel HDMI input, support wifi
Up to 720P, 1080P HD video input
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
Supports MP3 and AAC audio format selection
Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
Support a click to restore the default configuration
Support STB decoding
Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
Support multiple equipments display at the same time on a computer
Support network directly connected, don’t need match HD collection card.
Providing RTSP/RTP/HTTP/RTMP/UDP protocol
Support H.264 Main Profile/H.264 High Profile and AAC audio.
Web control interface
Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
Power less than 24W, low power watts designing.
Support Network interface full-duplex mode 1000M

Technical Specification

Video	Input	1 channel HDMI , supports HDCP, Support Wifi
	Resolution	1920x1080/1280x720/1280x1024/1280x960/704x576
	Encoding	H.264/AVC High Profile Level 4.0(HMDI)
	Video Bitrate	0.8Mbps~12Mbps
	Bitrate mode	CBR/VBR
	GOP type	Adjustable
	Video preprocessing	De-interlacing, noise reduction, sharpening
Audio	Encoding	AAC,MP3
	Resample Rate	Adaptive output sample rate (option) 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
	Sampling	24 bit
	Bitrate	64Kb/s~384Kb/s
System	RJ45	1000M Ethernet port
	Protocol	HTTP,UDP,RTSP,RTMP,ONVIF
	Configuration interface	WEB interface
	Upgrade	Software upgrades can be carried out through a network
Environment	Dimensions	(W×D×H): 146mm x 100mm x 45mm
	Net Weight	0.5KG
	Temperature	0~45℃(work), -20~80℃(Storage)
	Power Requirements	12V / DC
	Power consumption	5W
