Help CenterMMDS Receiving Device,intergrated Antenna,MMDS Antenna Integrated With Down Converter COL-MPA02
Related Products
-
MMDS Device, MMDS DOWN CONVERTER/ LNB COL-MDCUS$ 1 - 1,999MOQ: 1 Unit -
UHF/VHF/MMDS/Ku Wireless Digital TV Transmitter /Digital TV TransmitterNegotiableMOQ: 1 Piece
-
Digital Mmds tv TransmitterNegotiableMOQ: 1 Piece
-
COL-MT Digital MMDS TransmitterNegotiableMOQ: 1 Piece
-
Digital MMDS Transmitter(outdoor Type)NegotiableMOQ: 1 Piece
Specifications

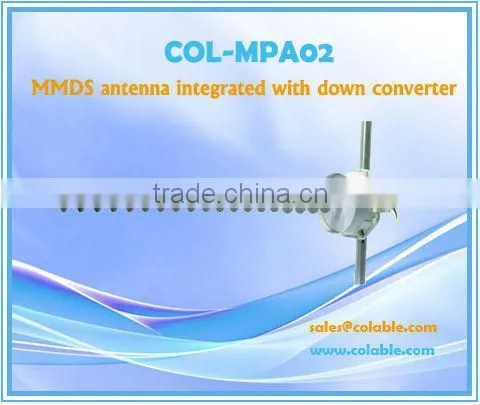

MMDS antenna integrated with down converter
Features
ü Integrated Gain : 50 dB
ü RF Input Frequency: 2500-2686MHz
ü RF Output Frequency: 222-408 MHz (decided by customers)
ü LO Frequency: 1838MHz(1950,2030,2278, 2286,2470,2908…more)
ü LO Frequency Stability: ±30KHz over temp
ü Noise Figure : 1.7dB(typ)
ü Gain Flatness : ±1.5dB@whole band,±0.25dB@6 MHz
ü Gain: 32±2 dB
ü Phase Noise: -85dBc/Hz@10 KHz
ü Lmage Rejection: 85dB
ü IF Rejection: -80dB
ü PCS Rejection: ≥100dBm
ü Radar Lmmunity: Optional
ü Output Connector: F-Type,75Ohm
ü Supply Voltage: +16 to +24VDC
ü Current: 225mA
ü Operating Temperature: -40°C to +70°C
ü Humidity: 100% weatherproof
ü Gain: 17dbi
ü Front-to-Back Ratio: 25db
ü Side Lobe Level: -12
ü 3 db Beamwidth: 24°
