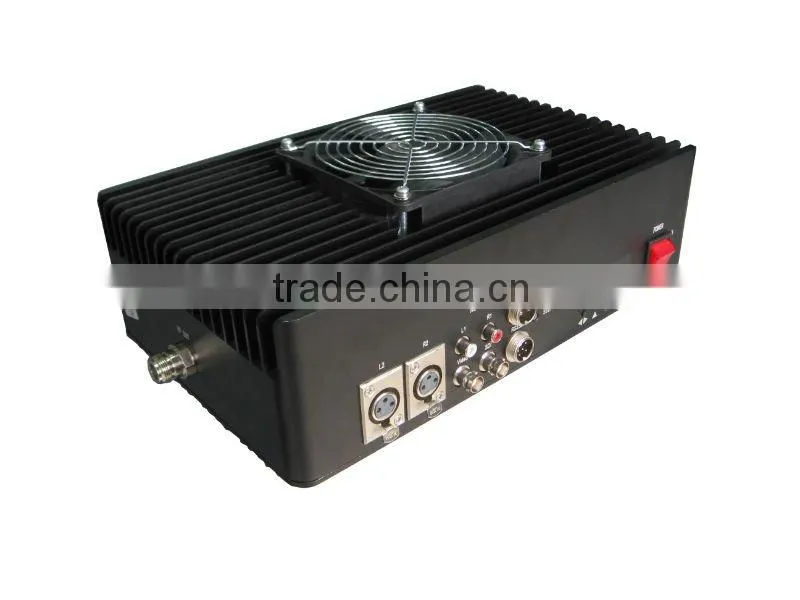

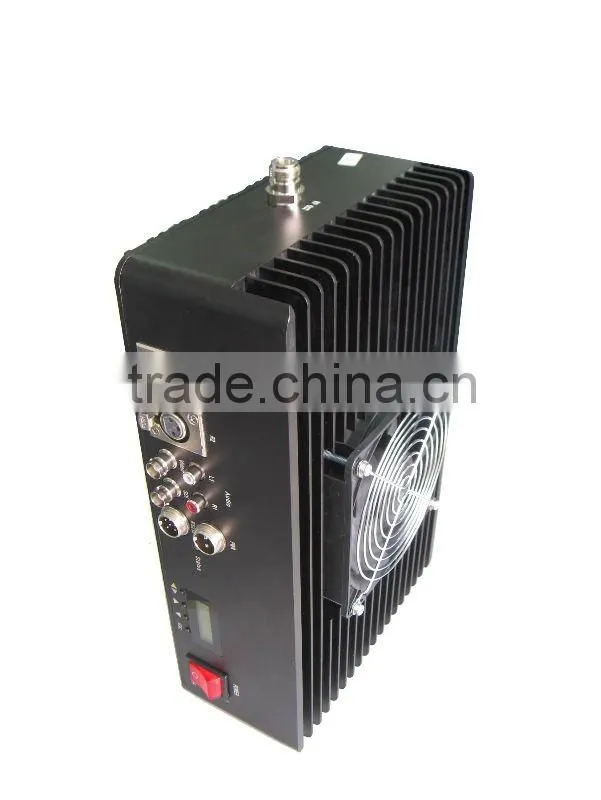

Help CenterMV2422 Broadcast Quality Wireless COFDM Video Transmitter
Related Products
-
MV2000TKMD/MV2025TKME Camera Mount Wireless COFDM Video TransmitterNegotiableMOQ: 1 Set -
MV2422 TKMF Broadcast Quality Wireless COFDM Video TransmitterNegotiableMOQ: 1 Set
-
MV2500 HD Video Quality Wireless COFDM Video SenderNegotiableMOQ: 2 Sets
-
MV2500 HD Video Quality Wireless COFDM Video ReceiverNegotiableMOQ: 2 Sets
-
MV2500 HD Video Quality Wireless COFDM Video ReceiverNegotiableMOQ: 2 Sets
Specifications
MV2422 Broadcast qualityWireless COFDM TransmitterMPEG-2/4:2:0(4:2:2) Video compression
Selectable TS rate:6M/12M
SDI,Compos
MV2422 Broadcasting level transmitter
Product Application and Features:
1 COFDM modulation, Stable transmission
2 MPEG-2 video compression, DVD video quality
3 Lithium battery for power supply
4 Mobile and NLOS(Non line-of-sight) transmission
5 Great security by encryption of AES 128 bit/ALLTECH Basic Scrambling
6 Low system latency
7 Modular design, compact structure, small cubage
8 adjustable frequency,LCD board displays the working frequency
9 Strong casing with built-in cooling plates, waterproof and shockproof
This product is a new kind of broadband wireless video equipment that adopts the latest technologies of COFDM modulation and MPEG-2 video compression that can complete video transmission in high-speed motion and NLOS (non line-of-sight) conditions. The diversity receiving technology greatly improves the receiving quality in all conditions. This transmitter is specially designed to meet all necessary transmission requirements of broadcasting standard .It has been widely used in many fields such as: Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support etc.
Transmitter Specification | |
Modulation |
COFDM |
DC Input |
DC12.5V~DC16.8V |
Working Current |
≤3.8A/DC12.5V |
RS232 Control Interface |
Standard RS232 level, 9600,8,N,1 |
RS232 Data Interface |
Standard RS232 level, supporting 1200~115200 |
Constellation |
QPSK,16QAM,64QAM (optional) |
FEC |
1/2,2/3,3/4,5/6, 7/8 (optional) |
Guard Interval |
1/32,1/16,1/8,1/4 (optional) |
Bandwidth |
6/7/8MHz , |
Video input |
SDI,Composite and S-Video input, |
Frequency |
325MHz-399MHz,400-500MHz (customized), |
560MHz-760MHz,760MHz-860MHz (customized), | |
1.0-1.4GHz (customized,2.3-2.5GHz (customized | |
Frequency is adjustable continuously | |
Encryption |
AES 128 bit / ALLTECH Basic scrambling |
RS232 serial port for configuration | |
Video TS |
6M |
12M | |
Carrier |
2K |
Power Output |
27-31dBm (adjustable) in 1dB step |
CNR |
≥-30dB @ 30dBm power output |
Audio |
Balanced audio input |
Video Input Signal |
|
CBER |
<2.0E-4 |
Video Compression |
MPEG-2 4:2:0 /4:2:2 |
Resolution |
720x576 @ 8MHz, |
Battery |
2.5 hours continuously working time |
Frame Weight |
1.5 kg |
Casing Protection |
dustproof, waterproof |
Video Rate |
15Mbps(MAX) |
Dimension |
195mm*125mm*80mm |
|
|
