Specifications
HD video compression (H.264/Level 4 standard), support 1080i/1080p,COFDM modulation and video bitrate up to 12MbpsHDMI HDSDI
HD video compression (H.264/Level 4 standard), support 1080i/1080p
COFDM modulation and video compression streaming bandwidth can be up to 12Mbps

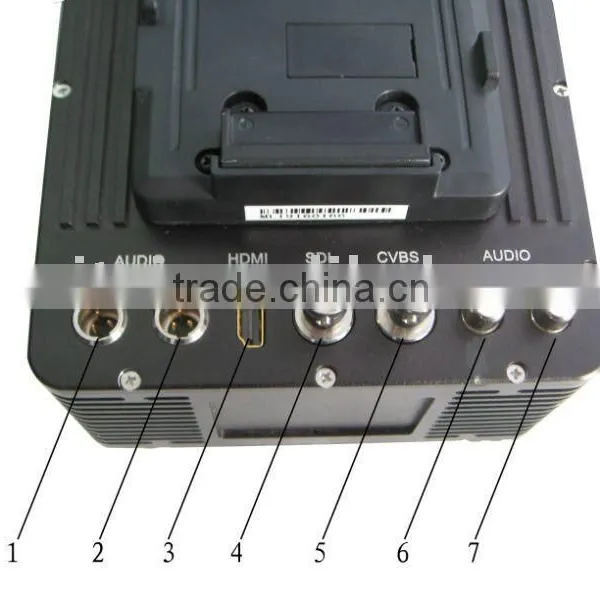

HDMI and HDSDI video interfaces standardly configurated and auto-switched
Balanced voice input
RF bandwidth 6/7/8MHz optional; working frequency display on the panel
voice postback function (Tele function) optionalPS function optional
Transmitter Specification
Working Frequency |
336-344MHZ(common frequency range) |
325MHz-399MHz,460-500MHz(customized), | |
560MHz-760MHz,760MHz-860MHz(customized) | |
1.0-1.4GHz(customized),2.3-2.5GHz(customized) | |
working frequency adjustable with LED display | |
RF Bandwidth |
1.5/2/6/7/8MHz Video Pixel: HD(1080i)8MHz; DVD(720×576)1.5/2MHz |
Power Output |
0.2-1W |
CNR |
≥-30dB 30dBm |
Modulation |
COFDM |
Constellation |
QPSK,16QAM,64QAM |
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
Carrier |
2K |
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
Video Amplitude |
Composite video:1~1.2Vp-p75Ω Digital video interface: HDMI(1080i) |
Video Type |
PAL/NTSC |
Video Compression |
H.264 High Level8MHZ/ Main profile1.5&2MHZ |
Video Index |
H.264/HD(1080I/1080P)8MHz: mainly for broadcasting application with HDMI H.264/SD(720*576)1.5/2MHZ: mainly for emergency control Video resolution: ≥320line2MHz with QPSK modulation Video resolution: ≥420line2MHz with 16QAM modulation |
Video Bitrates |
Bitrates for the encoder 0.5-12Mbps adjustable,or auto-matched |
Magnitude-frequency |
-0.5~1.5dB(0~4.8MHz) |
-4.0~1.5dB(5.5MHz) | |
Audio Input |
Left & Right Channel Stereo Unbalanced audio input/balanced audio input 5.1 stereo audio embedding with HDMI input |
RS232 Interface for Control |
Standard RS232 level,9600,data format 8,N,1 |
RS232 Interface for Data Trans. |
Standard RS232 level,support 1200-19200bps data transmission with adjustable bitrates |
Optional Function 1 |
GPS location postback function |
GPS Interface |
RF +5V interface, external antennas |
GPS Software for Display |
Connected with the receiver by serial port; GPS information of front responder or vehicle with longitude, latitude and altitude included can be displayed by KDVR3.0 software |
Optional Function 2 |
Duplex audio |
Audio Receiving Sensitivity |
≤-110dBm |
Audio Modulation |
GFSK |
Audio Decoding Rate |
4800-9600bps |
Frequency step |
150KHz |
Audio Output |
2.1Vp(open circuit) |
Working Voltage |
DC12V~DC16V |
Working Current |
≤3ADC12.5V |
Battery Capacity |
14.8V/10AH |
Protection |
Rainproof design |
Encryption |
AES 128 bit/ALLTECH Basic scrambling,; the third encryption module is available |
RS232 serial port setting | |
Dimension |
140mm*238mm*90mm |
Weight |
1.4Kg |
