Home > Lights & Lighting > LED Interior Lighting > LED Bulb Light > Samsung SMD 5630 LED PL Replacements, 4Pin LED G24 Light Bulb, LED G24 Bulb 3W/5W/7W/9W/13W/15W

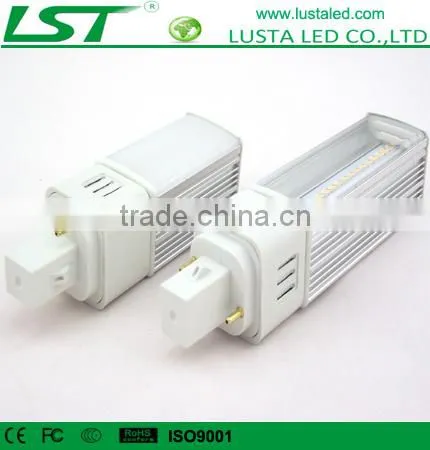

Samsung SMD 5630 LED PL Replacements, 4Pin LED G24 Light Bulb, LED G24 Bulb 3W/5W/7W/9W/13W/15W

Name: Samsung SMD 5630 LED PL Replacements, 4Pin LED G24 Light Bulb, LED G24 Bulb 3W/5W/7W/9W/13W/15W
Brand: Lusta LED
SKU: 121931107

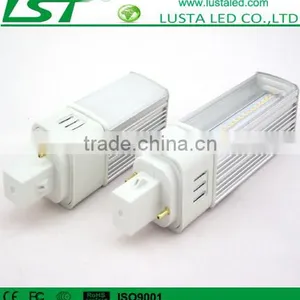

Samsung SMD 5630 LED PL Replacements, 4Pin LED G24 Light Bulb, LED G24 Bulb 3W/5W/7W/9W/13W/15W thumbnail-1

Samsung SMD 5630 LED PL Replacements, 4Pin LED G24 Light Bulb, LED G24 Bulb 3W/5W/7W/9W/13W/15W photo-1

US$ 3.9 - 12.9 MOQ: 50 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Samsung SMD 5630

Type:

Other, PL Bulb

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Guangzhou Lusta LED Lighting Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/Shenzhen/Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Samsung SMD 5630

Type Other, PL Bulb

Input Voltage(V) AC85-265V

Lamp Power(W) 9

Lamp Luminous Flux(lm) 765lm

Lamp Luminous Efficiency(lm/w) 85

Color Temperature(CCT) Other, Warm White/Natural White/Cold White

Working Temperature(℃) -30, 60

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

Certification CCC, CE, EMC, FCC, GS, LVD, SAA

Base Type Other, G23/G24/E27/E14

Place of Origin Guangdong, China

Brand Name Lusta LED

Model Number LST-PL-SH9 4Pin LED G24 Light Bulb

Specifications

4Pin LED G24 Light Bulb
1) Samsung SMD 5630 LED PL Replacements
2) G23/G24/E27/E14 Rotatable Base
3) 3W/5W/7W/9W/13W/15W

Samsung SMD 5630 LED PL Replacements, LED G24 3W/5W/7W/9W/13W/15W G24 LED Bulb, 4Pin LED G24 Light Bulb

We produce a great selection of LED PL Lights. Our LED PL Lights deliver superior efficacy of light and features high lumen maintenance and stable performance, with high quality powerful LED and unique thermal control technology.

1) Horizontal mount Samsung SMD 5630 LED Lamp
2) Rotating base allows light to project down
3) Aluminum and ABS anti-fire housing
4) Integrative LED design for heatsink and housing
5) Energy efficient and eco friendly
6) Contains no mercury or lead
7) No infrared or UV radiation
8) Viewing angle: 180 degrees
9) Operating temperature: -30 to +60 C
10) Generates very low heat
11) Over 35,000 hour lamp lifespan

12) G23/G24/E27/E14 base for your choice

Part Number	Power	Light Source	Voltage	CCT	Luminous Flux	Base Option	Beam Angle	Weight & Size
LST-PL-SH3	3 Watt	6 x SMD Samsung 5630	AC 85-265V	2700K-3500K 4000K-4500K 6000K-6500K	240lm±5%	G23, G24, E27, E14 (Rotatable base)	180°	75g 35 x 110 mm
LST-PL-SH5	5 Watt	10 x SMD Samsung 5630	AC 85-265V	2700K-3500K 4000K-4500K 6000K-6500K	425lm±5%	G23, G24, E27, E14 (Rotatable base)	180°	85g 35 x 121 mm
LST-PL-SH7	7 Watt	14 x SMD Samsung 5630	AC 85-265V	2700K-3500K 4000K-4500K 6000K-6500K	600lm±5%	G23, G24, E27, E14 (Rotatable base)	180°	100g 35 x 144 mm
LST-PL-SH9	9 Watt	18 x SMD Samsung 5630	AC 85-265V	2700K-3500K 4000K-4500K 6000K-6500K	765lm±5%	G23, G24, E27, E14 (Rotatable base)	180°	115g 35 x 154 mm
LST-PL-SH13	13 Watt	26 x SMD Samsung 5630	AC 85-265V	2700K-3500K 4000K-4500K 6000K-6500K	1150lm±5%	G23, G24, E27, E14 (Rotatable base)	180°	125g 35 x 174 mm
LST-PL-SH15	15 Watt	30 x SMD Samsung 5630	AC 85-265V	2700K-3500K 4000K-4500K 6000K-6500K	1275lm±5%	G23, G24, E27, E14 (Rotatable base)	180°	170g 35 x 185 mm

Our LED PL Light ranges include:

Samsung SMD 5630 Series - 3W, 5W, 7W, 9W, 13W, 15W. These models use the new Samsung 5630 SMD LED chip. This LED is extremely efficient and very suitable for lighting applications because of the very good color rendering index (CRI Ra85) and high light output. With 300° rotatable sockets of G23, G24, E27 and E14 that fix into existing sockets and not necessary to remove the ballasts or change the circuit inside the fixture. Clear Acrylic Lens or Diffuse Lens are optional.

SMD 5730 Series - 6W, 8W, 10W, 12W. These models use 5730 SMD LED chip. This LED is efficient and with high performace but low price. With 300° rotatable sockets of G23, G24, E27 that fix into existing sockets. Elegant design with diffuse lens for eye comfort. Dimmable option is aviable.

SMD 5050 Series - 5W, 6W, 7W, 8W, 9W, 10W, 11W, 12W, 13W. These models use 5050 SMD LED chip. This LED is quite efficient and with high performace but low price. With 300° rotatable sockets of G23, G24, E27 that fix into existing sockets. Clear Acrylic Lens or Diffuse Lens are optional. Dimmable option is aviable.

Application:

SMD Test - Semi-finished Product Test - Product Test:

High Temperature Aging Test - Aging Test - Integrating Sphere Test:

Q: What are the payment methods does Lusta LED accept at present?

You can pay by T/T in advance, Paypal and Western Union. Authority for payment must be given at the time of order. If there is a problem taking payment for all or part of your order we may contact you by email or by phone.

Q: What is the lead time after placing the order?

Usually, lead time for common orders is 5-7 working days while 10-12 working days for large amounts of goods. However, it would depend on our production line schedule and the complication of the items.

Q: What is the delivery and shipping?

Delivery will be made to the address specified when you complete the order. Usually, we send the shipments in EXW term. However, the terms of FOB is acceptable which depends on the preference of clients. We use Express (DHL, UPS, FedEx), Air Transportation and Sea Transportation to deliver our goods. Customers can choose alternative delivery methods.

Q: What is the replacement policy / guarantee?

We have a minimum 2 year replacement warranty for all products. For the majority of our LEDs the warranty is 3 years.

If you have a fault within the warranty period, please return the faulty item to us including a copy of your order/receipt/commercial invoice or at the least quoting your name and order number and we will send a replacement free of charge to you. In this case you have to pay to send the faulty item to us; we pay our postage costs to send the replacement. A more easier way is that you can provide evidence to show the faulty item, such as a series of photos with our item number, unabridged video clip, etc.

Please contact us for a quote or more information about our quality LED Lights, we are here to help!
