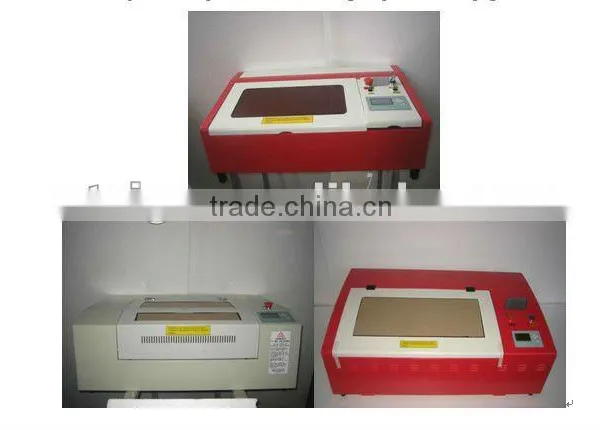

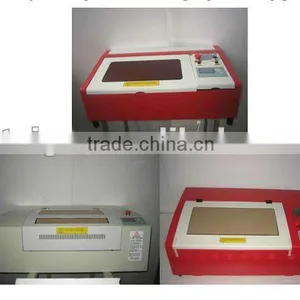

Artsign Laser Machine

Name: Artsign Laser Machine
Brand: ARTSIGN
SKU: 121933853

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

ARTSIGN

Model Number:

JSM3020lsct/JSM4030lsct/JSM5030lsct/JSM6030lsct

Contact Supplier Request Quote Chat Now

Jinan Artsign Science & Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name ARTSIGN

Model Number JSM3020lsct/JSM4030lsct/JSM5030lsct/JSM6030lsct

Specifications

Artsign Laser Machine
1.Work area
2.Standard laser power
3.Work table with up and down
4.Water flow sensor included

Standard Features:

This machine includes DSP offline control system, LCD keyboard, Red dot pointer, Air pump, Honey comb board, Double round rail, Water flow sensor(4030/5030/6030),Lasercut (compatible with coreldraw, autocad, win 7 32/64bits), USB port, Up and down, etc.

Model	JSM3020 lsct	JSM4030 lsct		JSM5030 lsct		JSM6030 lsct
Work area (mm)	300*200	400*300		500*300		600*300
Laser tube power	30W	40W/60W
Engraving speed	500mm/s
Cutting speed	100mm/s
Engraving depth of acrylic	1.2mm			1.5mm
Cutting depth of acrylic	4mm			10mm
Communication interface	USB
Work table	Honey comb board, Up and down
	Manual50mm	Electric 70mm
Minimum forming character	1*1mm
Maximum scanning precision	0.0254mm
Positioning precision	0.01mm
Power supply	220V (or 110V) +/-10% 50Hz (or 60Hz)
Drive mode	Step motor
Software included	Lasercut
Design software	Coreldraw, Autocad (compatible); Photoshop
Picture format supported	PLT, DXF, BMP, AI (direct); JPG, GIF, PGN, TIF (conversion)
Operation system	Windows 2000/XP/VISTA/7
Engrave curve surface	Less than 1.5mm
Cooler	Water pump
Life time of laser tube	1000-1500 hours (30/40W) 3000-4000 hours (60W)
Certificate	CE, FDA
Net weight (kg)	35		55		65		80
Gross weight (kg)	65		90		105		135
Machine size (mm)	800500250		1100600330		1100600330		1500600330
Packing size (mm)	1000700550		1270790580		1270790580		1670790580
Accessories: 1.Exhaust fan and tube 2.Power cable 3.Water pump 4.Operation VCD 5.Keys 6.Caution label 7.Self-adhesive paper for adjusting the light path 8.Honey comb board 9.Focus ruler 10.Air pump with air hose and dia6mm air mouth 11.Knob for up and down work table 12.Lasercut software dog
Optional: 1.Cabinet or Stand 2.Water chiller (40W above): water cooling and protection system to prolong the use life time of laser tube 3.EFR laser tube 60W (4030/5030/6030), life time is 3000-4000 hours, warranty is 3 months 4.Color optional: Red, Grey, Blue, White, Orange, Black, Green, etc.
Consumable parts (Recommended): 1.Extra laser tube (30W,70CM) (40W,1M) (60W,1.2M) 2.Extra 1 lens and 3 mirrors (Lens D18mm, F50.8mm. Mirror D20mm)
Warranty: 1. 24 months for machine 2. 6 months for external equipment, such as water pump, air pump, exhaust fan, etc. 3. 3 months for laser tube, lens and mirror 4. Manual and video with machine teach the client how to setup, test laser, align laser, operate and maintain, also supply the specifications setting for speed and power to engrave or cut on various material 5. Life long tech support by email and web camera
Application: Sign making, Advertisement and decoration, Nameplates, Awards, Badges, Tags, Artworks making, Mould making, Architectural model, Fabric (Jean, etc.) process, Leather process, Notary seals, Rubber stamps, Souvenirs, etc.
Proper material: Acrylic, Crystal, Bamboo, Cloth, Fabric, Denim, Fiberglass, Glass, Leather, Marble, Granite, Plastic, Paper, Rubber, Wood, MDF, Anodized aluminum, Coated metal, Stainless steel (LMM), etc.
