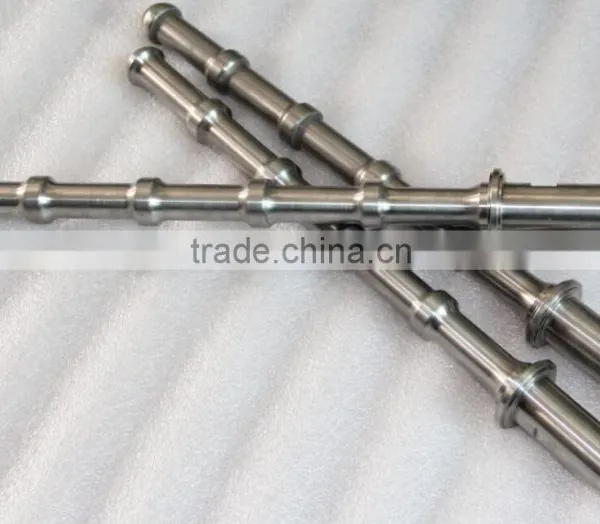

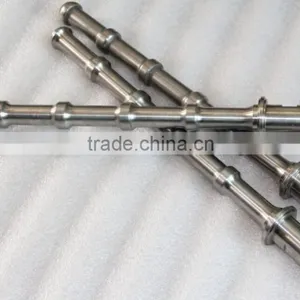

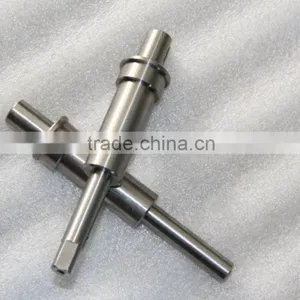

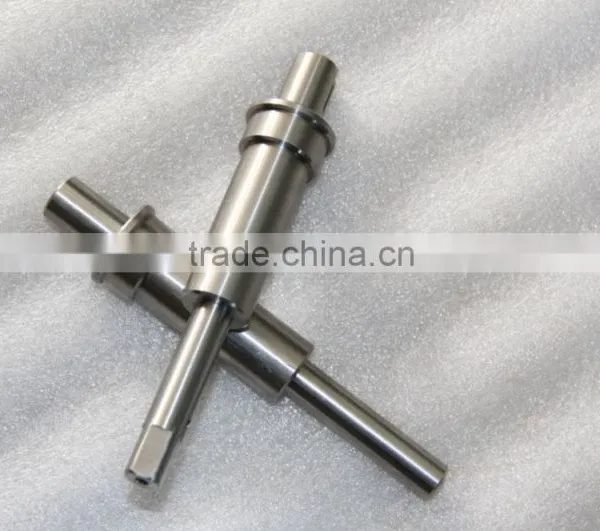

Medical Application and GR9 GR7 GR5 GR2 Grade Ti-3Al-8V-6Cr-4Mo-4Zr shafts bar
Welcome to
----------------------------------
Baoji BoYang metal material Co.,LTD
The company is located in Baoji, the Titanium City of China. The company is mainly engaged in rare metals processing and machining. And it is also a special manufacturer of nonferrous material sales, products and equipment manufacturing and new products development. We have the followings as our major products and
it is with the design and manufacture at the core, such as shaped pieces, titanium plate, titanium bar, titanium wire GR1 GR2 GR3 GR5 GR7 GR9. Moreover, the company has titanium material, titanium standard parts, titanium composite material and other complete product line of nonferrous metal products. The products are widely used in chemical, metallurgy, petroleum, textile, medicine, light industry, environmental protection, sports, mining, marine and other fields. Relying on the strong industry resources, powerful scientific research, the ability to manufacture and a complete industrial chain of titanium industrial manufacturing of “the Titanium City of China", we are keep improving our sales service with our honesty and sincerity, and will do so. We warmly welcome both new and old clients to visit and negotiate with us.
------------------------------------------
Titanium bar / titanium rod/titanium pole
Sepc TA0-TA21, TB1-TB16 TC1-TC20 Gr1-Gr12
Size: 8-350 X3000 mm
Standard ASTM AMS ASME MIL JIS GB/T2965-96 GB/T13810-1997
Medical titanium rods
Model Gr1, Gr2, Gr3, Gr5
Manufacturing technology hot forging + lathe (polishing )
Condition of delivery R, M
Diameter(mm) Φ 3-Φ 200× 500-4000
Executable standards GB/T13810 ASTM F67 ASTM F136
Titanium rods
Model GR1, GR2, GR7, GR12
Manufacturing technology hot forging + lathe (polishing )
Condition of delivery R M
Diameter(mm) 4-200
Executable standards ASTM B348 GB/T2965 AMS
Applications: Medical, aerospace, military, petrochemical engineering, metallurgy, electroplating, vacuuming metalling, sports and so on.
| item | Titanium bar,titanium rod |
| Standard | GB/T2965-2007,JIS H4650-2001,ASTM B348-06,DIN17862-93,ASTM F136, AMS4928,GB/T13810,Q/BS5331-91,etc |
| Diameter | 1-350mm |
| Length | 50-6000mm |
| Surface | Black,polish,brush,hair line,etc |
| Package | Standard export package ,by wooden box ,or as required |
| Application | Titanium bar Is mainly used in machinery and equipment, electroplating equipment, medical and all kinds of precision parts and other industries |
| MOQ | 100Kg |
| Export to | Iran,India,Russia,Spain,Egypt,Korea,Thailand,Holland,Brazil,USA,Saudi Arabia, South Korea,Singapore,Indonesia,Kuwait,Canada,Chile,Viet Nam,etc |
| Contact | If you have any question,pls feel free to contact me . We are sure your inquiry and requirements will get prompt attention. |
| Element | Composition | |||||||||
| Gr1 | Gr2 | Gr3 | Gr4 | Gr5 | Gr6 | Gr7 | Gr9 | Gr11 | Gr12 | |
| C% | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 |
| H% | ≤0.015 | ≤0.013 | ≤0.015 | ≤0.015 | ≤0.05 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 |
| Fe% | ≤0.20 | ≤0.25 | ≤0.30 | ≤0.50 | ≤0.40 | ≤0.50 | ≤0.30 | ≤0.25 | ≤0.20 | ≤0.30 |
| N% | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 |
| 0% | ≤0.18 | ≤0.25 | ≤0.35 | ≤0.40 | ≤0.20 | ≤0.20 | ≤0.25 | ≤0.15 | ≤0.18 | ≤0.25 |
| Ti% | balance | balance | balance | blance | balance | balance | balance | balance | balance | balance |
| Al% | / | / | / | / | 5.5-6.75 | 4.0-6.0 | / | / | / | / |
| V% | / | / | / | / | 3.5-4.5 | / | / | / | / | / |
Mechanical Property of Titanium Bar
Grade |
Tensile Strength , min |
Yield Strength,0.2% Offset |
Elongation,min,% |
Reduction of Area , min , % |
|||
Ksi |
Mpa |
Ksi |
Mpa |
|
|
||
Grade 1 |
35 |
240 |
20 |
138 |
24 |
30 |
|
Grade 2 |
50 |
345 |
40 |
275 |
20 |
30 |
|
Grade 3 |
65 |
450 |
55 |
380 |
18 |
30 |
|
Grade 4 |
80 |
550 |
70 |
483 |
15 |
25 |
|
Grade 5 |
130 |
895 |
120 |
828 |
10 |
25 |
|
Grade 7 |
50 |
345 |
40 |
275 |
20 |
30 |
|
Grade 9 |
90 |
620 |
70 |
483 |
15 |
25 |
|
Grade 12 |
70 |
483 |
50 |
345 |
18 |
25 |
|
------------------------------------------------------------------
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Baoji City, Shaanxi Province, China, about 2 hours train from Xi'an.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. Hanz people always attach great importance to quality controlling from
the very beginning to the very end.
The first is the raw materials and strict control of spindle the second production process control, the third is the inspection factory.
Why Choose US
-------------------------------------------------
1.Provide free samples.
2.Fast delivery.
3.Guarantee quality.
4.High response rates.
5.Long time maintenance service the product.
6.Terrific after-sales service :24 hours around and 12 month warranty
Wish you success in your work!
=====================================
Anya
Baoji Bo Yang Metal Materials Co., Ltd
Address: Qing Anbao Industurial Park,BaoTi Rord,Gaoxin District,Baoji City,shaanxi,China
Fax :0917-3380810
Phone :+86-133 8917 6136
Skype : ningjing177
Web:
=====================================
Medical Application and GR9 GR7 GR5 GR2 Grade Ti-3Al-8V-6Cr-4Mo-4Zr shafts bar
