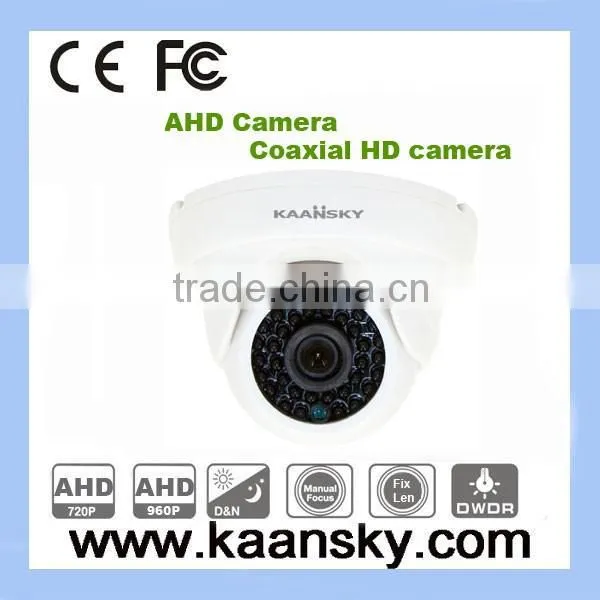

Indoor AHD Cameras, Shenzhen DOME hd Ahd Camera

Name: Indoor AHD Cameras, Shenzhen DOME hd Ahd Camera
Brand: Kaansky
SKU: 122024583

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Kaansky

Model Number:

KST-D76-AHD1002

Shenzhen Kaansky Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Kaansky

Model Number KST-D76-AHD1002

Type Other, Analog Camera, HD Coaxial Analog camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Other, Coaxial hd analog camera

indoor AHD dome cameras, shenzhen DOME hd ahd camera

Features:

High speed, long distance real-time transmission

Day/Night(ICR), AWB, AGC, BLC, 2D/3D-DNR

over-coaxial-cable analog HD video transmission

720P/960P/1080P Resolution

IR Distance 20M
Adopting 24PCs *5mm IR Leds
Len:3.6mm
Dual glass, no IR diffusion and fog
IP66, outdoor installation

Model	D76-AHD1001	D76-AHD1002	D76-AHD1301
Image Sensor	1/4"CMOS 1.0 Megapixel	1/4"CMOS 1.0 Megapixel	1/3"CMOS 1.3 Megapixel
Effective Pixels	1280(H)×720(V)	1280(H)×720(V)	1280(H)×960(V)
Video Frame Rate	PAL: 25fps/720P NTSC: 30fps/720P	PAL: 25fps/720P NTSC: 30fps/720P	PAL: 25fps/960P NTSC: 30fps/960P
Electronic Shutter	Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec
Synchronization	Internal
Mini. Illumination	0.001Lux/F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDAHD high definition video output
Max. IR LEDs Length	15-20m, Smart IR
IR LEDs	f5X24PCS
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D/3D-NR
Lens	3.6MM
General
Transmission Distance	Over 500m via 75-3 coaxial cable
Power Supply	DC12V±10%
Ingress Protection	IP66
Power Consumption	Max 4W
Working Environment	-30°C~+60°C / Less than 95%RH
Dimensions(W×D×H)	115x115x90mm
Weight	0.5kg
