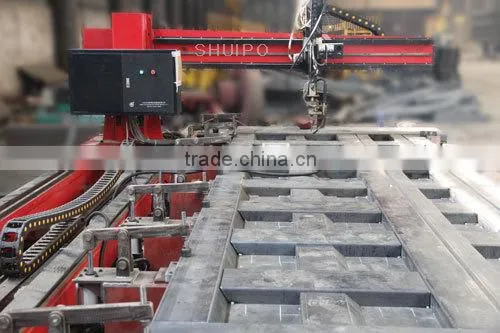

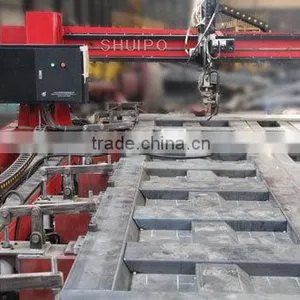

CNC Tipper Panel Welding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Girth Welding Machine for Irregular Shaped TankNegotiableMOQ: 1 Set -
Automatic Girth Welding Machine for Irregular Shaped Tank/Shuipo Tank Welding MachineNegotiableMOQ: 1 Set
-
Flat Butt Automatic Welding MachineNegotiableMOQ: 1 Set
-
Automatic Corrugated Plate Welding MachineNegotiableMOQ: 1 Set
-
Longitudinal Seam Welding MachineNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Specifications
Quality Assurance| Main Technical Parameters(cantilever type) | ||
| No. | Items | Parameters |
| 1 | specifications and models | XBH-I |
| 2 | overall dimension of equipment | 8000*3500*2000(L*W*H) |
| 3 | guide rail length | 8000mm |
| 4 | active welding length | 7000mm(can be produced according to customer's requirements) |
| 5 | effective horizontal travel | 1800mm(can be produced according to customer's requirements) |
| 6 | vertical travel of moving object | 120mm(can be produced according to customer's requirements) |
| 7 | vertical driving mode | gear,rack,servo motor,planetary gearbox |
| 8 | horizontal driving mode | gear,rack,servo motor,planetary gearbox |
| 9 | control mode of welding torch | spot laser monitoring |
| 10 | welding mode | MIG welding |
| Note: We design the technical parameters according to the workpiece plan of customer, and then manufacture the products. | ||
