Selling rotary drum dryer price ,chicken manure rotary dryer/ organic fertilizer rotary dryer/drying equipment
Brief description of drying machine
The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
The working principle
1. Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.
2. Materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together.
3. Materials go to the lower side by gravity when the barrel is rotating.
4. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.
Application
Rotary dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. Rotary dryer are widely used in building materials,metallurgy, and chemical industry. Rotary dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube,the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
Production line : We supply burner, belt conveyor, screw conveyor, rotary dryer, cyclone dust filter, pulse dust filter, bucket elevator. This is the main machine for a complete rotary dryer production line
Heating source:you can use coal, gas, electricity, oil and wind power to heat the dryer machine.
Main technical parameter:
Specs(m) |
Productive capacity(t/h) |
Revolution(r/min) |
Motor power(Kw) |
Install angle(°) |
Finished moisture |
ø1.0x5.0 |
0.5-1.2 |
0.6-6 |
4 |
3 ~ 5 |
≤ 1.5% |
ø1.2x6-10 |
1.5-3 |
0.6-6 |
5.5 |
3 ~ 5 |
≤ 1.5% |
ø1.5x12-18 |
3-5.5 |
0.6-6 |
15 |
3 ~ 5 |
≤ 1.5% |
ø1.8x12-18 |
5-6.5 |
0.6-6 |
18.5 |
3 ~ 5 |
≤ 1.5% |
ø2.2x12-22 |
7-12 |
0.6-6 |
22 |
3 ~ 5 |
≤ 1.5% |
ø2.4x15-20 |
9-15 |
0.6-6 |
30 |
3 ~ 5 |
≤ 1.5% |
ø3.0x25 |
16 |
0.6-6 |
55 |
3 ~ 5 |
≤ 1.5% |
Type |
Direct heat cocurrent |
Direct heat cocurrent |
Direct heat countercurrent |
Direct heat countercurrent |
Complex heat |
Complex heat |
Material name |
Mineral |
HP vesicant |
Blast furance slag |
Ammonium sulfate |
Phosphate |
coal |
Input capacity(kg/h) |
1000 |
466 |
15000 |
20000 |
12000 |
5000 |
Initial moisture(%) |
30 |
13 |
6 |
1.5 |
5 |
6.5 |
Finial moisture(%) |
15 |
0.3 |
1 |
0.1 |
0.1 |
0.1 |
Particle size(mm) |
6.5 |
0.05 |
4.7 |
0.5-1.7 |
0.5 |
5 |
Bulking thickness(kg/m3) |
770 |
800 |
1890 |
1100 |
1500 |
750 |
Hot air quantity(kg/h) |
3900 |
5400 |
10750 |
9800 |
6500 |
16000 |
Inlet air temperature(oC) |
600 |
165 |
500 |
180 |
650 |
570 |
Outlet air temperture(oC) |
|
42 |
100 |
70 |
80 |
75 |
Heating way |
Coal gas |
Steam+electric |
Heavy oil |
Coal |
Heavy oil |
Heavy oil |
Coefficient of charge |
|
6.3 |
7 |
7.5 |
7.8 |
18 |
Rotate speed(rpm) |
4 |
4 |
3.5 |
3 |
4 |
2 |
Inclination angle |
0.04 |
0.005 |
0.03 |
0.05 |
0.05 |
0.043 |
Quantity of stirring-up rake |
12 |
24 |
12 |
22 |
Inner tank outside 8 |
6 |
Dryer diameter(m) |
2.0 |
1.5 |
2 |
2.3 |
2 |
2.4 |
Dryer length(m) |
20 |
12 |
17 |
15 |
10 |
16 |
Driving power(kw) |
22 |
7.5 |
15 |
11 |
11 |
15 |

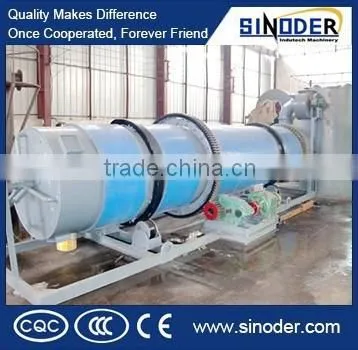

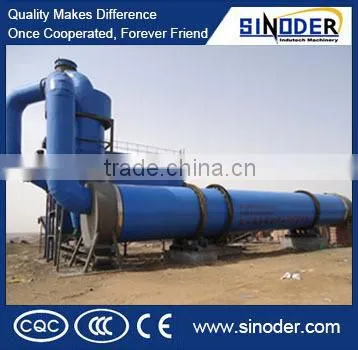

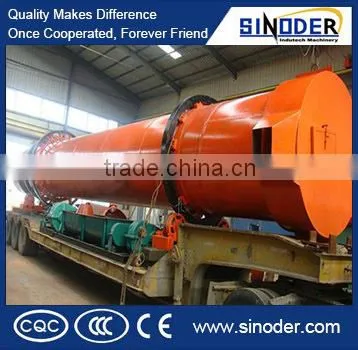

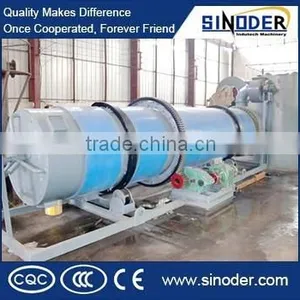

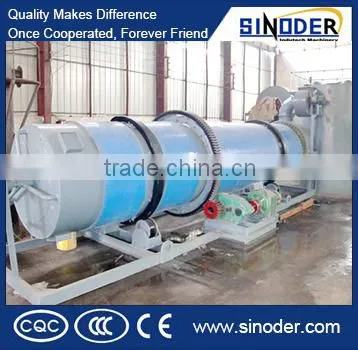

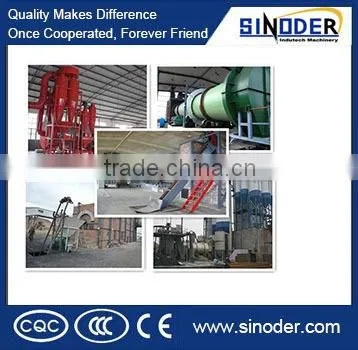

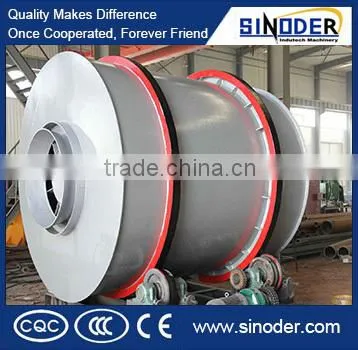

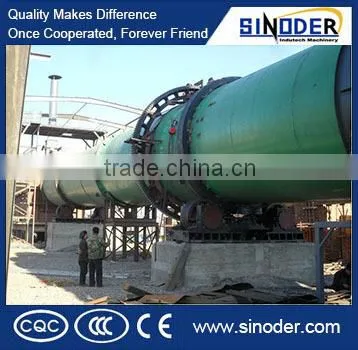

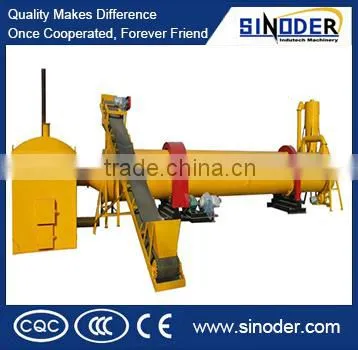

Picture of drying machine
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
