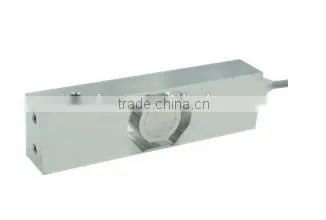

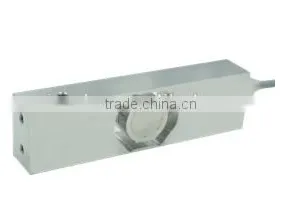

T 704 load cell,single load cell ,single weighting sensor with 10kg,20kg,50g,100kg
Description of single load cell : T704
Made of Stainless Steel,Strong stability
Used in various automated stamping applications,IP68 protection
Mainly used for Food and pharmaceutical industry and industrial measuring system
Main technical parameter :T704
Specifications |
Technique |
Capacity |
10,20,50,100kg |
Accuracy class |
C3 |
Rated output |
2.0±10%mV/V |
Zero balance |
±5%F.S. |
Non-linearity |
0.0166%F.S. |
Hysteresis |
0.0166%F.S. |
Repeatability |
0.018%F.S. |
Creep(30min) |
0.0166%F.S. |
Temp.effect on output |
0.0175%F.S./10℃ |
Temp.effect on zero |
0.0125%F.S./10℃ |
Input impedance |
390±5Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
5V |
Maximum excitation |
12V |
Compensated temp range |
-10~40℃ |
Operation temp range |
-10~50℃ |
Safe overload |
150%F.S. |
Ultimate overload |
300%F.S. |
Cable size |
Φ5.4×1500mm |
Weight approx. |
0.5kg |
Material |
Stainless Steel |
IP Class |
IP68 |
Max.platform size |
500mm×400mm |
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
We sell load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system .electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
