LOW COST ZX6350C SMALL Milling Drilling Machine :
Feature of Universal Milling Machine:
1.Rectangular table guideways with high stability.
2.Hardened and ground table surface.
3.Headstock swivels ±45°,vertical milling spindle auto–feeding.
4.Automatic feeds on X,Y axes,motorized lifting and lowering of table on axis.
For the specification of the Milling Drilling Machine ZX6350Z ,pls refer to the following table:
Specification of LOW COST ZX6350C SMALL Milling Drilling Machine:
Model |
ZX6350Z |
ZX6350C |
|
Max. drilling machine |
50mm |
50mm |
|
Max. horizontal milling |
100mm |
100mm |
|
Max. vertical milling |
25mm |
25mm |
|
Max. tapping dia. |
M16 |
M16 |
|
Max. boring dai. |
120mm |
120mm |
|
Spindle taper |
ISO40 |
ISO30/ISO40/R8 |
|
Spindle speed |
Vertical |
60-1500r.p.m 8steps |
115-1750r.p.m 8steps |
Horizontal |
40-1300r.p.m 12steps |
40-1300r.p.m 12steps |
|
Spindle travel |
120 |
120 |
|
Automatic spindle feed |
0.08,0.15,0.25 |
— |
|
Table size |
1000×280/1120×280mm |
1000×280/1120×280mm |
|
Table travel |
600×260mm |
600×260mm |
|
Motor power |
Vertical |
1.5kw |
0.85/1.5kw |
Horizontal |
2.2kw |
1.5/2.2kw |
|
N./G.W |
1200/1350kg |
1200/1350kg |
|

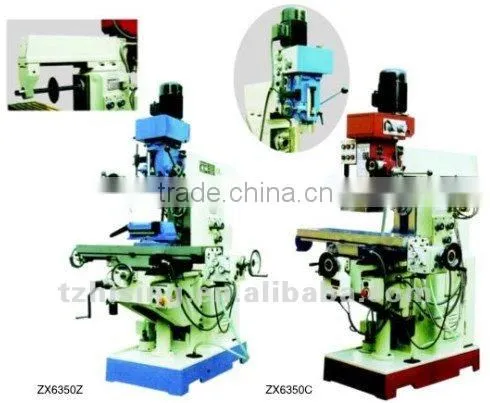

PHOTO OF LOW COST ZX6350C SMALL Milling Drilling Machine:
