Universal Swivel Head Milling Machine

Name: Universal Swivel Head Milling Machine
Brand: TZHISING
SKU: 122085909

US$ 8,240 - 8,900 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number XL6236

Type Universal

CNC or Not Normal

Voltage Customer Requirement

Power(W) 4kw

Dimension(L*W*H) 1800X1800X2200MM

Weight 2300kg

Certification ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

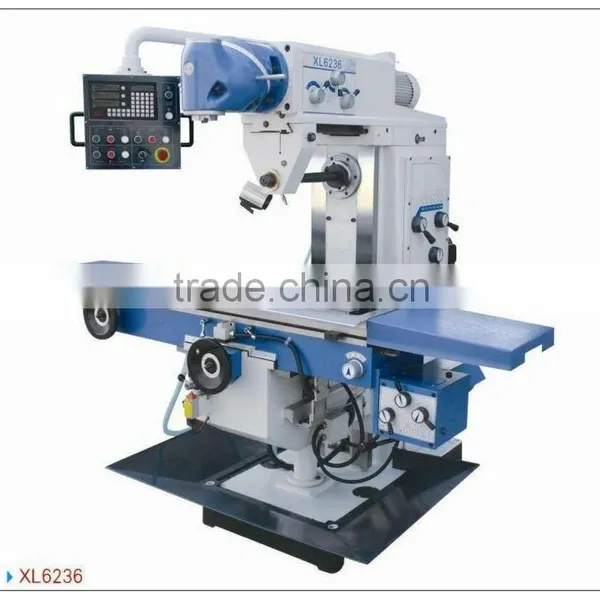

Specification of Universal Swivel Head Milling Machine XL6236):

SPECIFICATION		XL6236
Spindle nose taper		7:24 ISO40(V)
		7:24 ISO50(H)
Distance from spindle center line to column surface		350-850 mm
Distance from spindle nose to worktable		210-710mm
Distance from center line to worktable		0-500mm
Distance from spindle center line to arm		175mm
Spindle speed range		11steps 35-1600r/min(V)
		12steps 60-1800r/min(H)
Worktable size		1250mm×360mm
Worktable travel	Longitudinal	1000mm
	Cross	320mm
	Vertical	500mm
Worktable longitudinal/cross power feed		8steps 15-370mm/min
		Rapid:540mm/min
Worktable elevating power feed		590mm/min
Worktable “T”slot	Number	3
	Width	18mm
	Distance	80mm
Main motor		2.2kw(V) 4kw(H)
Worktable power feed motor		750w
Worktable elevating motor		1.1kw
Motor of cooling pumps		90w
Speed of cooling pumps		25L/min
Overall dimension(L×W×H)		2220×1790×2040mm
Net weight		2400kg
