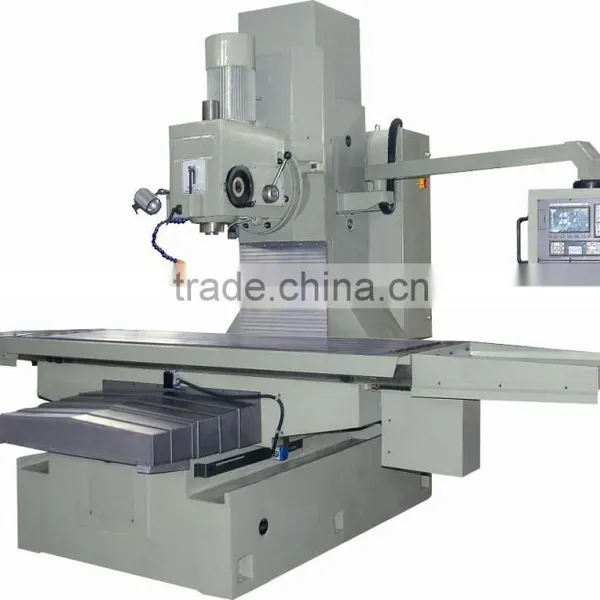

XK1860A Fresadoras CNC With Big Milling Table

Name: XK1860A Fresadoras CNC With Big Milling Table
Brand: TZHISING
SKU: 122086403

US$ 1 - 23,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT SHANGHAI PORT TIANJIN PORT GUANGZHOU PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number XK1860A

Type Vertical

CNC or Not Normal

Voltage 380V/220V/415V

Power(W) 11KW frequency conversion motor

Dimension(L*W*H) 3800*2750*2850mm

Weight 6800KG

Certification CE ISO9001

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Main Features of Fresadoras CNC XK1860A:

high precision cast iron, guideway and working mesa after super audio quenching to HRC48-52 degrees,

Table size:600X2400MM

X/Y/Z axis travel:1800X600X500MM

milling head motor: 11KW Frequency conversion motor

BRAND OF CONTROLER CAN BE SELECTED,

OEM services provided

Voltage can be specially ordered.

Color can be specially ordered.

Main Specifications of Fresadoras CNC XK1860A:

Model	Unit	XK1860A
Table size	mm	2400X600
Table travel	mm	1800X600X500
Max. Workpiece weight	kg	1000
T-solts(No./width/pitch)		5/20/105
Max. Drilling DIA.	mm	125
Max. Vertical milling DIA.	mm	32
Spindle taper		NT50
Spindle speed/range	rpm	40-1600RPM
3 AXIS motor	n/m	15
Distance between spindle axis and guideway	mm	650
Positioning accuracy	mm	±0.01/300
Main motor	kw	11(frequency conversion)
Contral systerm		FANUC,KND ETC.
Net weight	kg	6800
Machine size	mm	380027502850
