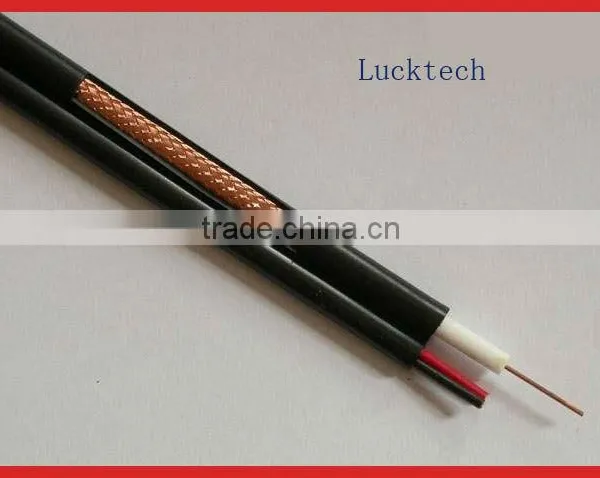

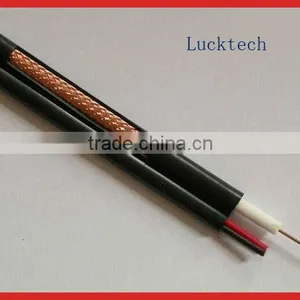

Help CenterRg59 Siamese Cable
Related Products
-
7*0.16TC PE Insulation RG174/U Coaxial CableUS$ 20 - 40MOQ: 100 Rolls -
0.58CCS PE Insulation RG59B/U Coaxial CableUS$ 20 - 40MOQ: 100 Rolls
-
0.65CCS FPE Insulation RG59/U Coaxial CableUS$ 20 - 40MOQ: 100 Rolls
-
19*0.18TC PE Insulation RG58C/U Coaxial CableUS$ 20 - 40MOQ: 100 Rolls
-
1.02CCS FPE Insulation RG6/U Coaxial CableUS$ 20 - 40MOQ: 100 Rolls
Specifications
1,RG59+2C2,different braiding avaible
3,UL approved
rg59 siamese cable specifications:
1)0.80mm BC or CCS+Foam or solid PE+braid+jacket+DC POWER(red and black)
2)OEM order is welcome
Specifications:
BC: Bare Copper
TC: Tinned Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminium C:Cores
1)RG59+2C
RG59:0.81mm CCS/BC Conductor +3.65mm Solid/Foam PE+BC/TC Braiding +6.1mm PVC Jacket
2C/18AWG power cable:2C*24*0.20mm BC Conductor + 2.17mm PVC Insulation + 0.63mm PVC Jacket
2) Customers' specifications are wellcomed.
Note:
1) Center conductor: TC , BC and CCS available, CCA;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil and Messenger are available;
3) Braiding wire: AL, BC and TC available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant , UV, or UL available.
Application:
For audio and power transmission
Power Cable:
1) VDE/KEMA Flexible Cord
2) Light Duty PVC Jacket Flexible Cord
3) Ordinary Duty PVC Jacket Flexible Cord
4) Wire For Internal Wiring Of Equipment
