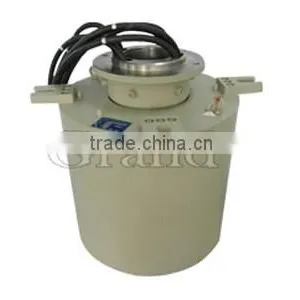

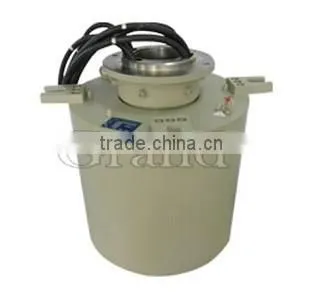

Special Slip Ring Rotary Joint : Center Collector Rings
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hangzhou Grand Technology
Model Number:
Center Collector Ring
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Center Collector Slip Rings Slip RingUS$ 100 - 200MOQ: 1 Unit -
Split Electrical Swivel Connectors Easy to Assemble for CustomersUS$ 30 - 200MOQ: 1 Piece
-
ID40mm 20rings Pancake Slip RingUS$ 5 - 300MOQ: 1 Piece
-
High Quality OEM Split Collecting RingUS$ 5 - 300MOQ: 1 Piece
-
Customized Large Through Bore Slip Ring in Open Brush TypeUS$ 5 - 300MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Hangzhou Grand Technology
Model Number
Center Collector Ring
| Electrical Parameters | |
| Circuit | 4 |
| Rated Current | 500A/rings |
| Rated Voltage | 0-500VAC |
| Insulation Resistance | ≥1000MΩ/500VDC |
| Dielectric Strength | 1000VAC@50Hz,60s |
| Contact Material | Precious Metals |
| Electrical Noise | ≤100mΩ |
| Machinery Technology Parameter | |
| Operating Speed | 0-100rpm |
| Structure Material | Q235-A& Engineering Plastic |
| Working Temperature | -20℃~+80℃ |
| IP Rating | IP54 |

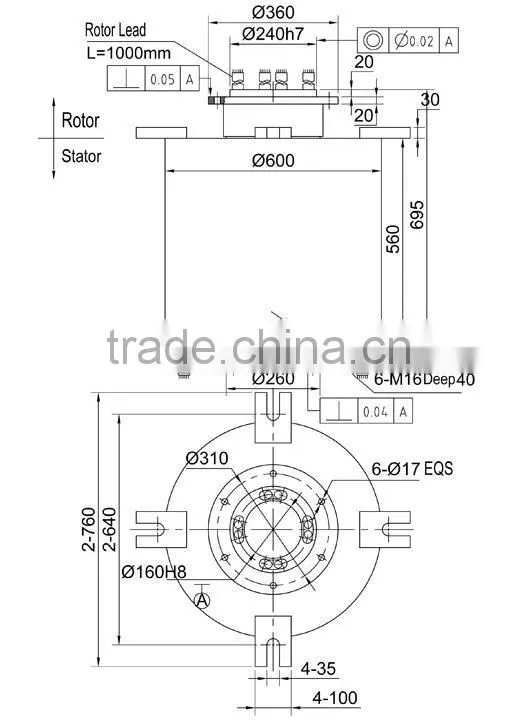

Outline dimesion unit
