Specifications
slip ringConvenient to assembly
High performa slip ring
Strict quality control system
Excellent post-sales
slip ring

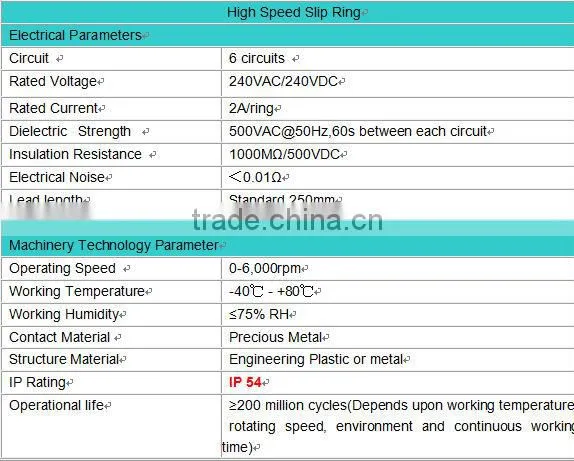

High Speed Rotating Slip Ring
Precision ball bearings and the patented fiber brush design allow operation up to 6,000 rpm. Fiber brush technology offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris
Option
No. of circuits
Operation speed, current &voltage
Flange mounting
Connector
Housing material
Inner diameter
Housing color
Position of wire outlet
Protection level (dust and water)
Signal, power and data transmitted or combination transmitted
Pack in carton or wooden case
BY DHL, FedEx, UPS or TNT.......
Customized Slip Ring
We strive to meet the needs of our customers. If an assembly from our standard line does not fit your requirements, our R&D team will work with you to design a slip ring to meet your exact demands.
Grand customized slip rings would reach below special requirements:
Current capabilities from nanoamps up to 1,000Amps
Voltage capabilities from microvolts up to 3KV

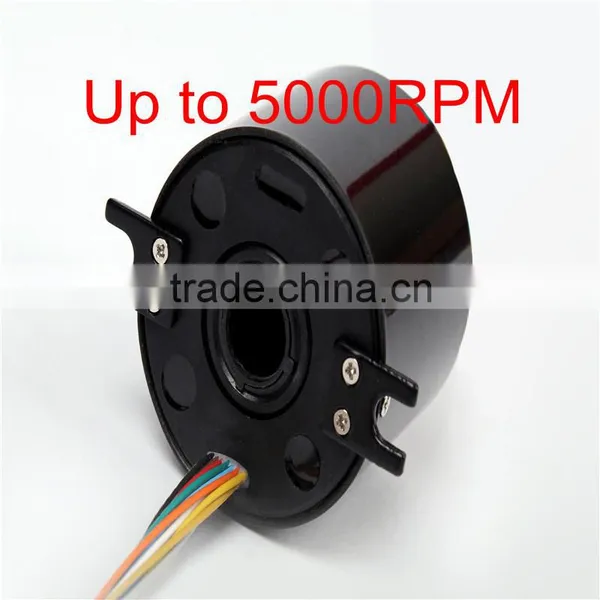

High speed up to 5,000 rpm
High temperature up to 400°C Low temperature up to -60°C(separate slip rings up to -150°C) Long life up to 200,000,000cycles 200million
Sealing up to IP67@1Mpa . Digital data transfer up to 600 Mbits/s Big bore size up to 1,000mm Multi-way up to 500 ways
Combine with electrical, signal, gas and liquid or fiber optical transmission.
Please provide us below information, we will provide the transmission solution according to your demands:
No. of Circuit (Power & Signal)
Signal details if transfer signal Rated Current & Voltage per circuit Working Speed Working Temperature Operating Environment The way of Connecting Dimension if have limitation Protection Level
Application
